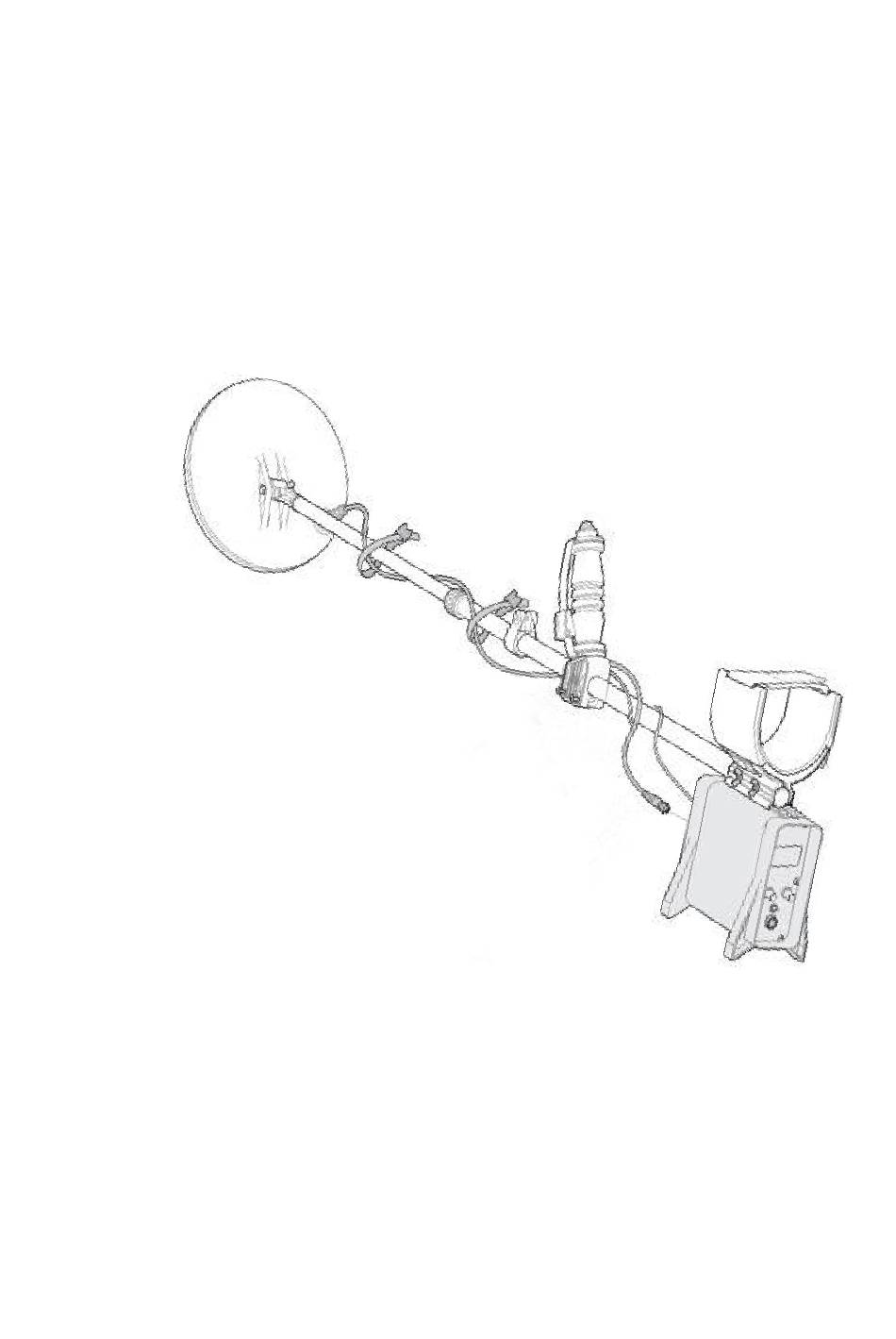

- Page 1 Underground Gold Detector Instruction Manual Model：MCD-5000B Befo re using th e product,Please read manual carefully.
-
Page 2: Table Of Contents
Catalog Catalog… … … … … … … … … … … … … … … … … … … … 1 Product Instruction… … … … … … … … … … … … … … … 2 Main Feature … … … … … … … … … … … … … … … … … 2 List of Parts…... -
Page 3: Product Instruction
Thank you for purchasing the product!With an amazing range of features and functions the MCD-5000B is not only superior to its predecessor.the high performance MCD-5000B is capable of finding more gold than ever before. From sub-gram nuggets to the elusive 'retirement nugget' and everything in between, with the MCD-5000B, you can find it.In addition, The most prominent characteristics is... -
Page 4: Assembly
Assembly Step ： A 1. Plug the two rubber was hers into the holes on either side of the lower shaft. 2. Ensure th at the spring loaded pin of the lower shaft is pointing do wnwards.Slide the lower shaft into the bracket on the top of the coil. Insert the bolt through th e lower shaft and the bracket on top of the coil.Fasten with th e nut provided;being careful not to damage the thread of the nut by over-tightening.This may need to be loosened to... - Page 5 Step ： C Attaching the Handle to the Upper Shaft: Slide the handle onto the upper shaft so that it angles away from you,as sho wn below. Attaching the Armrest to the Upper Shaft: 1. Place armrest halves either side upper shaft, aligning th e armres t and upper shaft holes.
- Page 6 Step: E Connecting the Control Box to the Upper Shaft: 1.Place the detector on a flat surface,with the handle facing upwards. 2.Position the armrest on top of the control box. 3.Clip the control box onto the armrest,ensuring the battery plug faces away from the coil.
- Page 7 Step: G Connecting the Battery Pack: 1.Place the battery into the battery harness pouch. 2.Connect the headphones and the power cable to the appropriate sockets in the battery. Fitting the Battery Ha rness: 1. Thread your arms through the harness ,so the battery pack sits on yo ur back.
-
Page 8: Control Panel Instruction
1. Assembling machine well,Press the On/Off switch down and release to turn detector on. 2. And then come out MCD-5000B Menu Structure by LCD.Many functions are accessed through the LCD Menu.Note,In LCD Menu Structure.We added Work Mode(GND Balance and Discri Mode).You can set as your requirement.Ensure all setting are saved after finishing... -
Page 9: Detection Tips
Detecting Tips: Follow th ese hints and techniques to help you to utilise the power of yo u MCD Series detector,to ensure that every trip is a success. Identifying Target Signals *Metallic targets will usually give a “solid ” sounding signal when the coil is swept across the object from any direction.A metallic target... - Page 10 Gro und Balance around the target,without going across it,Then switch to Fixed and try Pinpointing. *Dig all target signals,even in previously detected areas.The MCD Series have superior ground balancing and depth so it is pos sible to find new targets in well-worked areas where other detectors have been un able to cope with the high degree of mineralisation an/or salt.
-
Page 11: After-Sale Service
Note:The MCD Series are ‘motion ’detectors.This means the coil must be mo ving the target,or the target moving over the coil,in order from the detector to ‘see ’it. -
Page 12: Special Declaration
companies, unless obtainin g th e written agreement of the company. Special Declaration: We reserve rights th at our product manual update and modify.If any change,Withou t prior notice. Old battery must be to deal with in according with local law or rules . Technical Parameters ：...
