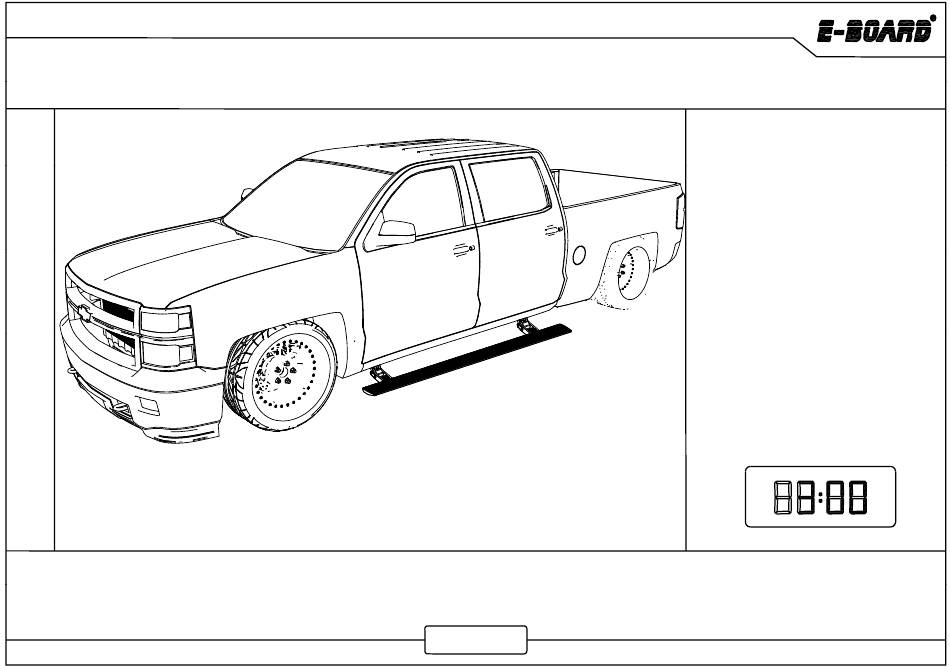

Silverado/Sierra-2019 POWER BOARD
Silverado/Sierra 2019 POWER BOARD
APPLICATION ： Silverado/Sierra 1500/2500/3500 EXT/Double Cab
PRODUCT NUMBER ： PST05-4310
Silverado/Sierra 1500/2500/3500HD Crew Cab
PST05-4410
2019
2019
TOOLS REQUIED ：
www.tmax.biz
Silverado/Sierra-2019
POWER BOARD
INSTALLATION
INSTALLATION
GUIDE
INSTALLATION TIME
① 5mm Hex Key Wrench (Allen Wrench)
②
② 12mm Socket Spanner
p
③ 12mm Ratchet Wrench
④ Pry Tool
⑤ Wire Cutter/ Stripper
⑥ Vinyl Tape
⑦ Screw Driver
Advertisement
Related Manuals for TMAX Digital E-BOARD PST05-4310
Summary of Contents for TMAX Digital E-BOARD PST05-4310
- Page 1 Silverado/Sierra-2019 POWER BOARD Silverado/Sierra 2019 POWER BOARD Silverado/Sierra-2019 POWER BOARD INSTALLATION INSTALLATION GUIDE INSTALLATION TIME APPLICATION ： Silverado/Sierra 1500/2500/3500 EXT/Double Cab 2019 Silverado/Sierra 1500/2500/3500HD Crew Cab 2019 ① 5mm Hex Key Wrench (Allen Wrench) TOOLS REQUIED ： PRODUCT NUMBER ： PST05-4310 ②...
-
Page 2: Table Of Contents
Silverado/Sierra-2019 Contents Product Technical Specification.....02 Product Packing List.......03 Mechanical Installation......06 Electrical Installation......11 Maintenance..........21 Warranty Card.........23 Warranty Card.........23 The product is developed and produced by T-MAX, and the related patents are blow. Patents:US8,469,380;US9,656,609;US9,308,870;US9,688,205;US9,669,766 www.tmax.biz... -
Page 3: Product Technical Specification
Silverado/Sierra-2019 Product Technical Specification Rated Voltage: 12V Specified Load: ≤350kg Gross Weight: PST05-4310 34.8kg PST05-4410 36kg Forward extension size: 157mm (Horizontal distance between the edge of power board and the vehicle door when the board extends) Board falling dimension: 288mm (Vertical height difference between the edge of power board and the vehicle door while board extending.) -
Page 4: Product Packing List
Silverado/Sierra-2019 Product Packing List Product Packing List ① Board Assembly×2 ①- Board Assembly×2 ⑤ - Socket Cap Screw ×8 ④ - Hexagon Flange Bolt ×8 ② - Front Motor Linkage Left ×1 ③ - Front Motor Linkage Right ×1 GB/T70.1-2000 M6×25 QC/T340-1999 M8×30 Rear Motor Linkage Left ×1 Rear Motor Linkage Right ×1... - Page 5 Silverado/Sierra-2019 ⑥ - Hexagon Flange Bolt ×2 ⑦ - Controller Assembly ⑧- Wire Tie×25 QC/T340-1999 M8×25 6114100.4.4ZJ GB/T22344-2008 5×300 Magnet ⑫- Power Board Switch×1 ⑩- Wired Magnetic Induction ⑨-Fuse×2 ⑪-LED Lamp×4 Module ×2 Module ×2 6124151 4 9 6124151.4.9 6161100 4 8 6161100.4.8 - Magnet ×4 （Optional）...
- Page 6 Silverado/Sierra-2019 Protection tube for high temperature and burning Two-core plug (red) Four core waterproof plug Four-core waterproof plug Two-core plug (black) Six-core waterproof plug （Negative-Black） （Positive-Red） ⑬ ⑬ - Control Input Wire ×1 6120100.4.1 www.tmax.biz...
-
Page 7: Mechanical Installation
Silverado/Sierra-2019 Mechanical Installation h i l ll i Installation position As shown in the picture, these are the two installation positions on the left side of the vehicle, and the installation mode of the front and Installation Position On the Left Side rear linkage are same . - Page 8 Silverado/Sierra-2019 M8×30 Hexagon Flange Bolt Installation of Front Motor Linkage Left www.tmax.biz...
- Page 9 Silverado/Sierra-2019 Step 1 : Screw the bolts in the holes h b l i h h l shown as the picture ,then tighten them （Tighten torque is 35 Nm）. Front left of the vehicle www.tmax.biz...
- Page 10 Silverado/Sierra-2019 Step 2: Screw the bolts in the holes shown as the picture ,then tighten them （Tighten torque is 35 Nm）. Rear left of the vehicle www.tmax.biz...
- Page 11 Silverado/Sierra-2019 Socket Cap Screw M6×25 Step 3: Install the board and adjust the T- nut to make the The installation of the right side for motor linkage two end faces of the board reach to an appropriate and board is referenced to the left side. and board is referenced to the left side.
-
Page 12: Electrical Installation
Silverado/Sierra-2019 Electric Installation by Magnetic Control 4.Connect white and brown signal wire Power board Power board with wired magnetic induction module . switch 1. Pull out the fuse and connect the battery wire. 2. Connect the control wire and arrange all function wires to the pointed positions. - Page 13 Silverado/Sierra-2019 Front Battery Front Right Rear Right Front Front Ri h Right Left Controller Front Left Rear Rear Rear Left Right Left Left side （upward view） Figure 1 Figure 2 Figure 1 is the wire harness diagram and figure 2 is the installation diagram. When install the wire harness, make sure the four connectors are connected with the four motor linkages by “front right, rear right, front left and rear left”.
- Page 14 Silverado/Sierra-2019 Controller Assembly M8×25 Hexagon Flange Bolt Step2 ：As shown in the picture, install the controller assembly by two M8×25 hexagon flange bolts and tighten them (Tighten torque is 35Nm) M8×25 hexagon flange bolts, and tighten them (Tighten torque is 35Nm). www.tmax.biz...
- Page 15 Silverado/Sierra-2019 Front Chassis on the right Step 3：The arrangement of motor wire: Arrange the motor connection wire along the beam as shown in the picture, the motor wire plug extends to motors of linkage. At least , adjust the wire harness to make sure it is tidy and beautiful.
- Page 16 Silverado/Sierra-2019 White signal wire and Brown signal wire power board switch wire A -pillar panel Figure 2 Power board Sill panel Sill panel switch Figure 3 Figure 1 Step 4: Connection of signal wire: Pry the sill panel and A-pillar panel on the left above . Pull the brown signal wire into the vehicle through the rubber grommet of chassis on the right side Then the white signal wire extends to the left side of the vehicle under the through the rubber grommet of chassis on the right side.
- Page 17 Silverado/Sierra-2019 Magnetic Inductor Installation Wire Harness Magnetic Inductor Induction part C Induction part C B-pillar on the right side (open right side (open the B-pillar panel) Remove the adhesive tape at Tighten the nut connecting Tighten the nut connecting the back of C and stick one the back of C, and stick one Insert the door signal wire t th d...
- Page 18 Silverado/Sierra-2019 Step 6：Sort out the wire harness and close the panels. The installation of white signal wire on the left side is same with the right side . www.tmax.biz...
- Page 19 Silverado/Sierra-2019 Step 7: Installation of LED lamp : Tear off the double-sided adhesive tape behind the LED lamp and stick it to the thin all blo the apron The and stick it to the thin wall blow the apron. The distance from designated pasting position of front and rear LED lamp to front door line of front door is shown as the picture (The distance of the front...
- Page 20 Silverado/Sierra-2019 Summary of Electric Part Summary of Electric Part Wired magnetic induction module arrangement Battery Power board switch Signal wire Motor wire arrangement arrangement Motor wire Controller connection connection Pull signal wire and Power board switch into the vehicle Step 9 : Check out the Power board switch of controller to make sure it is off. Insert back the fuse , arrange the wire harness in order.
- Page 21 Silverado/Sierra-2019 Instructions of Power Board Switch Stick the power board switch with 3M tape under the left side of steering wheel. I. Function of power board switch it h Turn off the switch when no need of power board or inconvenience of power board , then the power board will automatically get back and stop working to avoid any impact when use the vehicle .
-
Page 22: Maintenance
Silverado/Sierra-2019 Maintenance Inspect the normal operation of the mechanism. 3 months Periodical Inspect damage for each wire connection and the bare part outside of the vehicle beam. Inspection Inspect screw’s looseness of motor and power board . Clean the sediment on time for power board and the linkages. Special Case Inspection Clean the ice on time for power board and the linkages. - Page 23 Silverado/Sierra-2019 T-MAX Product Warranty Instructions Thank you very much for choosing our product! I Maintenance Instr ction I Maintenance Instruction 1、During warranty period, T-MAX provides free maintenance for any malfunction related to the manufacturer. Warranty period lasts 24 months or 5 kilo in 2 years after sale.
-
Page 24: Warranty Card
Silverado/Sierra-2019 Warranty card Product Type User Name Product Name 7、Forbidding high temperature when using the power board; Factory Number Address 8、The heads of both sides of the single pedal are made of plastic. They are pedal's exterior decorating parts. Do not board; d l' Date of Purchase 9、Do not put thick mats or other debris on power board to avoid the... - Page 25 Produced by T-MAX(HANGZHOU)TECHNOLOGY CO.,LTD www.tmax.biz...
