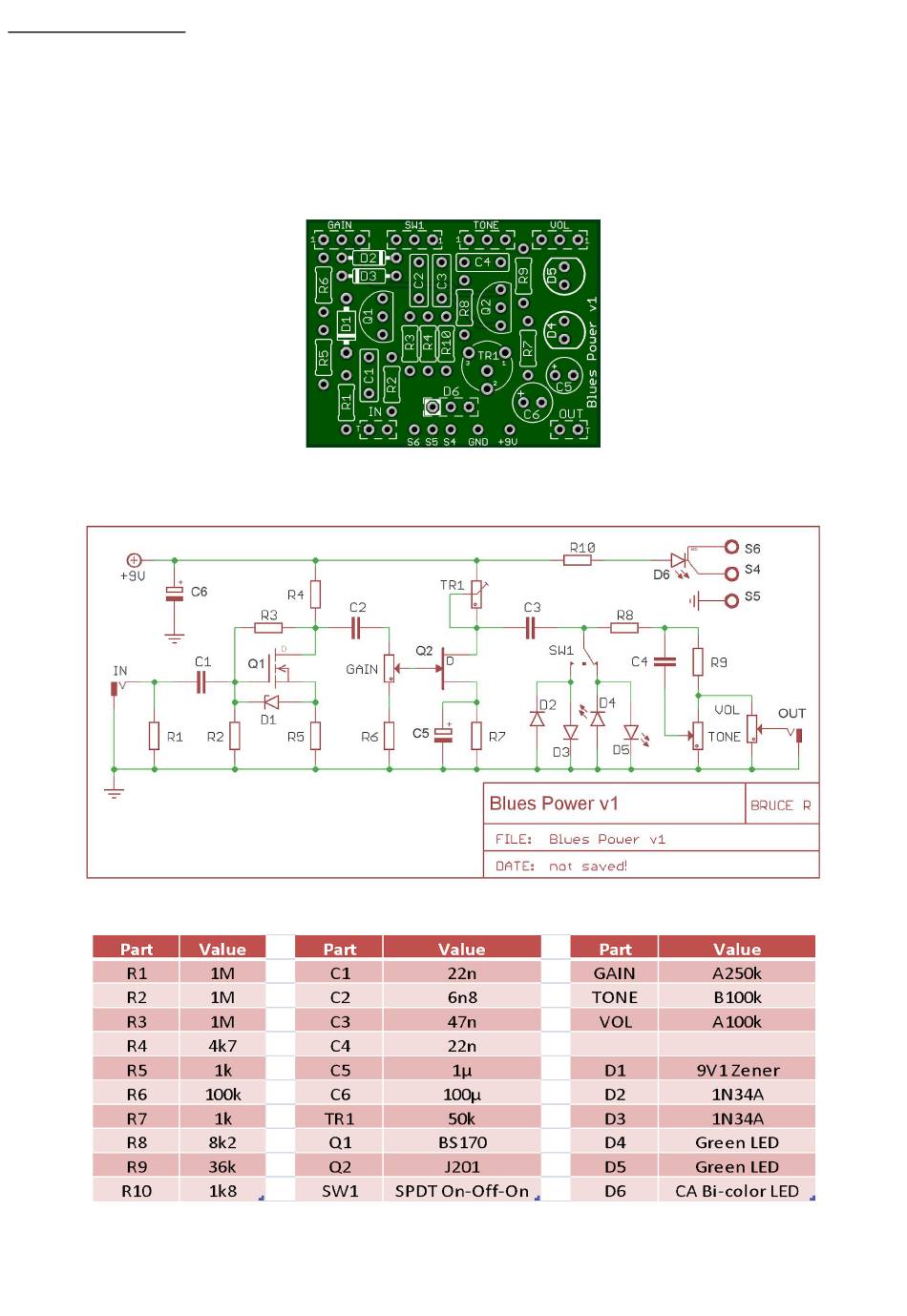

Blues Power v1
Blues Power is unique in that it combines a simple MOSFET boost stage with a JFET "tube" stage. This is
based off the ROG Peppermill but with added clipping options to allow the circuit to exhibit more clipping than
the original and with LEDs a much warmer tube-style tone. We have also changed a value to allow more bass
response. Now besides being used a boost it can also work as an overdrive with Bass or Standard guitar. The
tone control is a low pass filter at minimum rotation, but at 65% rotation it changes to a fine high pass filter.
Board Dimensions (W x H) 1.63" x 1.26" ca. 41.3mm x 32 mm
D1​ is a reverse polarity protection. ​ D 6 ​ i s an option to use the main board to hold the Bi-color status LED.
R10​ – Current Limiting Resistor for on-board Bi-color LED. This may be adjusted to 4k7 for a dimmer light.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Blues Power and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GuitarPCB Blues Power

  • Page 1 Blues Power v1 Blues Power is unique in that it combines a simple MOSFET boost stage with a JFET “tube” stage. This is based off the ROG Peppermill but with added clipping options to allow the circuit to exhibit more clipping than the original and with LEDs a much warmer tube-style tone.
  • Page 2 < The diagram above shows the pin-out, schematic symbol and pad connection for a common anode LED. The pin-out for the bi-color LED is as follows: st​ 1​ Colour Cathode 90 degree bend in the lead Common Anode Middle lead nd​...
  • Page 3 If you are using one of GuitarPCB’s 3PDT wiring boards, pads S4, S5, S6 and D6 would be ignored and R10 would not be installed when choosing to mount the status LED on the 3PDT wiring board instead. We like to provide different options for builders.
