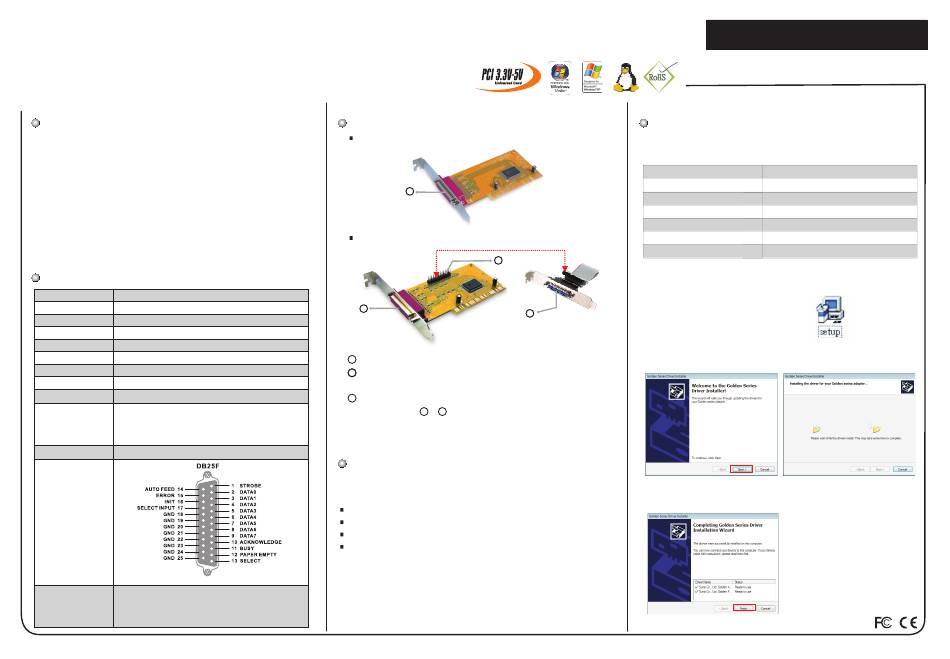

Assmann DS-33001 Quick Installation Manual

771-PCIPAR000-002
PCI IEEE1284 Parallel
Introduction
Thank you for purchasing IEEE1284 interface PCI add-on card . This card
enables users to expand one or two additional LPT communication ports on
their PC-based system for connecting their parallel devices. Parallel (LPT)
port offer data transfer rate up to 2.7Mbps with built-in ECP/EPP/SPP/BPP
auto-switching operation modes to give you maximum system performance
and efficiency via DB25 pin female connector. Due to current mainboad does
not equip any Parallel (LPT) port, this card is your best solution to utilize your
CENTRONICS peripheral with parallel port in an easy-to-use environment
and creates for use in the commercial automation and as well ideal for home
or office uses.
Specification
Model PCI IEEE1284 Parallel Communication Board
Bus Interface PCI 33MHz Version 2.2/2.1 Specification.
Controller SUN1888 IEEE1284 Parallel Controller
Number of Ports One or Two DB25 Female Ports
IRQ & IO Address Assigned by BIOS / O.S.
FIFO 16 byte hardware FIFO
Data Speed Maximum 2.7MBps
Operation Mode ECP/EPP/SPP/BPP (System Auto-Switching)
Bracket Standard 121 mm (Optional Low Profile 79.2 mm)
Windows 3.1 / 9x / NT / 2000 / XP / 2003 / Vista
Driver Support Linux 2.2.x, 2.4.x, 2.6.x,
DOS
Certification CE, FCC ClassB / Microsoft WHQL / RoHS
Pin Assignment
Operation Temperature: 0 C~ 60 C (32 to 140°F)
Environment Storage Temperature: -20 C~ 85 C (-4 to 185°F)
Humidity: 5 ~ 95% RH
Communication Board
Hardware Guide
1-port PCI IEEE1284 Parallel Board
2-port PCI IEEE1284 Parallel Board
1
2-port PCI Parallel LPT Card
1 Parallel Port 1 (LPT2)
2 2 Parallel Port 2 (LPT3) / DB25F Connector Bracket Set
Only for 2-port Parallel Card
3 Pin Header to Parallel Connector
Please connect
Package List
Please check if the following items are present and in good condition upon opening
your package. Contact your vendor if any item is damaged or missing.
PCI IEEE1284 Parallel Communication Board
Quick Installation Guide (this document)
CD Driver
Second LPT Port Expansion Cable with Bracket (
NOTE:
We provide 1 or 2 parallel LPT ports product for user selection. The expansion
LPT port and cable accessory will depend on what product you bought. Only two
° °
parallel LPT ports product attaches cable accessory.
° °
1
3
2
2 & 3 with each other.
Note
)
Quick Installation Guide
Driver Installation
In order to ensure proper operation of your PCI IEEE1284 Parallel board, the driver will
be in the CD bound with your product. You can specify the location (folder) as below:
Operation System
Driver Location
Windows 2000 / XP / 2003 / Vista (32-bit) :\IO\PCI IO\2K & XP & 2003&Vista_32bit\
:\IO\PCI IO\XP& 2003&Vista_64 bit\
Windows XP / 2003/Vista (64-bit)
:\IO\PCI IO\Win9x\
Windows 95 / 98 / Me
Windows NT4.0
:\IO\PCI IO\WinNT\
Windows 3.1 / DOS :\IO\PCI IO\DOS\PCIDOS.exe
Linux 2.4.x, 2.6.x System Default Driver, LPT #2 or LPT #3
1. Please double click the Setup.exe file or specify the driver locate
within folder of the attached driver CD.
2. When the welcome screen appears, click " Next ".
3. System will search " PCI 4018 Multi-IO Adapter" driver
4. After installing driver successfully, please select " Finish
Version 1.3
" to complete the steps.
