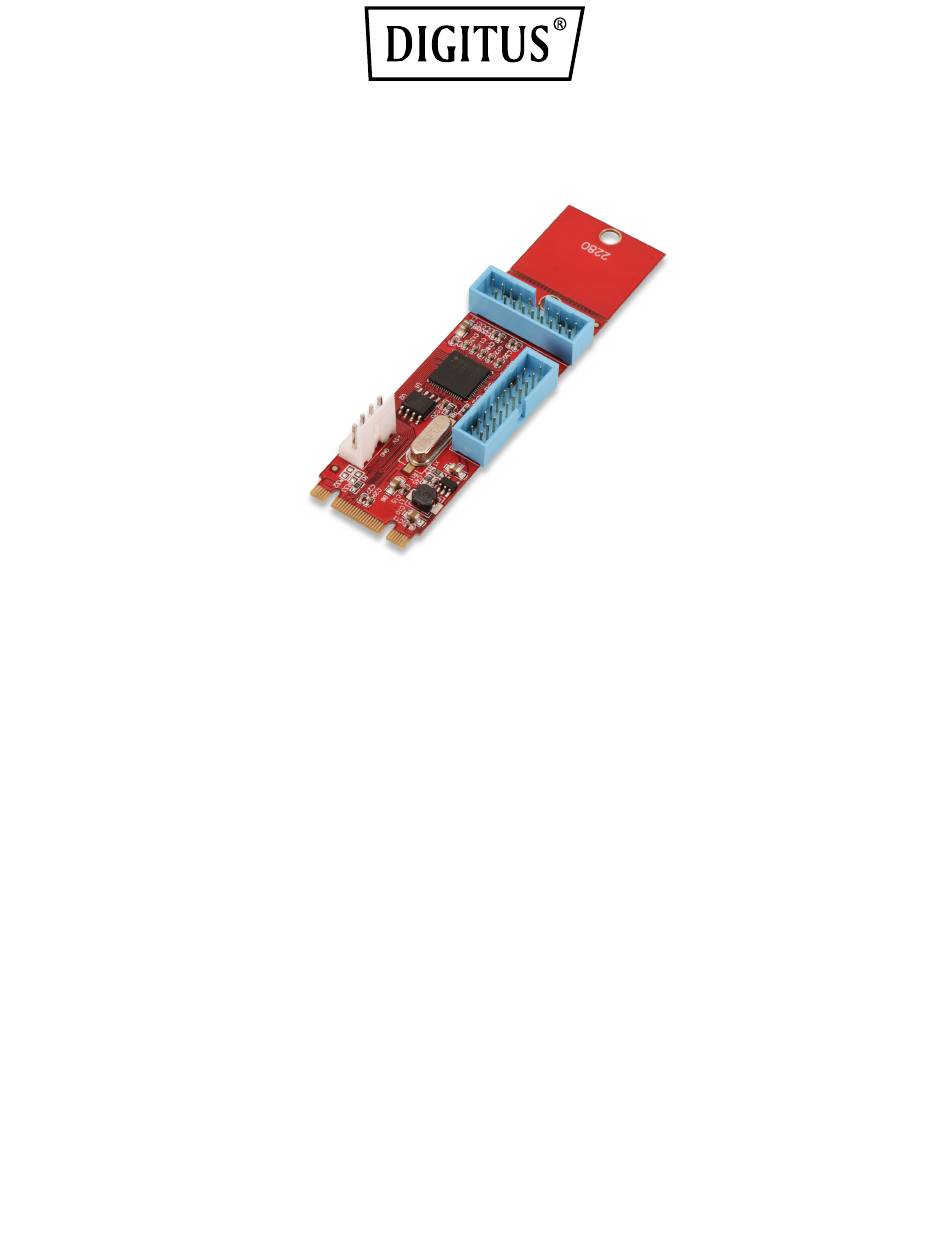

NGFF (M.2) to 2ports 19pin USB3.0 PCIe Card
Manual DS-30224
Key features
1. Connects NGFF B or M Key motherboard to USB device
2. Compliant with PCI Express M.2 specification 1.0.
3. Compliant with USB 3.0 specification.
4. Supports data transfer up to 5.0Gb/s.
5. Supports socket 2 (B Key) & socket 3 (M Key).
6. Two 19Pin USB3.0 Port and one NGFF M.2 Key B+M male connectors available.
7. 2 screw holes 2260/2280 available.
8. Floppy 4 pin power connector available for stable power.
9. Easy installation & no driver required.
10. Supports any OS, like Windows, WinCE & Linux etc.
Quick Install Guide
Step 1: Insert DS-30224 to M.2 (NGFF) slot on Motherboard.
Step 2: screw DS-30224 on Motherboard.
Step 3: Power it by 4pin power cable from power supply
Step 4: Install driver for chipset - D720201
