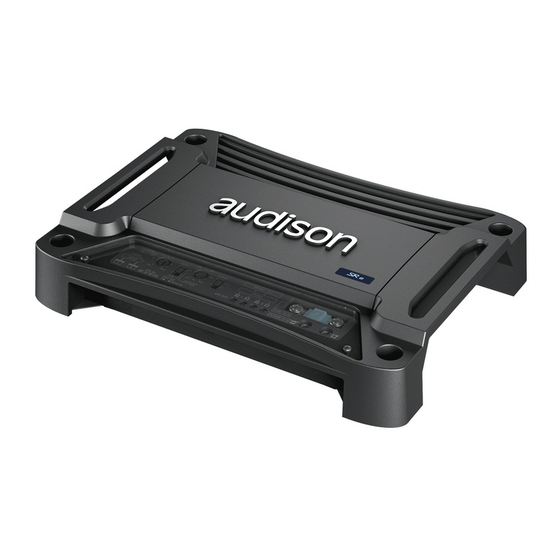

180w power amplifier
Hide thumbs Also See for SR 2:
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 1
www.audison.eu
ADVANCED WEB MANUAL
180W Power Amplifier
Stereo power amplifier with crossover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SR 2 and is the answer not in the manual?

Questions and answers

Related Manuals for Audison SR 2

Summary of Contents for Audison SR 2

  • Page 1 All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 1 www.audison.eu ADVANCED WEB MANUAL 180W Power Amplifier Stereo power amplifier with crossover...

  • Page 2: Specifications

    All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 2 SPECIFICATIONS Control panel and terminals Inputs / Functions Power Outputs Power Supply...

  • Page 3: Remote Out

    All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 3 FUNCTIONS Remote REMOTE OUT REMOTE IN REMOTE IN REMOTE...
  • Page 4 All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 4 INPUTS PRE IN Stereo REMOTE IN Left Right REMOTE OUT REMOTE IN PRE OUT REMOTE...

  • Page 5: Left Right

    All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 5 INPUTS PRE IN Mono REMOTE IN REMOTE OUT Left Right REMOTE IN REMOTE Other amplifier...

  • Page 6: Speaker Out

    All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 6 INPUTS SPEAKER IN Stereo REMOTE OUT with Speaker IN REMOTE IN Right SPEAKER OUT Left...
  • Page 7 All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 7 INPUTS SPEAKER IN Mono REMOTE OUT with Speaker IN SPEAKER OUT REMOTE IN Left Right Other amplifier...

  • Page 8: Power Outputs

    All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 8 POWER OUTPUTS Stereo Mode Full Range MAX: 8 AWG Full Range 2 Ω 2 Ω LEFT RIGHT...
  • Page 9 All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 9 POWER OUTPUTS Stereo Mode Hi-pass MAX: 8 AWG 50 ÷ 500 Hz @ 12 dB Oct. 500 ÷ 5000 Hz @ 12 dB Oct. 2 Ω 2 Ω...
  • Page 10 All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 10 POWER OUTPUTS Mono Mode Full Range / Hi-pass MAX: 8 AWG Full Range 50 ÷ 5000 Hz @ 12 dB Oct. 4 Ω...
  • Page 11 All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 11 COVER and FUSE...

  • Page 12: Technical Specifications

    All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 12 TECHNICAL SPECIFICATIONS Power Supply Amplifier stage Distortion - THD @ 1 kHz, 4 Ω, 90% Power: Voltage: 11÷15 VDC 0.07 % Bandwidth @ -3 dB, 2 VRMS, 4 Ω: Idling current: 0.4 A 15 ÷...
  • Page 13 All manuals and user guides at all-guides.com Esec_DAF004A_SR 2_Web_manual_Layout 1 18/01/10 09:37 Pagina 13...
