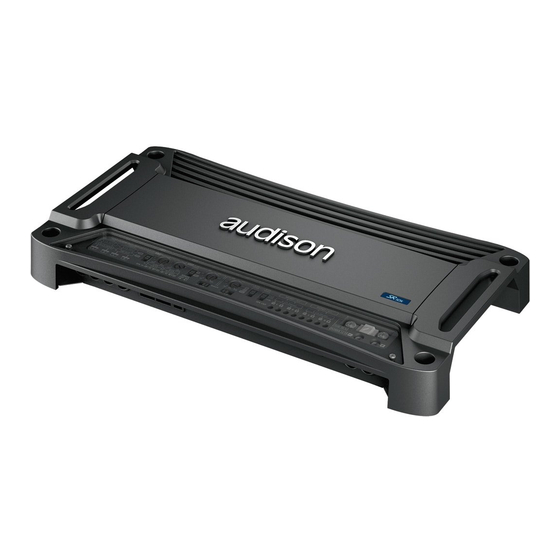

- Page 1 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 1 www.audison.eu ADVANCED WEB MANUAL Issued in September 2011 1200W Power Amplifier Mono power amplifier with crossover...
-
Page 2: Specifications
Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 2 SPECIFICATIONS Control panel and terminals Inputs / Outputs / Functions Power Outputs Power Supply... -
Page 3: Left Right
Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 3 INPUTS PRE IN and PRE OUT PRE OUT SUB IN (Bypass) PRE OUT REMOTE OUT REMOTE IN Left Right Left Right PRE OUT PRE IN REMOTE IN REMOTE... -
Page 4: Speaker Out
Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 4 INPUTS SPEAKER IN and PRE OUT PRE OUT SPK IN (Bypass) REMOTE OUT whit SPEAKER IN Left Right PRE IN REMOTE IN SPEAKER OUT... - Page 5 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 5 FUNCTIONS Remote Subwoofer remote control VCRA (optional) Subwoofer volume adjustment (OFF ÷ +6 dB)
- Page 6 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 6 MODE Amp chain mode: Master ENABLED PRE OUT TO SLAVE AMP CHAIN MODE: SLAVE PRE IN L...
- Page 7 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 7 MODE DISABLED Amp chain mode: Slave (SLAVE 1) PRE IN FROM MASTER PRE OUT TO SLAVE AVAILABLE (MASTER) (SLAVE 2) AMP CHAIN MODE: MASTER AMP CHAIN MODE: SLAVE PRE OUT TO SLAVE PRE IN L PRE OUT TO SLAVE...
-
Page 8: Power Outputs
Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 8 POWER OUTPUTS Amp chain mode: Off TERMINALS IN PARALLEL MODE MAX: 8 AWG 1 Ω 2 Ω 2 Ω 2 Ω 2 Ω SINGLE COIL DUAL COIL DUAL SUBWOOFER SUBWOOFER SUBWOOFER... -
Page 9: Amp Chain Mode
Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 9 AMP CHAIN MODE 2 x Amps Bridge on 1 Sub MASTER ENABLED PRE OUT TO SLAVE PRE IN 2 Ω SLAVE DISABLED SUBWOOFER PRE OUT TO SLAVE PRE IN L... - Page 10 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 10 AMP CHAIN MODE 4 Amps Bridge on 2 sub MASTER ENABLED PRE IN PRE OUT TO SLAVE 2 Ω SLAVE DISABLED SUBWOOFER PRE OUT TO SLAVE...
- Page 11 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 11 SLAVE DISABLED PRE OUT TO SLAVE 2 Ω SLAVE DISABLED SUBWOOFER PRE OUT TO SLAVE...
- Page 12 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:00 Pagina 12 AMP CHAIN MODE Endless series MASTER ENABLED SUBWOOFER 1 Ω PRE IN PRE OUT TO SLAVE 0° SLAVE DISABLED SUBWOOFER 1 Ω PRE OUT TO SLAVE 180°...
- Page 13 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:01 Pagina 13 SLAVE DISABLED SUBWOOFER 1 Ω PRE OUT TO SLAVE 0° SLAVE DISABLED SUBWOOFER 1 Ω PRE OUT TO SLAVE 180°...
- Page 14 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:01 Pagina 14 SPECIFICATIONS Configuration table PRE OUT only with Conf. SUB Ch AMP CHAIN MODE OFF INPUT PRE OUT AMP OUT Full Full & & Phase Control Bypass Mono Bypass Full Lo-pass Mono Bypass Equalizer Subsonic Filter 40 ÷...
- Page 15 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:01 Pagina 15 COVER and FUSE...
-
Page 16: Technical Specifications
Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:01 Pagina 16 Technical Specifications Power Supply Amplifier stage Distortion - THD @ 100 Hz, 4 Ω, 90% Power: Voltage: 11÷15 VDC 0.3 % Bandwidth @ -3 dB, 2 VRMS, 4 Ω: Idling current: 18 ÷ 550 Hz Switched off: <... - Page 17 Esec_DAF003A_SR 1Dk_Web_manual_Layout 1 14/09/11 17:01 Pagina 17...
