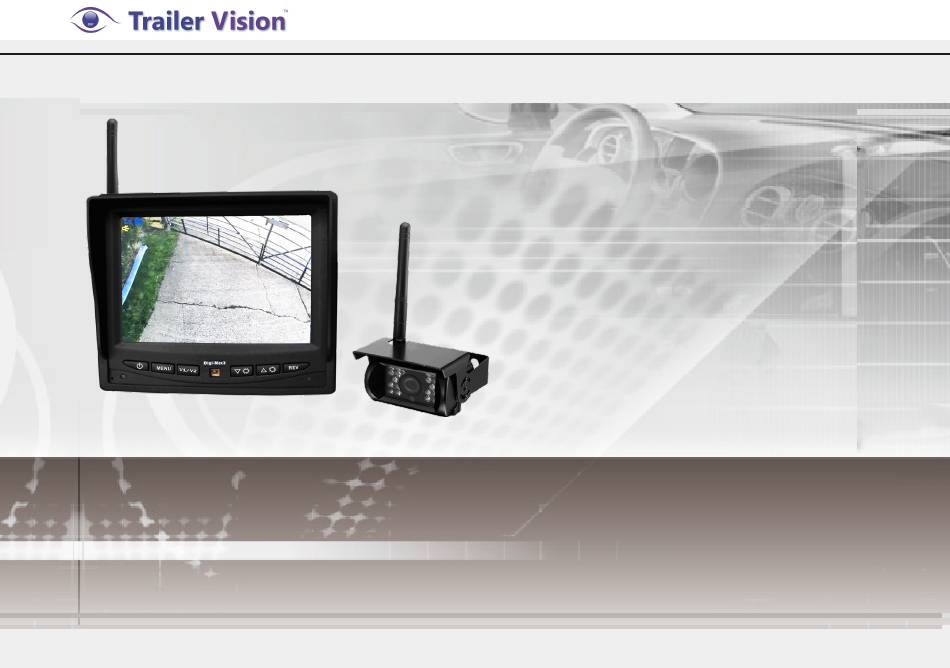

- Page 1 Digi-Max3™ 'AHD' 4CH DW Camera System User Manual...
-
Page 2: Important Notice
Important Notice Please read all instructions carefully before installing/using the product. Improper installation/use will void the manufacturer’s warranty. The installation instructions detailed in this manual do not apply to all vehicles and are written as guidelines only. Safety Notice The Digi-Max3™ Digital Wireless (DW) Camera System is designed to be used as a driving aid. -
Page 3: Applications And Features
Applications and Features Applications • Reversing camera system for all vehicles/trailers • Load monitoring for horseboxes and horse trailers • Agricultural applications 'AHD' Monitor Features • Easy installation via a windscreen mount and cigarette lighter power adapter • Trigger connections for automatic reversing camera etc display •... -
Page 4: Package Contents
Package Contents Dashboard mounts optional • 7” Monitor (one) • Up to four Cameras • Aerials (1/camera & 1/monitor) • Cigarette lighter power adapter • Windscreen mount • Up to four camera brackets • Camera fixing kit(s) Page 4... -
Page 5: Monitor Operation
Monitor Operation 1. Short press to Standby/short press to turn On. 2. Short press to enter the Menu and confirm selection after entering Menu. 3. Short press to switch to single/split/quad-screen (when multiple cameras are utilised/powered). 4. Select to the left/decrease the value (within the Menu). - Page 6 Monitor Operation Guide 1. Power ON/OFF The monitor will automatically turn on when it's connected to a power source and can be turned off via the power button. The monitor can also be turned off/on via the ignition. If no signal is received from a camera, it will turn off automatically after 3s. Otherwise, the powered camera(s) will be displayed.
-
Page 7: Monitor Specification
Monitor Specification Panel 7 Inch Digital Panel Aspect Ratio 16:9 Resolution 1024*3R.G.B*600 Back Light, Luminance LED, 350cd/m2 Contrast 1000:1 Viewing Angle UP -50°, Down -70°, Left -70°, Right -70° Transmitting Distance 200M in open area Power Supply DC 10-36V Power Consumption <5W Maximum Current <550mA... -
Page 8: Camera Specification
Camera Specification Image Sensor 1/3” Colour Active Pixels 1292*968V Viewing Angle 120 Degrees (H) Night Vision Up to approx10m Audio Input High Sensitivity, -36DB Microphone Waterproof Level IP69K 2.4Ghz Wireless Transmitting Distance 200m Line of Sight Power Supply DC 10-36V Power Consumption <5W Viewing Angle... -
Page 9: Installation
Installation Fan Bracket U Shaped Bracket Windscreen Mount (Optional - Windscreen (Optional - Windscreen Mount Included) Mount Included) Page 9... - Page 10 Installation (Continued) 1. Monitor. The monitor can be fixed to the windscreen in a suitable location (ideally not within the sweep of the windscreen wipers), which does not block the view of the road/outside. The monitor is powered via the Cigarette Lighter Power Adapter ('hard-wire' monitor power adapters are available separately).
-
Page 11: User Interface
User Interface Press the Menu button to open the Menu, use the up/down buttons to select the different options and press the Menu button again to open the sub-Menus. Page 11... - Page 12 User Interface (Continued) Pairing: Select the camera/CH for pairing (via the CAM button) and then select pairing... a 60 second on-screen countdown begins, within 60 seconds apply power to the camera to be paired (cameras automatically go into pairing mode when switched on, if not already paired).
-
Page 13: Limited Warranty
Limited Warranty Two Year Warranty We warrant this product against material defects for a period of two years from the date of purchase. We reserve the right to repair or replace any such defective unit at our sole discretion. We are not responsible for a defect in the system as a result of misuse, improper installation, damage or mishandling of the electronic components. - Page 14 Page 14 www.trailervision.co.uk...
