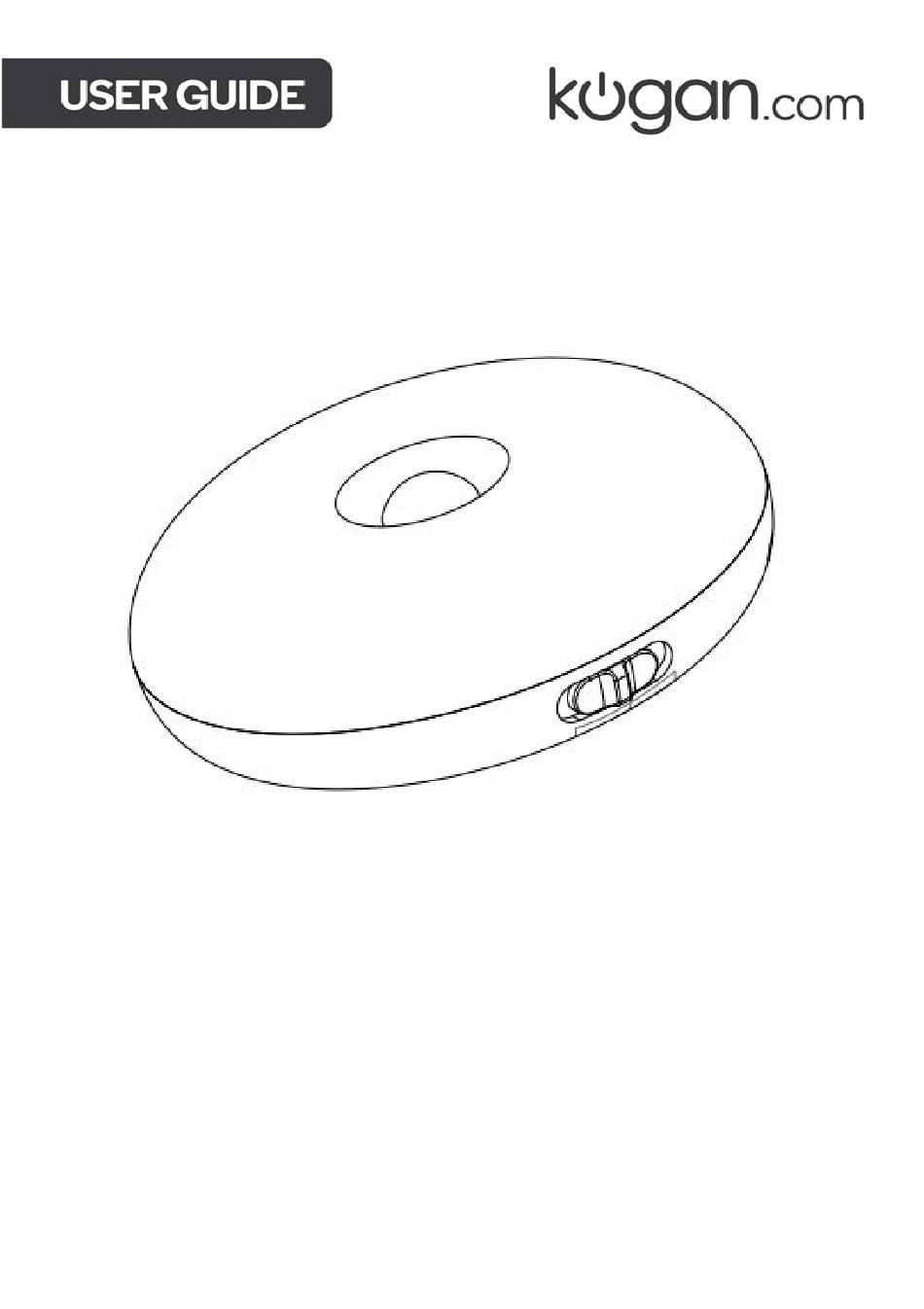

- Page 1 KOGAN SMARTERHOME™ NIGHT LIGHT WITH MOTION SENSOR (KABLENTLHTA)
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Installation SmarterHome™ App Operation Specifications... -
Page 3: Safety & Warnings
SAFETY & WARNINGS • Read all instructions carefully before using the product and retain this guide for future reference. • The sensing area of this product should not be obstructed or covered by objects. • When installed, this product should be kept away from direct sunlight and other sources of heat. -
Page 4: Components
COMPONENTS USB Charging Cable Hanging Mount Magnetic Mount... -
Page 5: Overview
OVERVIEW Top: Light body Sensor (Light & PIR) Charging indicator Underside: Magnet... - Page 6 Side: Switch Mounting hole Charging input...
-
Page 7: Installation
INSTALLTION Magnetic Mount For best results, we recommend that the installation height be greater than 0.4m and less than 1.2m. The product will still operate but the detection range may be reduced if installed outside of this range. Attaching the magnetic mount: •... - Page 8 Hanging Mount • Attach the hanging mount to the mounting hole on the side of the night light. • The night light can now be safely mounted in a variety of locations: door handles, clothes hangers, hooks etc.
-
Page 9: Smarterhome™ App
Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Register If you do not have a Kogan SmarterHome™ account, register or sign in with a verification code sent by SMS. To Register Tap to enter registration page. - Page 10 Notes: Before connecting the device, please enable Bluetooth on your mobile phone. Set Device in Pairing Mode Connect the night light to a power supply using the supplied USB cable. Slide the switch to the "MESH" position, the night lamp should now be in pairing mode.
- Page 11 Bluetooth range, the device will lose its connection and appear offline. Ensure that the device is in pairing mode (switch in “Mesh” position). Open the “Kogan SmarterHome” app. Ensure that Bluetooth is enabled on your smart phone. Tap “+” in the upper right corner of the app’s home page to add a new device through the network.
- Page 12 During connection, the “ ”flashes continuously in the pop-up window. Please click "Done" after you have successfully paired the device. Note: If the networking of the device needs to be reset, please continuously slide the switch between the “OFF” and “MESH” positions three times. (OFF-MESH- OFF-MESH-OFF-MESH), with an interval of approximately 2 seconds.
- Page 13 Ensure that the device is in pairing mode. Connect your smart phone to your 2.4GHz Wi-Fi network. Open the “Kogan SmarterHome” app. Select “Bluetooth Gateway” from the list of connected devices. Tap “search new device” in the bottom right corner of the app to search for any sub-devices.
- Page 14 The device will commence the pairing process and connect to the gateway and app. Ensure your Wi-Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete. After successfully being added, you will have the option to rename the device and assign it to a location.
- Page 15 Ensure that Bluetooth is enabled on your smart phone. If not, you will be prompted to turn it on. Open the “Kogan SmarterHome” app. Select “Bluetooth Gateway” from the list of connected devices. Tap “add device from list” in the bottom left corner of the app to search for any sub- devices.
-
Page 16: Operation
OPERATION Power On/Off To quickly turn the night light on or off, tap the power icon to the right of the device name. Settings Click " " in the upper right corner to view the device information, share the device and remove device etc. - Page 17 Schedule Tap on the “Schedule” tab at the bottom right of the screen. Tap on the “Add Schedule” button. Choose a start time (on) or end time (off). To setup a repeat on certain days of the week, tap “Repeat” or the schedule will only occur once.
- Page 18 White Adjustment Tap on the “White” tab at the top of the screen to enter the white control menu. Slide the horizontal bar left or right to set the desired brightness level.
- Page 19 Colour Adjustment Tap on the "Colour” tab at the top of the screen. Tap on any part of the colour picker to select a desired colour. Slide the horizontal bars left or right to adjust the colour saturation and brightness.
- Page 20 Scene Tap on the “Scene” tab at the top of the screen. Tap on any of the scene icons to select the desired scene.
- Page 21 Slide the switch to the mesh position to place the night light in network mode to be used with the “Kogan SmarterHome” app. Slide the switch to the off position to turn the night light off.
- Page 22 Charging Connect the supplied USB cable to the charging input on the side of the night light. Connect the USB cable to a 5V USB power adaptor (mobile phone charger). The night light should be fully charged in approximately 2.5-3 hours. The colour and condition of the indicator will display the current status of the battery.
-
Page 23: Specifications
SPECIFICATIONS Plastic shell material Input power 5V 1A Working current 45mA Output power 0.2W Working temperature - 22 °C ~ + 55 °C Battery capacity 1000mAh lithium battery Light colour Warm light Light source Colour temperature 3200K Max Power supply Micro USB Charging Charging time 2.5-3 hours... - Page 24 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
