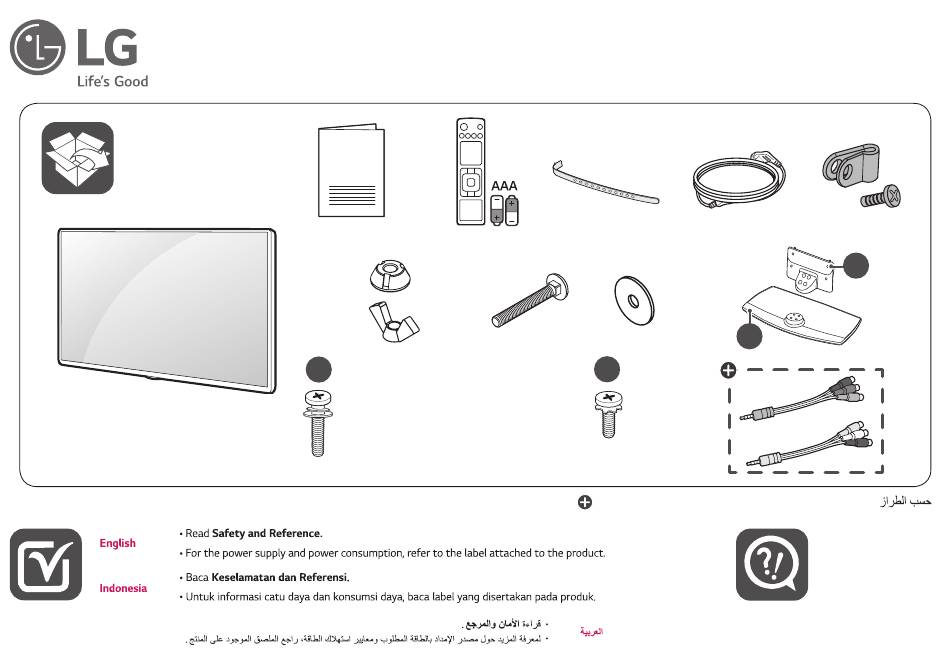

  • Page 1 LED TV 43/49/55UT661H* 43/49/55UT665H* 49/55UT761H* (M4 X L12) (M4 X L20) (M4 X L20) 49/55UT761H* 49/55UT761H* 43/49/55UT661H* 43/49/55UT665H* : Depending on model / Tergantung pada modelnya / www.lg.com...
  • Page 2 43/49/55UT661H* 49/55UT761H* 43/49/55UT665H*...
  • Page 3 HDMI IN/ARC AV IN COMPONENT IN...
  • Page 4 Satellite IN...
  • Page 5 H/P OUT CLOCK...
  • Page 6 AV IN COMPONENT IN VIDEO L/MONO AUDIOR AUDIO VIDEO...
  • Page 8 43UT661H0GA 85.0 11.2 43UT665H0VA 49UT661H0GA 1110 81.1 14.3 11.1 49UT665H0VA 55UT661H0GA 1244 87.1 17.5 14.3 55UT665H0VA 49UT761H0TA 1096 63.6 17.2 14.0 49UT761H0GA 55UT761H0TA 1232 63.6 20.4 17.2 55UT761H0GA AC 100-240 V ~ 50 / 60 Hz Power requirement / Persyaratan daya /...
  • Page 9 OWNER’S MANUAL Safety and Reference LED TV* * Disclaimer LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. *MFL71693902* www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved.
  • Page 10 Warning! Safety Instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while unit is plugged in.
  • Page 11 Unauthorized modification could void the user’s authority to operate this product. • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.

  • Page 12: Separate Purchase

    Preparing Separate Purchase Separate purchase items can be changed or modified for quality • If the TV is turned on for the first time after it was shipped from the improvement without any notification. Contact your dealer to buy these factory, initialization of the TV may take a few minutes.

  • Page 13: Wall Mounting Bracket

    Wall Mounting Bracket • Hold the top and bottom of the TV frame firmly. Make sure not to hold the transparent part, speaker, or speaker grill area. Make sure to use screws and wall mount bracket that meet the VESA standard.

  • Page 14: Mounting On A Table

    Mounting on a Table Attaching the TV to a Desk (Depending on model) The TV should be attached to a desk so it cannot be pulled in a forward/ 1 Lift and tilt the TV into its upright position on a table. backward direction, potentially causing injury or damaging the product.

  • Page 15: Using The Kensington Security System

    TV and a table. performed by a qualified professional installer. We recommend the use of LG’s wall mount bracket. LG’s wall mount bracket is easy to move with cables connected. When you do not use LG’s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices.

  • Page 16: Satellite Dish

    Connections Connect various external devices to the TV and switch input modes to select an external device. For more information of external device’s connection, refer to the manual provided with each device. Antenna/Cable Connect the TV to a wall antenna socket with an RF cable (75 Ω). •...

  • Page 17: Other Connections

    Other connections External Devices Available external devices are: Blu-ray player, HD receivers, DVD players, Connect your TV to external devices. For the best picture and audio VCRs, audio systems, USB storage devices, PC, gaming devices, and quality, connect the external device and the TV with the HDMI cable. other external devices.

  • Page 18: External Speakers

    External Speakers Method of volume control port (Depending on model) (Depending on model) • Cable Spec. Each Up / Down pin is pulled to 3.3 V with CPU GPIO. EXTERNAL SPEAKER OUT GND / UP / DOWN CPU detects transition STEREO from 3.3 V to GND level for (8 )

  • Page 19: Using Button

    Using Button Network (Depending on model) Wired network connection You can simply operate the TV functions, using the button. This TV can be connected to a Pro:Centric server via the LAN port. After making the physical connection, the TV needs to be set up for network communication.

  • Page 20: Adjusting The Angle Of The Tv To Suit View

    Adjusting the Angle of the Using Remote Control TV to suit view The descriptions in this manual are based on the buttons on the remote control. Please read this manual carefully and use the TV correctly. (Depending on model) To replace batteries, open the battery cover, replace batteries (1.5 Swivel 20 degrees to the left or right and adjust the angle of the TV to V AAA) matching the ends to the label inside the...

  • Page 21: Control Buttons

    * To use the button, press and hold for more than 3 seconds. • Do not mix new batteries with old batteries. This may cause the batteries to overheat and leak. (POWER) Turns the TV on or off. • Failure to match the correct polarities of the battery may Adjusts the brightness of the screen to reduce cause the battery to burst or leak, resulting in fire, personal energy consumption.

  • Page 22: Troubleshooting

    Troubleshooting Abnormal display • If the product feels cold to the touch, there may be a small “flicker” when it is turned on. This is normal, there is nothing wrong with product. The software version can be updated for improvement in performance. •...

  • Page 23: Specifications

    Specifications (Depending on country) Broadcasting Specifications Digital TV Analogue TV (Depending on Country) (Depending on Country) PAL B/B, PAL B/G, PAL D/K, PAL-I DVB-T/T2 Television system SECAM B/G, SECAM D/K DVB-T/T2/C/S/S2 NTSC-M VHF, UHF Programme coverage VHF, UHF, CATV C-Band , Ku-Band DVB-T/T2 &...

  • Page 24: Operating Temperature

    Wireless module (LGSBWAC92) specifications Wireless LAN (IEEE 802.11a/b/g/n/ac) Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 18 dBm 5,150 to 5,725 MHz 18 dBm 5,725 to 5,850 MHz (Not for EU) 12 dBm Bluetooth Frequency Range Output Power (Max.) 2,400 to 2,483.5 MHz 8 dBm As band channels can vary per country, the user cannot change or adjust the operating frequency.
  • Page 25 HDMI-DTV supported mode HDMI-PC supported Mode • PC audio is not supported. Horizontal Vertical Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) Frequency (Hz) 31.46 59.94 Horizontal Vertical 640 x 480p Resolution Frequency (kHz) Frequency (Hz) 31.5 31.47 59.94...

  • Page 26: Supported Audio Formats

    Component port connecting Supported Audio Formats information File (Depending on model) Item Info Format Bit rate 32 Kbps - 320 Kbps Component ports on the TV Sample freq. 16 kHz - 48 kHz .mp3 Support MPEG1, MPEG2 Channels mono, stereo Video output ports on DVD player Bit rate Sample freq.

  • Page 27: Supported Video Formats

    • ULTRA HD Video : 3840 x 2160, 4096 x 2160 • Some HEVC encoded ULTRA HD videos other than the content VC-1 Advanced Profile (except for officially provided by LG Electronics may not be played. Video WMVA), VC-1 Simple and Main Profiles .asf •...

  • Page 28: Open Source Software Notice Information

    In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for download. LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such...
  • Page 29 IR CODES • This feature is not available for all models. Code Code Function Note Function Note (Hexa) (Hexa) Remote control Button Remote control Button (POWER) (Power On/Off) Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button Remote control Button...

  • Page 30: External Control Device Setup

    EXTERNAL CONTROL Phone jack Type (Depending on model) DEVICE SETUP • You need to purchase the phone-jack to RS-232C cable required for the connection between the PC and the TV, which is specified in the manual. RS-232C Setup * For other models, connect to the USB port. •...

  • Page 31: Communication Parameters

    RS-232C Configurations Command Reference List (Depending on model) 7-Wire Configurations Data (Standard RS-232C cable) Command1 Command2 (Hexadecimal) 1 Power 00 to 01 2 [Aspect Ratio] (See p. 24) 3 Screen Mute (See p. 25) 4 Volume Mute 00 to 01 5 Volume Control 00 to 64 6 [Contrast]...

  • Page 32: Transmission / Receiving Protocol

    Transmission / Receiving Protocol 1 Power (Command: k a) ►To control Power On/Off of the set. (Depending on Model) Transmission Transmission (k)(a)( )([Set ID])( )([Data])(Cr) (Command1)(Command2)( )([Set ID])( )([Data])(Cr) [Data] 00 : [Off] [Data] 01 : [On] (Command1) : First command to control the TV. (j, k, m or x) (Command2) : Second command to control the TV.
  • Page 33 3 Screen Mute (Command: k d) 6 [Contrast] (Command: k g) ►To select screen mute on/off. ►To adjust screen contrast. You can also adjust contrast in the picture settings. Transmission Transmission (k)(d)( )([Set ID])( )([Data])(Cr) (k)(g)( )([Set ID])( )([Data])(Cr) [Data] 00 : Screen mute off (Picture on) / Video mute off [Data] 01 : Screen mute on (Picture off) Data Min : 00 to Max : 64 [Data] 10 : Video mute on...
  • Page 34 9 [Tint] (Command: k j) 12 Remote Control Lock Mode (Command: k m) ►To adjust the screen tint. ►To lock the front panel controls on the monitor and remote control. You can also adjust tint in the picture settings. Transmission Transmission (k)(m)( )([Set ID])( )([Data])(Cr) (k)(j)( )([Set ID])( )([Data])(Cr)
  • Page 35 15 [Energy Saving] (Command: j q) 17 [Equalizer] (Command : j v) ►To reduce the power consumption of the TV. You can also adjust ►To adjust equalizer. Energy Saving in picture settings. Transmission Transmission (j)(v)( )([Set ID])( )([Data])(Cr) (j)(q)( )([Set ID])( )([Data])(Cr) Power Saving Level Function...
  • Page 36 18 Tune Command (Command: m a) 19 Programme [Skip/Add] (Command: m b) ►Select channel to following physical number. ►To set skip status for the current Programme. Transmission Transmission (m)(a)( )([Set ID])( )([Data] 00)( )([Data] 01)( )([Data] 02)(Cr) (m)(b)( )([Set ID])( )([Data])(Cr) [Data] 00 : High channel data [Data] 00 : [Skip] [Data] 01 : Low channel data...

  • Page 37: External Input

    22 [Input] select (Command: x b) (Main Picture Input) * Real data mapping ►To select input source for main picture. 00 : Step 0 Transmission (x)(b)( )([Set ID])( )([Data])(Cr) Step 10 ([Set ID] 10) [Data] Structure Step 15 ([Set ID] 15) 10 : Step 16 ([Set ID] 16) 64 :...
  • Page 38 The model and serial number of the product are located on the back and on one side of the product. Record them below in case you ever need service. MODEL SERIAL NO.
  • Page 39 ‫ﺗﺟﺩ ﻁﺭﺍﺯ ﺍﻟﻣﻧﺗﺞ ﻭﺭﻗﻣﻪ ﺍﻟﺗﺳﻠﺳﻠﻲ ﻋﻠﻰ ﺍﻟﺟﻬﺔ ﺍﻟﺧﻠﻔﻳﺔ ﻣﻧﻪ ﻭﻋﻠﻰ‬ .‫ﺃﺣﺩ ﺟﻭﺍﻧﺑﻪ. ﺩﻭ ّ ﻧﻬﻣﺎ ﺃﺩﻧﺎﻩ ﻓﻲ ﺣﺎﻝ ﺍﺣﺗﺟﺕ ﺇﻟﻰ ﺃﻱ ﺧﺩﻣﺔ‬ ‫ﺍﻟﻁﺭﺍﺯ‬ ‫ﺍﻟﺭﻗﻡ ﺍﻟﺗﺳﻠﺳﻠﻲ‬...
