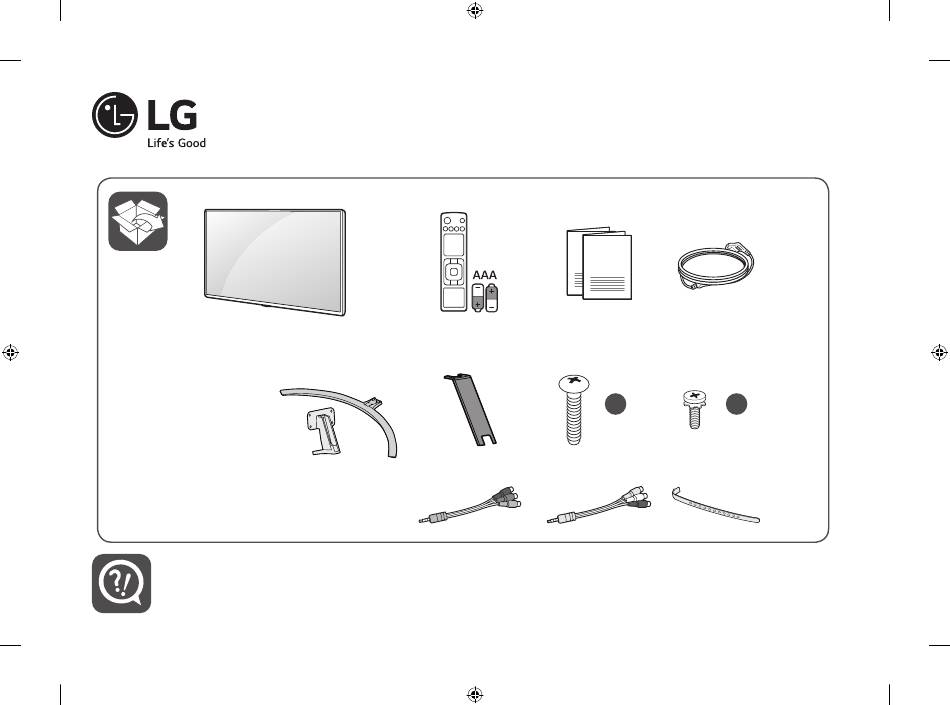

- Page 1 LED TV 65UT761H0CB (M5 x L25) (M4 x L12) Head washer www.lg.com...
- Page 9 65UT761H0CB 1451 323.7 25.8 24.1...
- Page 13 OWNER’S MANUAL Safety and Reference LED TV* * LG LED TV applies LCD screen with LED backlights. Please read this manual carefully before operating your set and retain it for future reference. www.lg.com Copyright © 2019 LG Electronics Inc. All Rights Reserved.
- Page 14 Warning! Safety instructions • Ventilation - Install your TV where there is proper ventilation. Do not install in a confined space such as a bookcase. - Do not install the product on a carpet or cushion. - Do not block or cover the product with cloth or other materials while CAUTION unit is plugged in.
- Page 15 • Use only an authorized attachments / accessories approved by LG Electronics. Otherwise, this may result in fire, electric shock, malfunction, or product damage. • Never disassemble the AC adapter or power cord. This may result in fire or electric shock.
-
Page 16: Separate Purchase
200 x 200 300 x 300 Standard screw Number of screws LSW240B OLW480B Wall mount bracket MSW240 MSW240 Model 65UT761H0CB 75UT761H0CA VESA (A x B) (mm) 300 x 300 600 x 400 Standard screw Number of screws Wall mount bracket OLW480B LSW640B... -
Page 17: Lifting And Moving The Tv
Lifting and Moving the TV • Avoid touching the screen at all times, as this may result in damage to the screen. • Do not move the TV by holding the cable holders, as the Please note the following advice to prevent the TV from being scratched cable holders may break, and injuries and damage to the or damaged and for safe transportation regardless of its type and size. -
Page 18: Attaching The Tv To A Desk
Attaching the TV to a Desk Using the Kensington Security System (optional) (Depending on model) The TV should be attached to a desk so it cannot be pulled in a forward/ (Depending on model) backward direction, potentially causing injury or damaging the product. The Kensington security system connector is located at the rear of the TV. -
Page 19: Mounting On A Wall
We recommend the use of LG’ s wall mount bracket. LG’ s wall mount bracket is easy to move with cables connected. When you do not use LG’ s wall mount bracket, please use a wall mount bracket where the device is adequately secured to the wall with enough space to allow connectivity to external devices. -
Page 20: External Devices
Connections Some USB Hubs may not work. If a USB device connected through a USB Hub is not detected, connect it directly to the USB port on the TV. Connect various external devices to the TV and switch input modes to •... -
Page 21: External Speakers
External Speakers Method of volume control port (Depending on model) • Cable Spec. Each Up / Down pin is pulled to 3.3 V with CPU GPIO. EXTERNAL SPEAKER OUT GND / UP / DOWN STEREO CPU detects transition (8 ) from 3.3 V to GND level for volume control. -
Page 22: Using The Button
Using the Button Network setup (Depending on model) You can simply operate the TV functions, using the button. Wired network connection This TV can be connected to a Pro:Centric server via the port. After making the physical connection, the TV needs to be set up for network communication. -
Page 23: Adjusting The Angle Of The Tv To Suit View
Adjusting the Angle of the TV to suit view (Depending on model) Swivel 20 degrees to the left or right and adjust the angle of the TV to suit your view. 20˚ 20˚ • When adjusting the angle of the product, watch out for your fingers. -
Page 24: Troubleshooting
Troubleshooting * To use the button, press and hold for more than 3 seconds. (Power) Turns the TV on or off. The software version can be updated for improvement in performance. Adjusts the brightness of the Customer needs to ensure the compatibility of customer’ s equipment screen to reduce energy consumption. - Page 25 • The TV turns off suddenly. Generated sound - Check the power control settings. The power supply may be • “Cracking” noise: A cracking noise that occurs when watching or interrupted. turning off the TV is generated by plastic thermal contraction due to temperature and humidity.
-
Page 26: Specifications
Specifications • The annual energy consumption indicated on the energy label is measured in accordance with IEC 62087 and the Hong Kong Energy Efficiency Labelling Scheme (EELS). • The actual energy consumption depends on the usage environment (the content watched, TV settings, etc.). Broadcasting Specifications Digital TV Analogue TV... - Page 27 HDMI-DTV supported mode HDMI-PC supported Mode • PC audio is not supported. Horizontal Vertical Frequency Resolution • Use HDMI IN 1 for PC mode. (Depending on model) Frequency (kHz) (Hz) 31.46 59.94 Horizontal Vertical Frequency 640 x 480p Resolution 31.5 Frequency (kHz) (Hz) 31.47...
-
Page 28: Supported Audio Formats
Component port connecting Supported Audio Formats information File Item Info Format Component ports on the TV Bit rate 32 Kbps - 320 Kbps Sample freq. 16 kHz - 48 kHz .mp3 Support MPEG1, MPEG2 Video output ports on DVD player Channels mono, stereo Bit rate... -
Page 29: Supported Video Formats
• ULTRA HD Video: 3840 x 2160, 4096 x 2160 • Some HEVC encoded ULTRA HD videos other than the content officially Extension Codec provided by LG Electronics may not be played. VC-1 Advanced Profile (except for WMVA), • Some codecs can be supported after a software upgrade. Video VC-1 Simple and Main Profiles .asf... -
Page 30: Key Codes
Key Codes • This feature is not available for all models. Code (Hexa) Function Note Code (Hexa) Function Note R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button R/C Button (Blue) R/C Button R/C Button R/C Button (Arrow Key / Right Key) (Yellow) R/C Button... -
Page 31: External Control Device Setup
(PC) (PC) (TV) • LGTV supports PL2303 chip-based (Vendor ID: 0x0557, Product ID: 0x2008) USB to serial converter which is not made nor provided by LG. RS-232C IN (CONTROL & SERVICE) • It can be purchased from computer stores that carry accessories for IT support professionals. -
Page 32: Type Of Connector: D-Sub 9-Pin Male
Type of connector: D-Sub 9-Pin male RS-232C (Serial port) RS-232C Configurations 7-Wire Configurations (Standard RS-232C cable) 3-Wire Configurations (Not standard) D-Sub 9 D-Sub 9 D-Sub 9 D-Sub 9 Set ID For Set ID number, see “Real Data Mapping”. 1 Press ) to access the main menus. -
Page 33: Communication Parameters
Communication Parameters • Baud rate: 9600 bps (UART) • Stop bit: 1 bit • Data length: 8 bits • Communication code: ASCII code • Parity: None • Use a crossed (reverse) cable. Command reference list (Depending on model) Data Command1 Command2 (Hexadecimal) 1 Power... -
Page 34: Transmission / Receiving Protocol
Transmission / Receiving Protocol 1 Power (Command: k a) ► To control Power On/Off of the set. (Depending on Model) Transmission Transmission (k)(a)( )([Set ID])( )([Data])(Cr) (Command1)(Command2)( )([Set ID])( )([Data])(Cr) [Data] 00: [Off] [Data] 01: [On] (Command1): First command to control the TV. (j, k, m or x) (Command2): Second command to control the TV. - Page 35 3 Screen Mute (Command: k d) 6 [Contrast] (Command: k g) ► To select screen mute on/off. ► To adjust screen contrast. You can also adjust contrast in the picture settings. Transmission Transmission (k)(d)( )([Set ID])( )([Data])(Cr) (k)(g)( )([Set ID])( )([Data])(Cr) [Data] 00: Screen mute off (Picture on) / Video mute off Data Min: 00 to Max: 64 [Data] 01: Screen mute on (Picture off)
- Page 36 12 Remote Control Lock Mode (Command: k m) 9 [Tint] (Command: k j) ► To adjust the screen tint. ► To lock the front panel controls on the monitor and remote control. You can also adjust tint in the picture settings. Transmission Transmission (k)(m)( )([Set ID])( )([Data])(Cr)
- Page 37 15 [Energy Saving] (Command: j q) 17 [Equalizer] (Command: j v) ► To reduce the power consumption of the TV. You can also adjust ► To adjust equalizer. Energy Saving in picture settings. Transmission Transmission (j)(v)( )([Set ID])( )([Data])(Cr) (j)(q)( )([Set ID])( )([Data])(Cr) Power Saving Level Function...
- Page 38 18 Tune Command (Command: m a) 19 Programme [Skip]/[Add] (Command: m b) ► Select channel to following physical number. ► To set skip status for the current Programme. Transmission Transmission (m)(a)( )([Set ID])( )([Data] 00)( )([Data] 01)( )([Data] 02)(Cr) (m)(b)( )([Set ID])( )([Data])(Cr) [Data] 00: High channel data [Data] 00: [Skip] [Data] 01: Low channel data...
-
Page 39: External Input
22 [Input] select (Command: x b) (Main Picture Input) * Real data mapping ► To select input source for main picture. Step 0 Transmission Step 10 ([Set ID] 10) (x)(b)( )([Set ID])( )([Data])(Cr) [Data] Structure Step 15 ([Set ID] 15) Step 16 ([Set ID] 16) Step 100 External Input... - Page 40 Period = 1.2 If not use the remote-controller with data formats recommended, IR output signals will be suppressed automatically by IR receiver. In this case, LG does not guarantee IR working function. To make sure of this matter, here are two methods as below.
-
Page 41: Open Source Software Notice Information
LG Electronics will also provide open source code to you on CD-ROM • Using cabinets or stands recommended by the manufacturer of the for a charge covering the cost of performing such distribution (such television set. - Page 42 Record the model number and serial number of the TV. Refer to the label on the back cover and quote this information to your dealer when requiring any service. MODEL SERIAL NO.
