- Page 1 LEFEIRC SN-AAT Instructions Firmware 3.3 By jwtfpv...
-
Page 2: Table Of Contents
Contents Introduction ..................................1 Setup ....................................1 Appendices ..................................2 Abbreviations ................................2 Buttons ..................................3 Menu ..................................... 4 Page 1 ..................................4 Page 2 ..................................4 Ports ....................................5 Settings ..................................6 Settings Default ................................7 Settings Explained ................................. 8 Broadcast 1 ................................ -
Page 3: Introduction

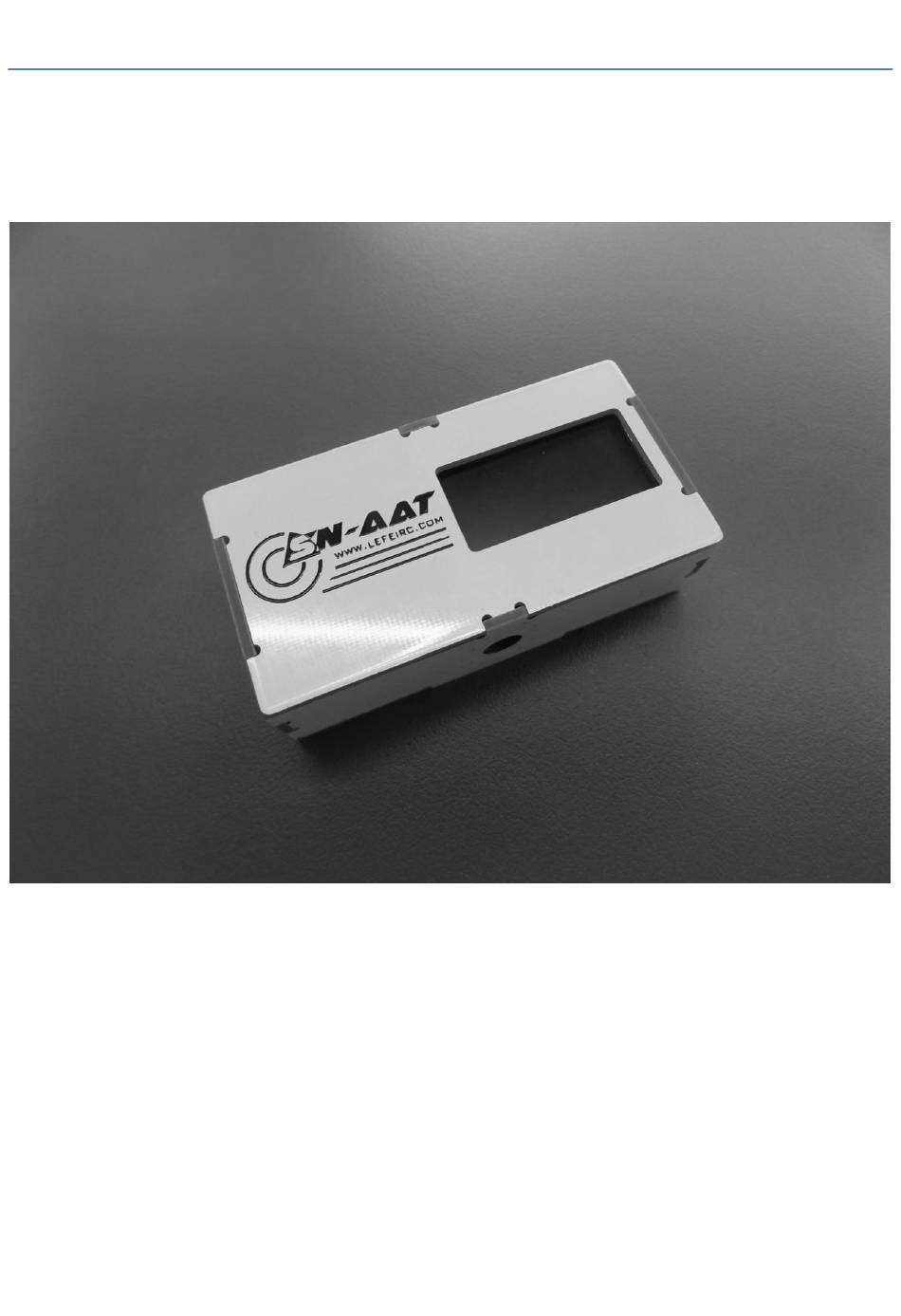

Introduction Thank you for purchasing the LEFEIRC SN-AAT. This product must be used in conjunction with LEFEIRC SN-L Sinan. Setup 1. Power on. 2. Navigate to Settings and adjust to default. 3. Power cycle. 4. Navigate to Settings > Angle Calibration > Step One and centre pan servo. -
Page 4: Appendices
Appendices Abbreviations Auto Antenna Tracker Global Positioning System OLED Organic Light Emitting Diode Video Receiver... -
Page 5: Buttons
Buttons Switch menu. Increase item. Hold (≈3s) to turn off or on tracking. Down Switch menu. Decrease item. Back Exit setting(s). Enter Enter setting(s). Hold (≈3s) to enter compass calibration. -
Page 6: Menu
Menu Page 1 Voltage Voltage AAT 14.8V 11.1V Speed Altitude 50km/h 100m Distance Direct Distance North 500m 300m Satellites AAT Distance East 400m Page 2 0.002694 Latitude Model 0.003593 Longitude 0.000000 Latitude 0.000000 Longitude... -
Page 7: Ports
Ports... -
Page 8: Settings
Settings 播报一 高度 Broadcast 1 Altitude 距离 Distance 模式 Mode 位置东 Position East 位置北 Position North 速度 Speed 电压 Voltage 播报二 高度 Broadcast 2 Altitude 距离 Distance 模式 Mode 位置东 Position East 位置北 Position North 速度 Speed Voltage 电压 播报三 高度... -
Page 9: Settings Default
Settings Default 播报一 高度 Broadcast 1 Altitude 播报二 距离 Broadcast 2 Distance 播报三 模式 Broadcast 3 Mode 播报四 位置东 Broadcast 4 Position East 端口模式 Port Mode Extern Extern 方向偏置 Direction Bias 0° 0° 俯仰偏置 Pitch Bias 0° 0° 角度校准 Angle Calibration 舵机模式... -
Page 10: Settings Explained
Settings Explained Broadcast 1 Select announcement 1. Broadcast 2 Select announcement 2. Broadcast 3 Select announcement 3. Broadcast 4 Select announcement 4. Port Mode Select Mavlink port output. Port Mode Mavlink Port Extern Mavlink Serial Voice Audio Direction Bias Adjust pan servo offset. Pitch Bias Adjust tilt servo offset. -
Page 11: Angle Calibration
Angle Calibration Calibrate pan and tilt servos. Step One Step Two Step Three Step Four Steering Gear Mode Turn off or on tracking. Compass Switch Turn off or on internal compass. Voltage Calibration Adjust AAT voltage. Voltage Battery Voltage AAT Voltage Calibration 11.1V 11.2V... -
Page 12: Direction Angle 1
Direction Angle 1 Adjust pan servo limit. Direction Angle 2 Adjust pan servo opposite limit. Pitch Angle 1 Adjust tilt servo limit. Pitch Angle 2 Adjust tilt servo opposite limit.
