lefeirc SN-L User Manual

lefeirc SN-L User Manual

Fixedwingflightcontroller+pixel osd
Hide thumbs Also See for SN-L:

Advertisement

Quick Links

SN-L

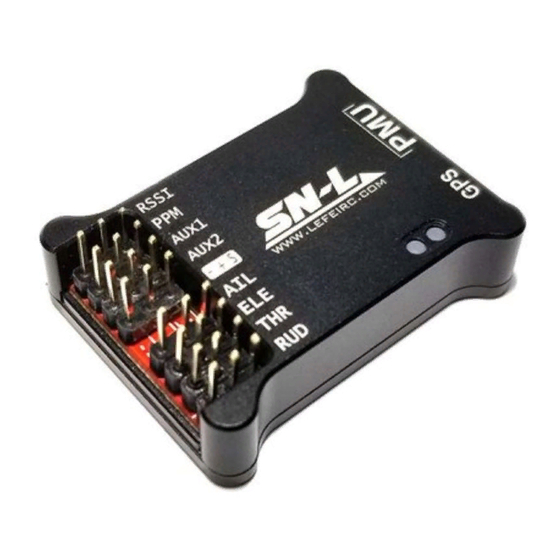

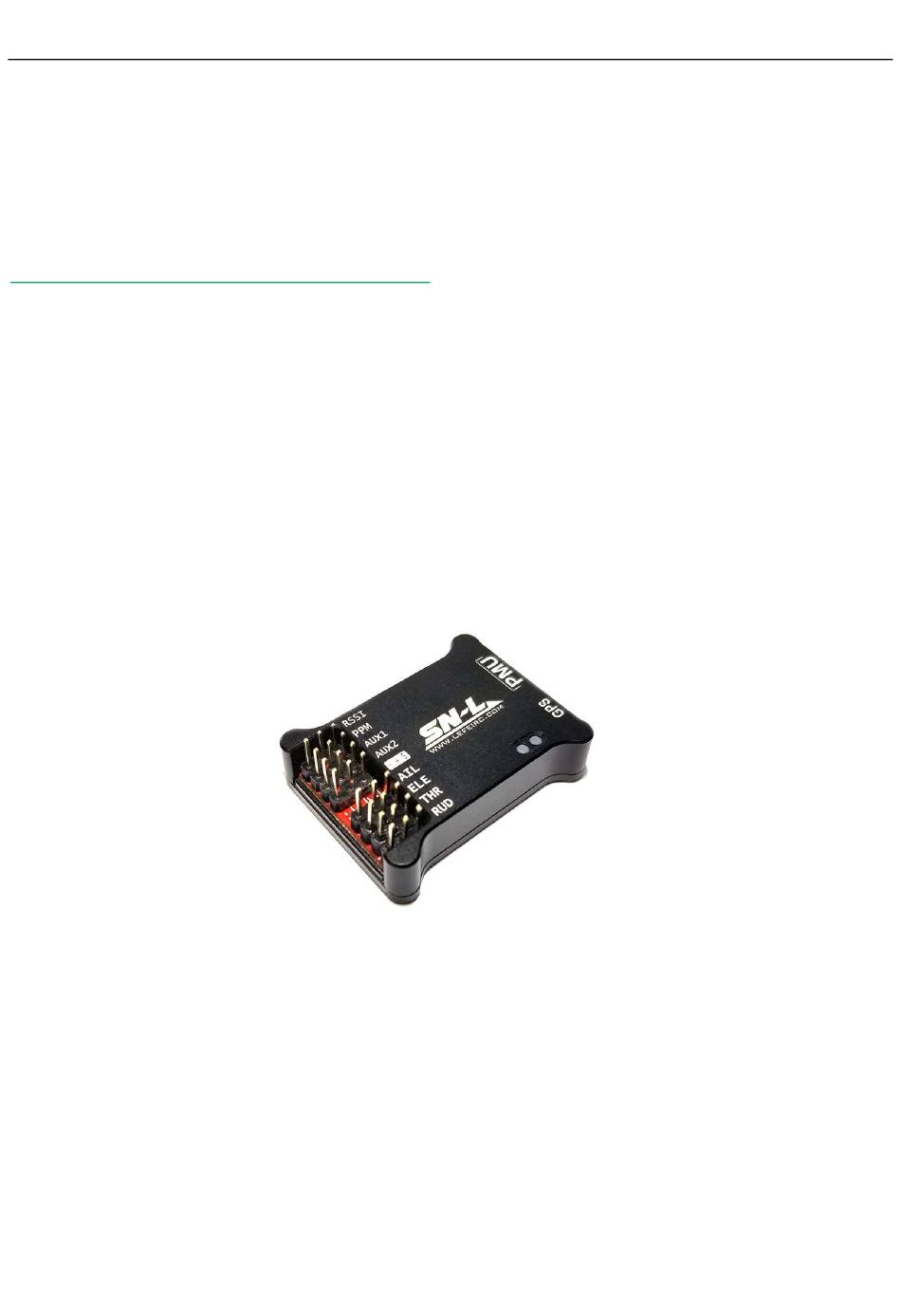

FixedWingFLightController + Pixel OSD
SN-L user manual
Ver 2.5
FW 5.8+
LeFeiRC
2019/1/10
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN-L and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for lefeirc SN-L

  • Page 1 SN-L user manual SN-L FixedWingFLightController + Pixel OSD Ver 2.5 FW 5.8+ LeFeiRC 2019/1/10...
  • Page 2 SN-L user manual WARING: Please strictly observe the relevant national laws and regulations for safe flight. We do not advocate flying high, flying far, experience the fun of the model airplane in a fully safe environment, and create a good environment for model airplane sports! Before using the flight control, you must fully understand the various safety details and deeply understand that the flight is risky.
  • Page 3 SN-L user manual INTERFACE RSSI Connect to receiver RSSI channel Connect to SBUS/PPM Extend other functional interfaces Extend other functional interfaces Aileron servo interface Elevator servo interface / Airspeed interface ESC interface RUD servo interface Connect to GPS Power/Camera/VTX/Current, all in one interface ...
  • Page 4 SN-L user manual cancel the RTH mode is to switch the mode switch once. If you do not cancel, you can dial the mode switch several times. SWITCH FLGHT MODE SN_L sets the RC channel 5 as the main mode switch, so the 5 channel of the RC must be set to a three-segment switch;...
  • Page 5 SN-L user manual ③ CORRECT CONTROL SURFACES MOVEMENT Speed unit’ Km/h’ or ‘Mile/h’; Distance unit ‘m’ or ’Ft’. flight summary after landing REMOTE CONTROLLER  CALIBRATE RC Make sure the 5th channel as mode switch is a three-segment switch. When a new RC is connected to the FC, it will pop up a calibration screen: Page1:reset all channels,flip mode switch enter next step...
  • Page 6 SN-L user manual ENTER OSD MENU <BASE FUNCTION> - <FAILSAFE MODE> GPS connect, satellites>6 GPS disconnect/GPS lose signal FAILSAFE MODE Hold current mode Hold current mode HOLD Return to home Switch to stab mode, close throttle, Circling down① Switch to stab mode, close throttle, Circling...
  • Page 7 SN-L user manual  CALIBRATE LEVEL <SENSOR> - <CALI LEVEL> ① Horizontal calibration is required after changing the mounting direction. ② If you have not calibrated for a long time or the temperature difference has changed too much, you need to recalibrate.
  • Page 8 SN-L user manual Firmware upgrade  Download upgrade software and drivers and install:install “CP210x USB to UART Bridge” driver https://github.com/HelloLeFei/SN_L/releases www.lefeirc.com  : Connect via USB Select correct com ID.  Upgrade SN_L Step1: power off FC at first Step2: Select “SN_L”...
