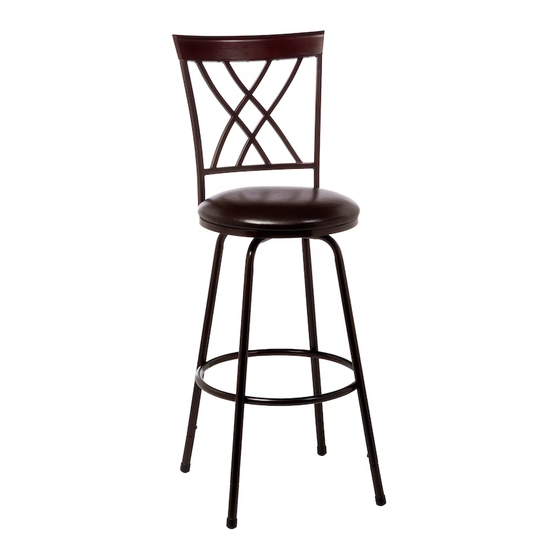

Hillsdale Furniture EASTMAN ADJUSTABLE BARSTOOL 5350-830 Assembly Instructions

Examine all packaging material for small parts that may have come loose during shipment. Periodic checks are recommended to insure that all
components are in proper position, tight and free from damage. Keep this assembly instruction for future reference. Adult assembly is required.
The product of Hillsdale Furniture, LLC is designed for residential use only. Customer Service Phone Number: 502-562-0000
HARDWARE LIST
A (4) 1/4" x 12mm Bolts
B (4) 1/4" x 32mm Bolts
C (2) 1/4" x 35mm Bolts
D (2) 1/4" x 28mm Bolts
E (4) 1/4" x 25mm Sunk Bolts
F (2) Hex Nuts
G (8) Spring Washers
H (8) Flat Washers
I (1) Allen Wrench
J (1) Hex Wrench
PARTS LIST
L (1) Top Leg Panel
M (1) Bottom Leg Panel
N (1) Support Ring
O (1) Seat Base
P (1) Back
Q (4) Feet
R (4) Foot Caps
M
FIGURE 1
R
CARE & MAINTENANCE: The touch of a soft cloth is all the maintenance the finish will ever need. Please do not use harsh or abrasive cleaners for polishing,
as they may cause damage to the finish. Periodic checks are recommended to make sure that all bolts, screws and nuts are securely tightened.
EASTMAN (NORTHLAND) ADJUSTABLE BARSTOOL
Model #5350-830 Eastman Adjstable Barstool
Model #5350-831 Northland Adjustable Barstool
PART
A
C
E
G
I
L
STEP 1 - Figure 1
Begin assembly by lining up
the Top Leg Panel (L) over
the Bottom Leg Panel (M)
perpendicularly.
STEP 2 - 26" Stool Only - Figure 1
Slide the Foot Caps (R) on to the
ends of the Leg Panels (L & M).
STEP 2 - 30" Stool Only - Figure 2
Slide the Feet (Q) on to the ends of the
Leg Panels (L & M) and secure each
QTY HARDWARE
4
2
4
8
1
with 1 Bolt (A).
PART QTY
B 4
D 2
F 2
H 8
J 1
Q
FIGURE 2
A A
Q
A A
M
Date: 06-08-2015
Page 1 of 2
HARDWARE
Q
A A
Q
A A
L
