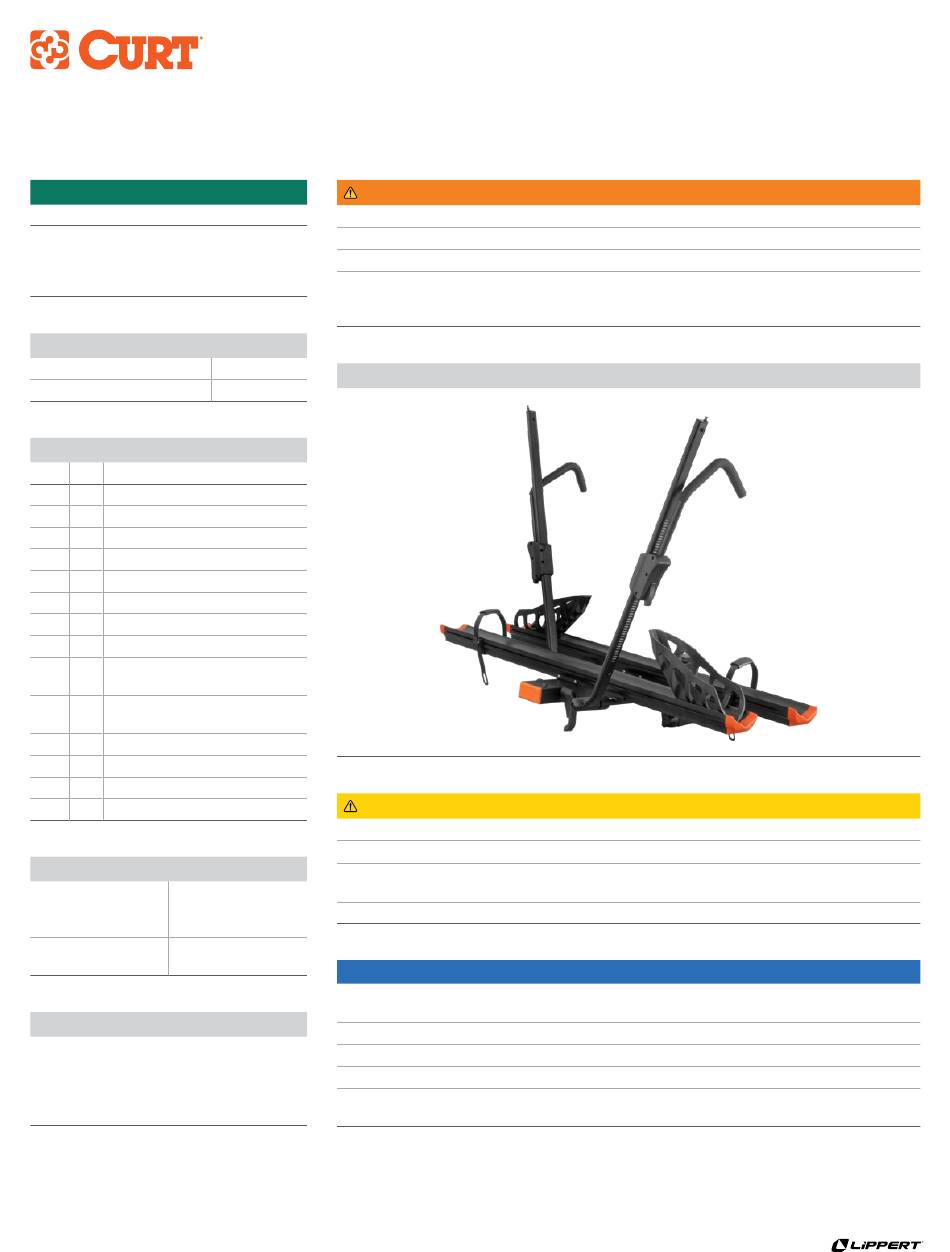

INSTALLATION MANUAL
Level of Difficulty
Easy
Installation difficulty levels are based on time
and effort involved and may vary depending on
the installer level of expertise, condition of the
vehicle and proper tools and equipment.
Weight Carrying Capacity
1 bike
2 bikes
Parts List
Item Qty Description
1
2
Tray assembly
2
1
Shank assembly
3
2
Tire / frame hook assembly
4
2
Wheel basket
5
2
Tray spacer
6
2
Wheel strap sleeve
7
2
Key
8
1
Clevis pin, 1/2"
9
2
Button head cap screw,
M6–1.0 x 10mm
10
4
Button head cap screw,
M8–1.25 x 35mm
11
4
Nylock nut, M8–1.25
12
4
Carriage bolt, 3/8"-16 x 4"
13
4
Flat washer, 3/8"
14
4
Nylock nut, 3/8"-16
Tools Required
Torx wrench, T-27
Box wrench,
(included)
13mm / 14mm
(included)
Hex drive wrench,
--
5mm (included)
Product Registration and Warranty
CURT stands behind our products with
industry-leading warranties. To get copies
of the product warranties, register your
purchase or provide feedback, visit:
warranty.curtgroup.com/surveys
CURTMFG.COM
•
PRODUCT SUPPORT: 877.287.8634
WARNING
Never exceed the vehicle manufacturer's recommended towing capacity.
Never exceed the product's weight capacity.
Do not modify or use this accessory for purposes other than for which it was designed.
It is the user's responsibility to adhere to all state and federal laws regarding
obstruction of vehicle lighting (i.e. brake lights, taillights, turn signals
and backup lights) and license plate when using this accessory.
65 lbs.
Product Photo
130 lbs.
CAUTION
This product is not designed for off-road use.
Do not install this product on a trailer or towed vehicle.
When transporting heavier bikes such as e-bikes and tilting the rack for rear vehicle
access is necessary, a team lift may be required to prevent injury and / or product damage.
Always be mindful of accessories extending beyond vehicle when operating.
NOTICE
Visit www.curtmfg.com for a full-color copy of this
instruction manual, as well as helpful videos, guides and much more!
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Remove this accessory before entering automatic car washes.
Periodic inspection of your product should be performed
to ensure all hardware and / or components remain secure.
•
18088-INS-RA
•
07/06/2021
•
ECN7705
•
PAGE 1
18088
Advertisement
Related Manuals for Lippert Curt 18088
Summary of Contents for Lippert Curt 18088
- Page 1 INSTALLATION MANUAL 18088 Level of Difficulty WARNING Easy Never exceed the vehicle manufacturer's recommended towing capacity. Installation difficulty levels are based on time Never exceed the product's weight capacity. and effort involved and may vary depending on Do not modify or use this accessory for purposes other than for which it was designed. the installer level of expertise, condition of the It is the user's responsibility to adhere to all state and federal laws regarding vehicle and proper tools and equipment.
- Page 2 ASSEMBLY Parts List Item Qty Description Tray assembly Shank assembly Tire / frame hook assembly Wheel basket Tray spacer Wheel strap sleeve Clevis pin, 1/2" Button head cap screw, M6–1.0 x 10mm Button head cap screw, M8–1.25 x 35mm Nylock nut, M8–1.25 Carriage bolt, 3/8"-16 x 4"...
- Page 3 Step 1 Place an M8 nylock nut (#11) into each hex-shaped hole on one of the wheel baskets (#4) as shown. Place the wheel basket (#4) onto one of the tray assemblies (#1), aligning the wheel basket holes with those in the tray. Ensure the tallest portion of the wheel basket is positioned towards the center of the tray assembly.
-
Page 4: Installation And Use
Step 4 Orientate the tray assembly with the CURT logo onto the shank assembly (#2) as shown. Align the tray holes with those in the shank assembly. Place a tray spacer (#5) onto the tray, aligning its holes with those in the tray. Insert two 3/8" carriage bolts (#12) through the spacer, tray and shank assembly. - Page 5 Step 7 To adjust the rack between vertical, horizontal and tilted positions, squeeze the trigger on the handle and rotate clockwise. Adjust the rack position and release the handle. A 'click' will be heard when the rack reaches its horizontal or vertical position.
- Page 6 Step 10 Position the wheel strap to be centered on the bike's rear wheel. Insert the strap into the latch as shown. Adjust the wheel strap sleeve (#6) over the wheel and pull the strap firmly through the latch. To remove the strap, press and hold the release lever while pulling the strap from the latch.
