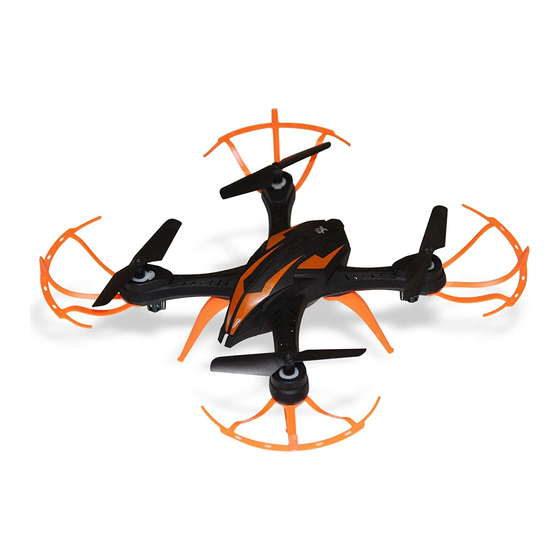

- Page 1 Remote Control Drone Owner'sManual 且归日却因UA士北M昢 画 咖 l咄 哗 Model: LH-X15...
-
Page 2: Fcc Information
FCC INFORMATION: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide residential protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. -
Page 3: Location Of Controls
LOCATION OF CONTROLS: Main Unit: 1. Blades 2. Camera 3. Blade’s Protectors 4. Landing Gears Battery Door/Battery Compartment Micro SD Card Slot Turn on/Turn off button Battery USB Cable Charging Socket Battery Connection Cable/Jack Li-ion battery... -
Page 4: Remote Control
REMOTE CONTROL: Serial Function keys Function / Effect Number Power On/Off Turn On/Off the remote control The power on indicator will be stable when working normal, but it will flash quickly when Power On Indicator low power of remote control. Left Joystick Up/down/turn left/turn right Right Joystick... - Page 5 PREPARATIONS: Battery Recharging: The unit has a DC 3.7V Li-ion rechargeable battery. Recharge it before first time use or when it is low power as follows: Connect the USB charging cable to the battery charging socket on the drone body. Connect the USB charging cable to Personal Computer or AC adaptor (Computer and ,it is suggested the AC adaptor not above 1A.
-
Page 6: Battery Installation
BATTERY INSTALLATION: Main Unit: 1. Use screw driver to open the the battery door. 2. Put the battery into the battery compartment and connect the drone and battery 3. Close the door and fix it with screw. Notes: battery will last longer if you can following these simple guidelines : Before first time use, charge it approximately 60 mins(Computer or 0.5A AC charger approximately 45-60mins, 1A AC charger approximately 30-40mins) until the battery is fulled charged. - Page 7 Remote Remote Remot Remot Remote Control: 1. Speed Looser the screw on the Battery Door by a screwdriver . Low speed: 1 beep Mid speed: 2 beeps Open the battery cover. High speed: 3 beeps 3. Photo/Video Install or replace the batteries by three (3) AAA size batteries (not included) into the battery Photo: short press compartment (Alkaline batteries are recommend for longest playing time).
-
Page 8: Micro Sd Card Installation
ontroller ontroller ontroller ontroller MICRO SD CARD INSTALLATION: 2. Flip The unit is support to take photos/videos then store in a Micro SD Card (not included). (For non-camera version only) Insert a Micro SD Card into the Micro SD Card Slot with contact fingers face to side as the illustrated below: 4. - Page 9 The drone and Remote Control will automatically pairing after both items turn on . After paired successful, the Lights on the drone and remote control will stop blinking, then: Slide the Left Joystick upward twice to start flying and rising. or press the button (One key start/One key take off/One key landing),first press is start, second press is one key take off.
-
Page 10: Blade(S) Replacement
Turn turn off the unit (or take out the battery to recharge), landing it and wait the blades off the unit (or take out the battery to recharge), landing it and wait the blades completely stop turning as instructed earlier. Open the Camera Module/Battery Door then completely stop turning as instructed earlier. -
Page 11: Troubleshooting
TROUBLE SHOOTING: SYMPTOM: POSSIBLE CAUSE POSSIBLE SOLUTION Remote Control not work The batteries are drained. Replace by new batteries. Batteries wrong installed. Reinstall the batteries as the polarity marking inside the battery compartment. The drone not work The battery had Connect the battery to the unit per page 5 and 6. - Page 12 General Specification: Power Source: Unit:......... Supplied DC 3.7V, 380mAh (1.406WH) Li-ion rechargeable battery. Recharge by DC Remote Control:........DC 4.5V, 3 x AAA Size Batteries (Not Included). Effective range of Radio Control:..Up to 100 feet in open area Radio Frequency:......... 2.4GHz Sensor of Camera:........300k Pixels Capture Modes: Photo:...
- Page 14 FCC Caution. (1)§ 15.19 Labelling requirements. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
