P.O Box 578 Casino, NSW, 2470 Australia
Phone: International ++614 2902 9083
Australia (04) 2902 9083
Website:
E mail:

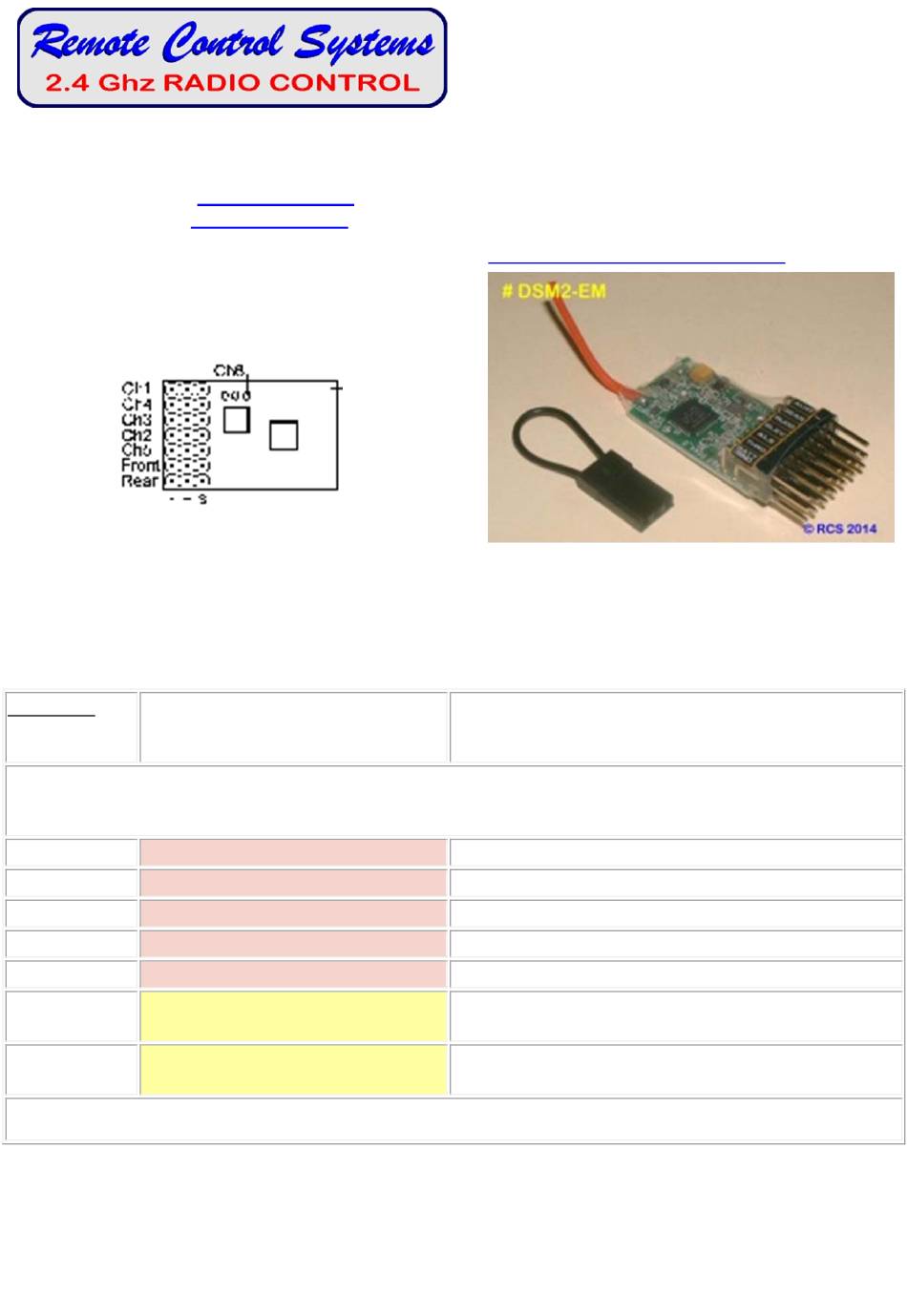

Rx102-1
Manual Bind
2.4 GHz DSM2 Receiver.
INSTRUCTIONS.
1. DESCRIPTION
Compatible with all DSM2/DSMX Transmitters.
Receiver for Live Steam locos. Drives servos & Directional Lights, etc.
Suitable for use with RCS ADVANCED ESC's such as OMEGA-3v4/5/6/7 & PnP-3
2. FEATURES.
Purpose:
Loco with TX-3, TX-7 & TX-9
Normally use Ch # 1 for regulator control. When the loco to be controlled only uses the
Johnson bar for speed and direction plug the Johnson bar servo into Ch # 1 on the RX.
Pin 1:
Ch1 Servo [Throttle]
Pin 2:
Ch4 Servo
Pin 3:
Ch3 Servo [Direction]
Pin 4:
Ch2 Servo
Pin 5:
Ch5 Servo
Pin 6:
Front light
Pin 7:
Used for battery supply when
all 5 x servo outputs in use.
An optional extra prewired 3 mm green LED is available for externally observing binding & programming.
Also available are 3 mm & 5mm High Intensity warm white LED's for loco head and tail lights.
http://rcs-rc.com
Info@rcs-rc.com
TABLE OF CONTENTS
PROVIDED IN INSTRUCTIONS.
Page # 1 Description & Features.
Page # 2 Cruise Control. Binding the RX &
Page # 3 Changing servo settings.
Page # 4 Changing servo settings.
Page # 5 Connecting Servos.
N.B.
COLOUR PDF WIRING INSTRUCTIONS ARE HERE:
http://www.rcs-rc.com/pages/instructions
Lights are programmed for "LOW OFF".
See step # 5 (pg 2) to reset to "CENTRE OFF".
Adjustable throws
Adjustable throws
Adjustable throws
.
.
Auto directional F –light.
(Follows Rx LED when binding).
If Auto directional R-light required, battery
supply can use HT-7351 parallel Y extension.
Advertisement
Table of Contents
Related Manuals for Remote Control Systems Rx102-1
Summary of Contents for Remote Control Systems Rx102-1
- Page 1 Website: http://rcs-rc.com Page # 5 Connecting Servos. E mail: Info@rcs-rc.com N.B. COLOUR PDF WIRING INSTRUCTIONS ARE HERE: Rx102-1 http://www.rcs-rc.com/pages/instructions Manual Bind 2.4 GHz DSM2 Receiver. INSTRUCTIONS. 1. DESCRIPTION Compatible with all DSM2/DSMX Transmitters. Receiver for Live Steam locos. Drives servos & Directional Lights, etc.
- Page 2 - 2 - 3. CRUISE CONTROL / FAILSAFE. Outputs do nothing (are not driven) on start up while scanning for a signal. Outputs “hold” on signal loss or the Transmitter is switched off (Cruise Control). 4. BINDING. a). When first binding to the TX. To avoid any damage to the servos we recommend disconnecting the servo rods in case they are incorrect.
- Page 3 - 3 - 6. CHANGING SERVO SETTINGS. Default servo direction, servo throws and servo centering of channels associated with Pin # 1, Pin # 2 & Pin # 3 can be changed at any time. One change per RX switch ON. Make a single change and then start again. These processes are in THREE PHASES.
- Page 4 - 4 - Adjusting servo throws and centering. The RX LED will flash and throws will change one step per second while plug is installed. The RX LED stays on for 3 seconds when throws are returned to their “Mid” position. The RX LED stays on solid when you reach the end of the adjustment range.
