P.O Box 578 Casino, NSW, 2470 Australia
Phone: International ++614 2902 9083
Australia (04) 2902 9083
Website:
E mail:

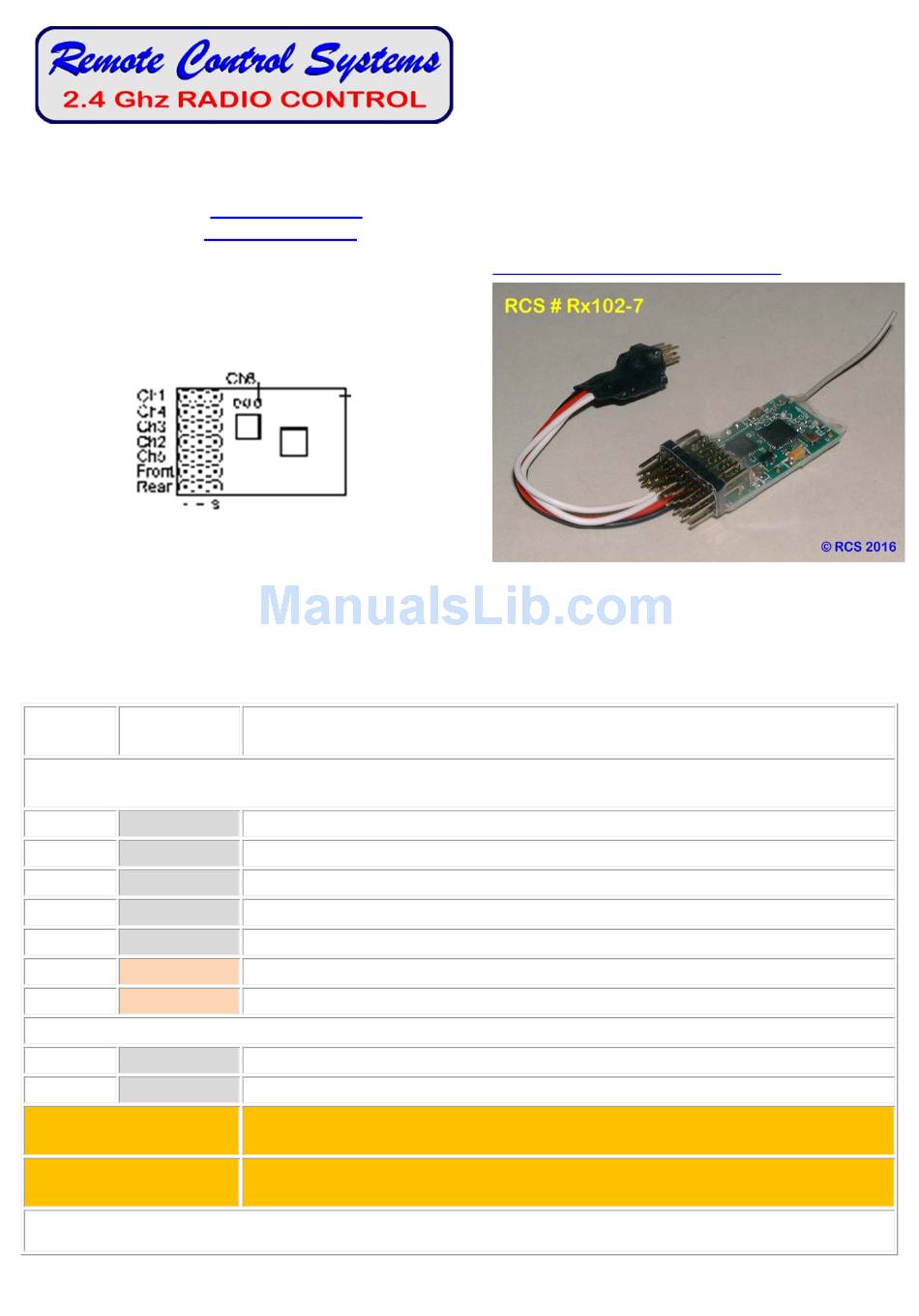

Rx102-7
7 channel Manual Bind
2.4 GHz DSM2 Receiver.
INSTRUCTIONS.
1. DESCRIPTION
Compatible with all DSM2/DSMX Transmitters.
Receiver for Live Steam locos. Drives servos & Directional Lights, etc.
Suitable for use with RCS ADVANCED ESC's such as OMEGA-3v4/5/6/7 & PnP-3
2. FEATURES.
Purpose: Loco with
TX-9 only
Normally use Ch # 1 for regulator control. When the loco to be controlled only uses the
Johnson bar for speed and direction plug the Johnson bar servo into Ch # 1 on the RX.
Pin 1:
Ch1 Servo
Pin 2:
Ch4 Servo
Pin 3:
Ch3 Servo
Pin 4:
Ch2 Servo
Pin 5:
Ch5 Servo
Pin 6:
Front light
Pin 7:
Rear light
The following 2 x channels are accessible on the hard wired module.
Pin 8:
Ch6 Servo
Pin 9:
Ch7 Servo
Battery supply 6
channel.
Battery supply 7
channel.
An optional extra prewired 3 mm green LED is available for externally observing binding & programming.
Also available are 3 mm & 5mm High Intensity warm white LED's for loco head and tail lights.
http://rcs-rc.com
Info@rcs-rc.com
Lights are programmed for "LOW OFF".
See step # 5 (pg 2) to reset to "CENTRE OFF".
[Throttle] Adjustable throws
Adjustable throws
[Direction] Adjustable throws
Not adjustable.
Remove when Binding.
Auto directional F –light.
Auto directional R-light.
Regular Digital Proportional servo control.
Regular Digital Proportional servo control.
Employ any unused terminal.
If all 5 x servo & both directional lighting outputs are in use, fit the
HT-7351 parallel Y extension in any Channel except Pins 5, 6, & 7.
TABLE OF CONTENTS
PROVIDED IN INSTRUCTIONS.
Page # 1 Description & Features.
Page # 2 Cruise Control. Binding the RX &
Page # 3 Changing servo settings.
Page # 4 Changing servo settings.
Page # 5 Connecting Servos.
N.B.
COLOUR PDF WIRING INSTRUCTIONS ARE HERE:
http://www.rcs-rc.com/pages/instructions
Remove when Binding.
Remove when Binding.
