Manufactured for:
Dynarex Corporation
10 Glenshaw Street
Orangeburg, NY 10962
USA • www.dynarex.com
Made in China

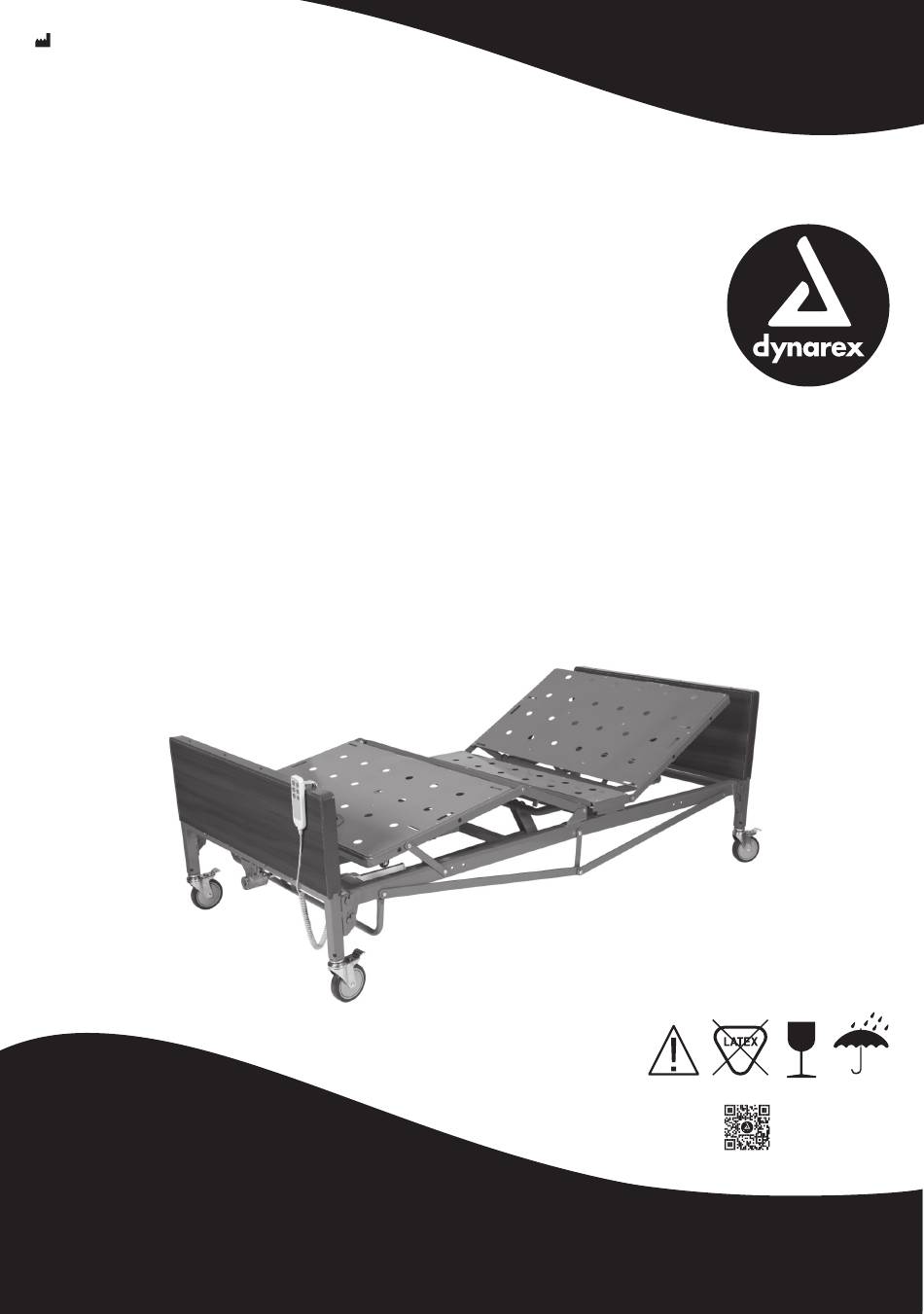

Home Care Bed
with Emergency Hand Crank
Reorder No. 10404
Reorder No. 10405
Full Electric Bed
SYMBOL GLOSSARY
For an explanation of symbols
used in Dynarex packaging, visit
dynarex.com/symbols.php
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for dynarex Home Care Bed
Summary of Contents for dynarex Home Care Bed
- Page 1 Dynarex Corporation Reorder No. 10405 10 Glenshaw Street Orangeburg, NY 10962 USA • www.dynarex.com Made in China Home Care Bed Full Electric Bed with Emergency Hand Crank SYMBOL GLOSSARY For an explanation of symbols used in Dynarex packaging, visit dynarex.com/symbols.php...
-
Page 2: General Warnings
Notices in this manual apply to hazards or unsafe practices which could result in personal injury and/or property damage. To ensure user safety in operating this Home Care Bed, all warnings, safety information and instructions must be followed. Failure to do so may result in serious bodily injury or damage to the bed. - Page 3 GENERAL WARNINGS Keep all cords away from heated or hot surfaces. i.e. radiators, heating pads, portable gas heaters. Do not open assemblies such as the motor, hand control unit, junction box or electrical control box. There are no user serviceable parts inside these components. Only trained service personnel are qualified to repair these parts.
- Page 4 GENERAL WARNINGS wall will occur if the bed contacts the wall, chair rail or other obstruction while in motion. Improper use of some bed accessories (patient restraints, side rails, trapeze devices, etc.) can cause patient injury or death. Consult a health care professional or the accessory manufacturer for proper use instructions.
-
Page 5: Bed Assembly
BED ASSEMBLY UNPACKING THE BED 1. Join the head and foot section. Remove the head deck section of the bed from the packaging and place it on its side to your RIGHT with the center mounting latches on your LEFT. 2. - Page 6 BED ASSEMBLY 6. After the head and foot end sections of the bed are connected, push the decks into a horizontal (straight) position while still on their sides. 7. Attach the boards. Raise the headboard and footboard ¼ inch (6 mm). This can be done by inserting the manual crank into the receptacle on the headboard and footboard and turning the crank clockwise until the bed end is at the correct height.
- Page 7 BED ASSEMBLY 9. Repeat step 8 with the footboard. 10. Insert a clevis pin through the hole between the two rivets to lock the platform and the head frame together. Secure the pin with an R-clip. Repeat the procedure on all 4 corners of the bed. 11.
- Page 8 BED ASSEMBLY 14. Attach the center vertical support bracket to the bed using the nut and bolt supplied. Place a washer between the support bracket and the bed. 15. Connect the 2 diagonal support brackets (one from the head deck and one from the foot deck) to the center Vertical Support Bracket using the nut, washers and bolt supplied.
- Page 9 BED ASSEMBLY 17. Install the drive shaft. Depress push button on the inner shaft and slide the inner shaft to the desired position for the type of bed being used. Ensure that the push button is fully engaged through the proper positioning hole. Connect the drive shaft to the bed by attaching either end of the drive shaft to the head end gear box.
- Page 10 BED ASSEMBLY 20. Install head drive shaft. Align the one end of the head extension shaft with the drive tube on the motor, secure the extension shaft to the tube with a cotter pin. 21. Connect the other end of the extension shaft with the pivot bracket on the head deck. Pivot bracket 22.
- Page 11 BED ASSEMBLY 23. Test all the functions of the bed to ensure the bed operates properly. If any problems arise recheck all electrical connections and mechanical hookups. Depress button Depress button “HEAD “HEAD UP” as shown DOWN” as shown on on pendant control.
- Page 12 MAINTENANCE AND SAFETY CHECKS Safety checks are recommended between patient placements. An annual safety check is recommended. Cleaning and Electric Inspection may be performed by the user. Mechanical Maintenance Inspection should be performed by an authorized technician. Cleaning 1. Unplug power cord before cleaning or performing maintenance on the electric bed. 2.
-
Page 13: Troubleshooting Guide
TROUBLESHOOTING GUIDE SYMPTOM POSSIBLE CAUSE ACTION (See steps for isolating problems) No Power Unit is not connected to A/C power Check plug to receptacle No Power Cut/damaged/pinched power cord Check Power Cord for damage No Power Loose plug for pendant Check pendant connection to control box No Power Cut/damaged/pinched pendant cord... -
Page 14: Maintenance Schedule
MAINTENANCE SCHEDULE Maintenance should be performed at least once every 3 months. This form may be copied and used as a procedural guide and facility documentation. Serial # ___________________________________ Date Inspection Maintenance Cleaning Initials Notes... - Page 15 MAINTENANCE SCHEDULE Maintenance should be performed at least once every 3 months. This form may be copied and used as a procedural guide and facility documentation. Serial # ___________________________________ Date Inspection Maintenance Cleaning Initials Notes...
-
Page 16: Limited Lifetime Warranty
LIMITED LIFETIME WARRANTY Your Dynarex Bed is warrantied to be free of defects in materials and workmanship for five (5) years on structural steel, one (1) year on mechanical parts/components, from original date of purchase, for use by the original purchaser. This item was built to exacting standards and carefully inspected prior to shipment.
