dynarex DynaRest Airfloat 300 User Manual

Reorder No. 10442
USER MANUAL

WARNING

• Do not use this product or any available optional
equipment without first completely reading
and understanding this instruction manual.
• Do not use the product for any purpose not indicated in
this manual.
• Only qualified personnel trained in the treatment and
prevention of bedsores should operate this device.
• Dynarex declines all liability for any consequences
resulting from incorrect use of this product and from
unauthorized alteration of the product.
• The manufacturer reserves the right to change the
information contained in this document without prior notice.
• Do not allow children to play with or operate the pump
or mattress.
• Never operate this product if it has a damaged cord or
plug, if it is not working properly, if it has been dropped
or damaged, or dropped into water. Return the product
to a service center for examination or repair.
• Keep the unit and cord away from heated surfaces
and liquids.
• Never block the air openings of the product or place it
on a soft surface, such as a bed or couch, where the air
openings may be blocked. Keep the air openings free of
lint, hair and the like.
• Never drop or insert any object into any opening or hose.
• Do not use outdoors.
• Connect this product to a properly grounded outlet only.

INTENDED USE

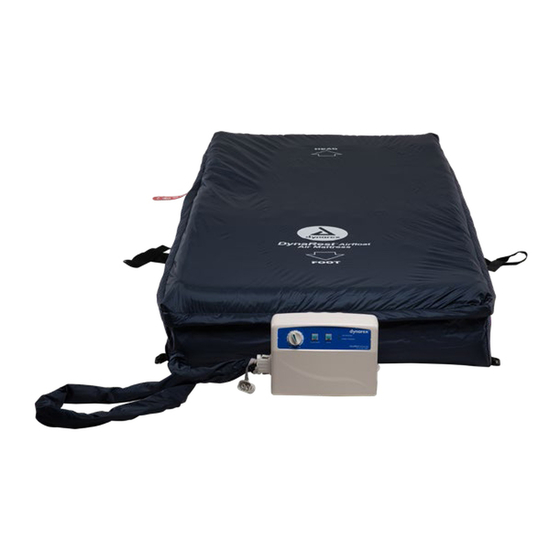

The DynaRest Airfloat 300 Air Mattress with Pump is
™
intended to reduce the incidence of pressure ulcers while
optimizing patient comfort.

PRODUCT FUNCTIONS

Pump
The functions of the pump are described below. Please refer
to the figures of the pump.
Pump
6
5
2
7
(1) Power switch
(2) Pressure adjust knob
(3) Normal Pressure Indicator (green)
(4) Low Pressure Indicator (amber)
(5) Alarm Reset
(6) Static Control
(7) Air Pressure Valve
DynaRest
Air Mattress with Pump
Mattress
4
3
1
(1) Pillow
(2) Cover
(3) Fixing belt
(4) Low air loss holes
Airfloat 300
™
(1) Power Switch
• Turn ON/OFF the power, the pump will
start/stop operation.
(2) Pressure Adjust Knob adjustable by patient's weight
• Turn the Pressure Adjust Knob to set a comfortable
pressure level by using the weight scale as a guide.
(3) Normal Pressure Indicator
• A visible indicator (green) tells the pressure has
reached a preset level.
(4) Low Pressure Indicator
• A visible indicator (amber) warns the pressure is below
a preset level.
(5) Alarm Reset
• The audible/visible alarm turns on when the pressure
is low.
• To mute the audible alarm, press the reset button.
The visible alarm indicator will flash.
• Re-press the reset button to reactivate the alarm.
• The air pressure issue must be corrected in order for
the visible alarm to shut off. Once corrected the
audible/visible alarm function will automatically reset.
Note! In static mode, the mattress provides a
firm surface that makes it easier for the patient
to transfer or reposition. The static mode helps
prevent the patient from bottoming out when in
a sitting position.
(6) Static Control
• Press the Static button to set it in static mode, and the
Static indicator will come on. The static mode will be
started within approximately 6 minutes. Press the Static
button again to switch back to alternating mode.
(7) Air Pressure Valve
• The air pressure valve is located on the left side
of the pump.
• Connect the air tubes securely into the air pressure
valve of the pump.
(5) Male quick connector
(6) Protective cap of connector
(7) Air tubing
(8) CPR valve
