Installation Guide

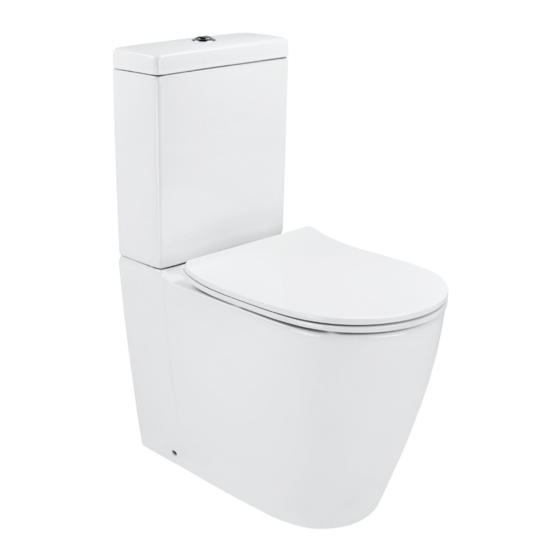

Synergii Toilet Suite
SY04117 (Slim Seat) and SY04127 (Standard Seat)
SY04118 (Slim Seat) and SY04128 (Standard Seat)

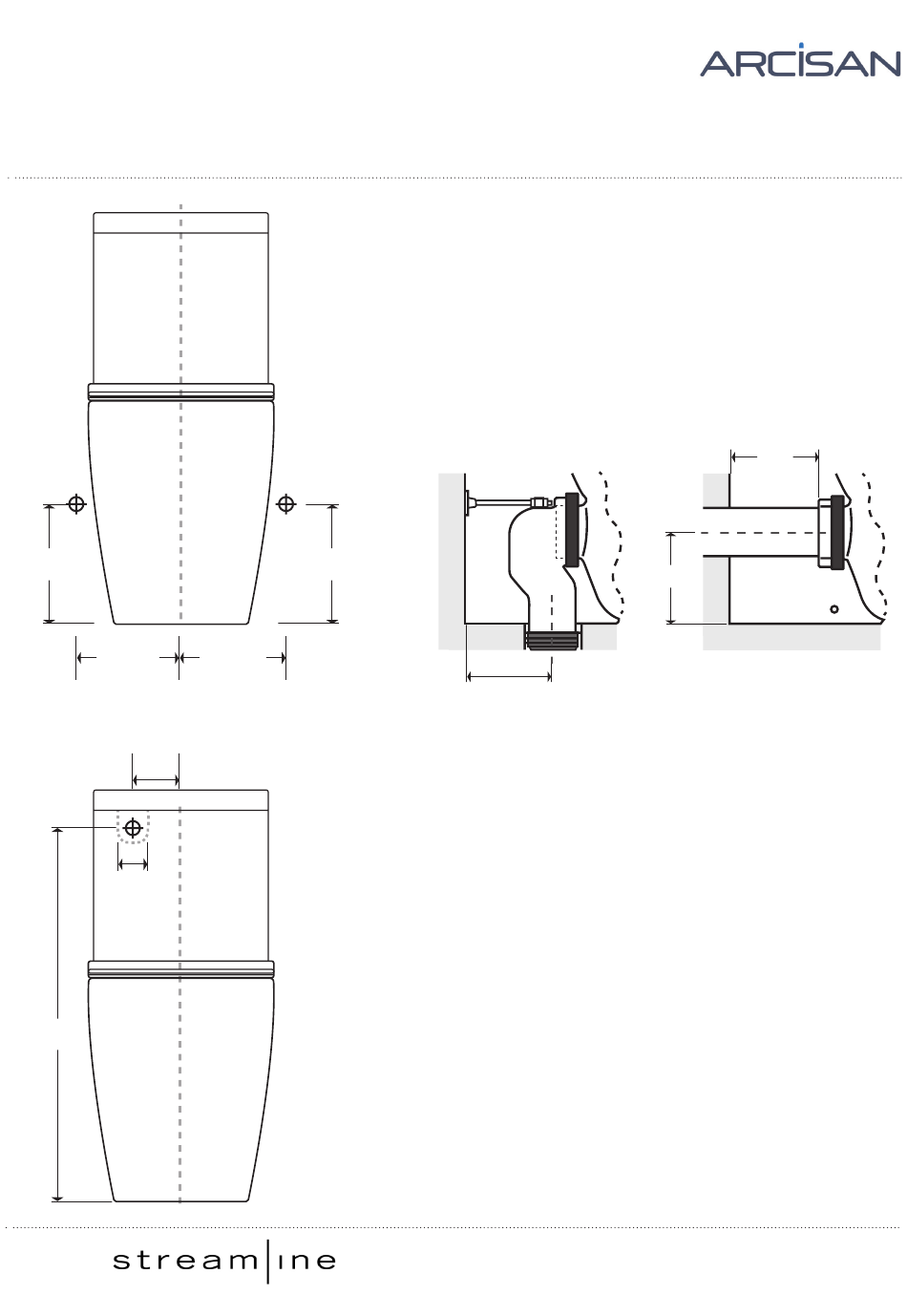

Bottom
Inlet
A
200 max
210
min
100
Back
Inlet
50
B
735
www.streamlineproducts.com.au | Ph: 1300 735 352
200 max
210
min
80-200
Optional elbow for set out 160-220mm (JT34)
This Synergii Bottom Inlet Toilet Suite is designed for
a left or right hand bottom inlet installation.
A 1/2" male thread will need to be plumbed in at the
location shown.
The standard set-out for a S-Trap is 80-200mm.
All distances are from final floor or finished wall.
The installer will need to supply the stop tap.
For bottom inlet the installer will also need to supply
the flexible hose for connection between the inlet and
the stop tap.
A 500mm length flexible hose will suit most installations
but the required length is dependent on the position of
the stop tap.
This product installation must comply to AS/NZS 3500.
Dimensions are in millimeters and are subject to manufacturing variations. Streamline reserves
the right to vary specifications at any time without notice. Information provided within this
installation sheet is correct at the date of printing.
Version: 1.0 - March 2016
210
185
1
Advertisement
Table of Contents
Related Manuals for Arcisan SY04117
Summary of Contents for Arcisan SY04117
- Page 1 Installation Guide Synergii Toilet Suite SY04117 (Slim Seat) and SY04127 (Standard Seat) SY04118 (Slim Seat) and SY04128 (Standard Seat) Bottom Inlet 200 max 200 max 80-200 Optional elbow for set out 160-220mm (JT34) Back This Synergii Bottom Inlet Toilet Suite is designed for Inlet a left or right hand bottom inlet installation.
- Page 2 Place the pan in position ensuring it is centred in accordance with the centre line of the outlet. Mark location of pan fixing bolts. Remove pan, drill holes for fixing bolts and attach brackets. For S Trap installation, cut horizontal pipe to required length and fit seal.
- Page 3 Bottom Inlet Connect flexible hose (not supplied) to inlet pipe at bottom of cistern. Join the inlet mechanism hose Feed hose through hole in pan and locate the cistern onto the to the thread and replace inlet pan. Screw down tightly to ensure a seal between the bolt mechanism.
- Page 4 Push the plastic and metal washers as far down the screw as Seat Install: Insert fixing bolts into holes in the pan. possible, then finger tighten. Once you have positioned the seat in the desired position, open Push seat onto the posts and close lid. Move the seat around the lid and with an 8mm spanner, tighten the posts until the seat until it is square with the pan.
