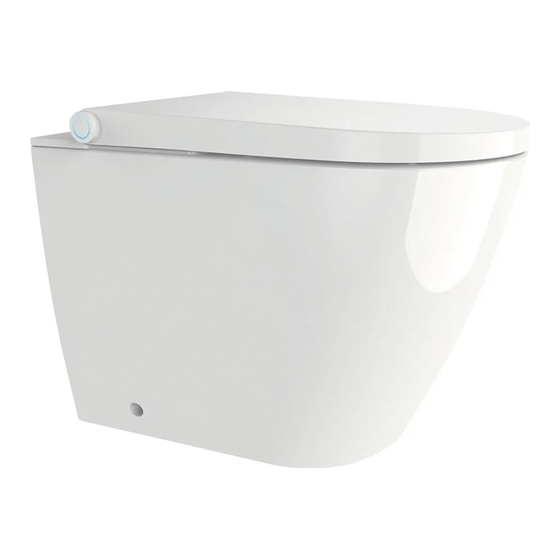

- Page 1 Neion Intelligent Toilet Installation Manual NE041250 & NE041260...
-
Page 2: Table Of Contents
Contents Safety and Installation precautions Electrical Requirements/Installation Bill of material Tools required Installation - Set-outs Installation - Pan and seat Remote Installation The supplier shall not be liable for any loss arising from the failure to comply with the following regulations. - Page 3 Safety Precautions Please read this manual carefully before using and installing the product and keep it for future reference. Negligence or incorrect use of this product can lead to serious injury. The Neion intelligent toilet should not be used by individuals (including children) who lack the experience or knowledge to use it, unless the are monitored by a responsible person or receive instructions on how to use it for their own safety.
-
Page 4: Electrical Requirements/Installation
Electrical Requirements 1. The electrical components of the Neion Intelligent Toilet must be protected by a 10A RCD and a 10A magnothermic switch. Both switches MUST be placed outside of the bathroom. MUST BE ADHERED 2. A fixed power connection must be connected by a dedicated flexible power cable consisting of 3 wires (active, neutral and earth) of a least 1mm . -
Page 5: Bill Of Material
Bill of materials Neion Neion Intelligent Toilet Intelligent Toilet Installation Manual Operating Manual NE041250 & NE041260 Neion pan and seat Installation manual Operating manual Remote (no batteries included) Holder Screws Screw plugs Adhesive Electrical Connector Inlet hose Ball valve Water filter (IP68 rating) Dual check valve S-Trap Pan Connector... -
Page 6: Tools Required
Tools required Tape measure Marker Phillips head Flat head screwdriver screwdriver Knife File Adjustable wrench Wire stripper Drill Drill bit 12mm diameter Hacksaw Ruler Sealant... -
Page 7: Installation - Set-Outs
Waste outlet The standard set out for a S-Trap is 90mm. All distances are from final floor or finished wall. This pan is designed to be used with Arcisan in-wall cistern AR04430. Water inlet Electrical Point Front view Front view G1/2”... -
Page 8: Installation - Pan And Seat
Installation - Pan & seat FLUSH WATER OUTLET PIPE BEFORE CONNECTING TO ANY FITTINGS to water supply to Neion... - Page 9 Installation - continued NOTICE...
- Page 10 Installation - continued Please leave the instructions with the owner.
-
Page 11: Remote Installation
Remote installation Recommended installation area Option 1 Option 2 The remove backing paper from tape. - Page 12 Streamline Products Pty Ltd 21 Compark Circuit, MULGRAVE, Victoria 3170 Ph: 1300 735 352 | customerservice@streamlineproducts.com.au www.streamlineproducts.com.au...
