WMCS(N)
WMCS712N
WMCS718N
WMCS724N
PLEASE READ THIS LEAFLET CAREFULLY
NOTE ALSO THE INFORMATION GIVEN ON THE HEATER
The Installation must be carried out by trained personnel.
A means for disconnection must be incorporated in the fi xed wiring by a double pole switch with a
contact separation of a minimum of 3mm and in accordance with the current IEE Wiring Regulations.
The heater must not be installed immediately below a fi xed socket outlet.
The heater is not suitable for connection to a 30A ring circuit.
Do not position the heater under windows where curtains can contact the heater casing.
WARNING - THE SURFACES ON THIS HEATER CAN BE HOT.
This heater meets EN60335 safety requirements. However, any heater type becomes hot in normal
operation. Care must be taken to ensure that prolonged skin contact with the heater does not occur.
WHERE YOUNG CHILDREN, INFIRM PERSONS, OR THE AGED ARE PRESENT THIS APPLIANCE
MUST BE ADEQUATELY GUARDED. Contact your installer or the manufacturer for further advice.
This appliance is not intended for use by persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless they have been given supervision for
instruction concerning use of the appliance by a person responsible for their safety. Children should
be supervised to ensure that they do not play with the appliance.
This appliance is very heavy and must be securely fixed to a wall. DO NOT UNDER ANY
CIRCUMSTANCES ATTEMPT TO MOVE OR REPOSITION THIS HEATER WITHOUT SEEKING
EXPERT ADVICE.
To maintain stability, it is essential that the heater is placed on a level surface.
This heater must be installed where it is impossible for switches and other controls to be touched by
a person using a bath or shower.
IMPORTANT - Due to the newness of materials the heater will produce a slight smell for the fi rst few
days of operation. ROOMS MUST BE WELL VENTILATED AND YOUNG CHILDREN, CAGED BIRDS,
OR PERSONS WITH RESPIRATORY COMPLAINTS MUST NOT REMAIN IN CLOSE PROXIMITY
TO THE HEATER DURING THE FIRST 48 HOURS OF THE COMMISSIONING PERIOD.
IF, DURING ANY REASSEMBLY OF THE HEATER, A PART OF THE THERMAL INSULATION SHOWS
DAMAGE OR DETERIORATION WHICH MAY IMPAIR SAFETY, IT SHOULD BE REPLACED BY AN
IDENTICAL PART.

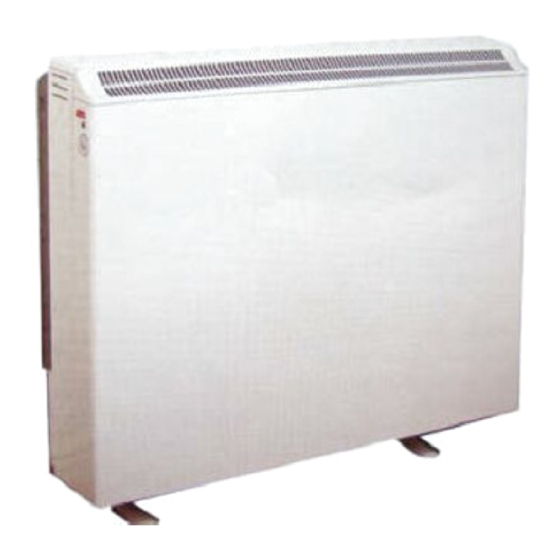

COMBINED AUTOMATIC STORAGE
AND CONVECTOR HEATER
MODELS:
1.7kW/12kWh Storage and 1kW Convector
2.55kW/18kWh Storage and 1.5kW Convector
3.4kW/24kWh Storage and 2kW Convector
INSTRUCTIONS
IMPORTANT
AND RETAIN FOR FURTHER USE.
OPERATING
AND
Advertisement
Related Manuals for Unidare WMCS N Series WMCS712N
Summary of Contents for Unidare WMCS N Series WMCS712N
- Page 1 WMCS(N) COMBINED AUTOMATIC STORAGE AND CONVECTOR HEATER MODELS: WMCS712N 1.7kW/12kWh Storage and 1kW Convector WMCS718N 2.55kW/18kWh Storage and 1.5kW Convector WMCS724N 3.4kW/24kWh Storage and 2kW Convector INSTALLATION OPERATING INSTRUCTIONS IMPORTANT PLEASE READ THIS LEAFLET CAREFULLY AND RETAIN FOR FURTHER USE. NOTE ALSO THE INFORMATION GIVEN ON THE HEATER The Installation must be carried out by trained personnel.
- Page 2 INSTALLATION INSTRUCTIONS PREPARATION 3. Place the heater on its feet and in the desired position against The heater will arrive Model 712N - 8 bricks the wall. Ensure the heater is based on a fi rm level surface at least separately from its Model 718N - 12 bricks 75mm from any end wall and at least 250mm below any shelf or...
- Page 3 12. Fit the front layer of bricks again with the recess towards the element. The complete core will comprise: 712N - 2 x 4 Brick Columns 718N - 3 x 4 Brick Columns 724N - 4 x 4 Brick Columns 13.
- Page 4 OPERATING INSTRUCTIONS CONVECTOR HEATER OPERATION Your WMCS(N) heater combines the economy of a storage CONVECTOR HEATER CONTROLS heater with the convenience of a convector heater. The convector is selected The storage heater takes in energy, when electricity tariffs by an on/off rocker switch are low and dissipates it when tariffs are normal.
