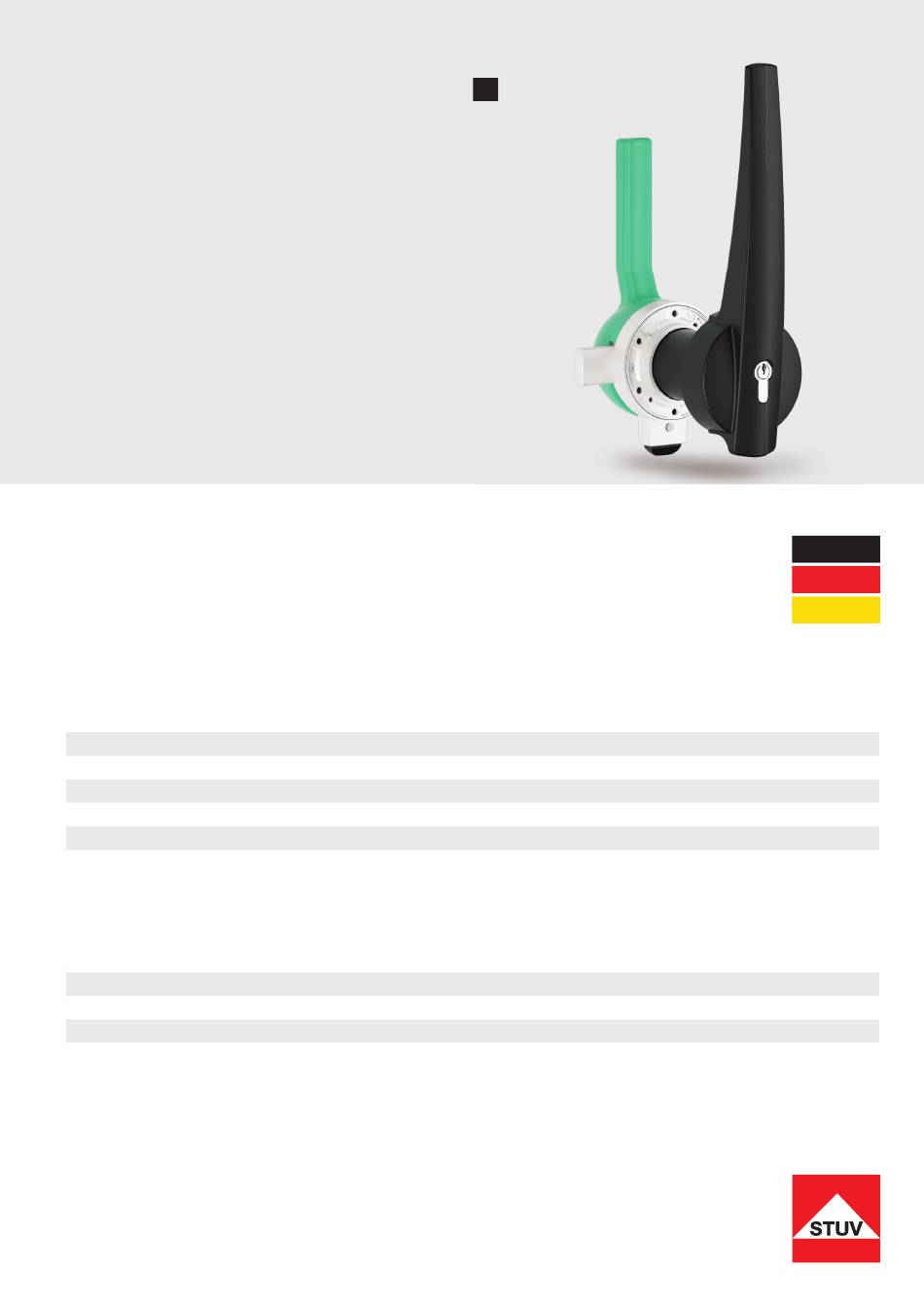

LOCKING SYSTEM OPTIONAL
LOCKING SYSTEM OPTIONAL
3.31.270X.X
with profi le-cylinder and 3 keys,
with press and click shut feature
Date of issue 06/2017 • All specifi cations are approximate • Errors and changes excepted • Product photos are for illustration purposes only
Available options:
• door thicknesses 80 mm, 90 mm, 100 mm, 120 mm, 125 mm, 140 mm
• Multiple Locking System Optional
FEATURES
Operation angle
Mounting
Temperature range
Cap
Emergency release
Model
Tested up to
MATERIAL & FINISHING
Housing, Cap
Handle
Inside and outside guide
Conformity of the materials
www.stuv.de
90°
10 x Countersunk screw M5
-40°C up to +80°C
luminescent
integated
right hand and left hand version available
200.000 cycles
Plastic, dyed
Plastic, dyed
Zinc die-casting, plated
all materials used are RoHS and REACH compliant
01
MADE
IN
GERMANY
Advertisement
Related Manuals for Stuv 3.31.270 Series
Summary of Contents for Stuv 3.31.270 Series
- Page 1 Tested up to 200.000 cycles MATERIAL & FINISHING Housing, Cap Plastic, dyed Handle Plastic, dyed Inside and outside guide Zinc die-casting, plated Conformity of the materials all materials used are RoHS and REACH compliant www.stuv.de...
- Page 2 When changing the profile half cylinder, make sure that the locking lug is in 90° position (3 o‘clock) SAFETY NOTICE For safety reasons a second person must be on the outside of the door when testing the emergency escape function with the door installed www.stuv.de...
- Page 3 ASSEMBLY INSTRUCTIONS 3.31.270X.X Inside handle Flat headed screw Recess Countersunk screw Outside handle Shim Intermediate ring Inside guide Outside guide Bearing sleeve Inside guide Intermediate ring Shim Inside handle Countersunk screw Fig. shows right hand version Flat headed screw www.stuv.de...
- Page 4 DRILLING PATTERN 3.31.270X.X Door Door Ouside Inside Frame Frame Inside Outside Door Fig. shows right hand version www.stuv.de...
