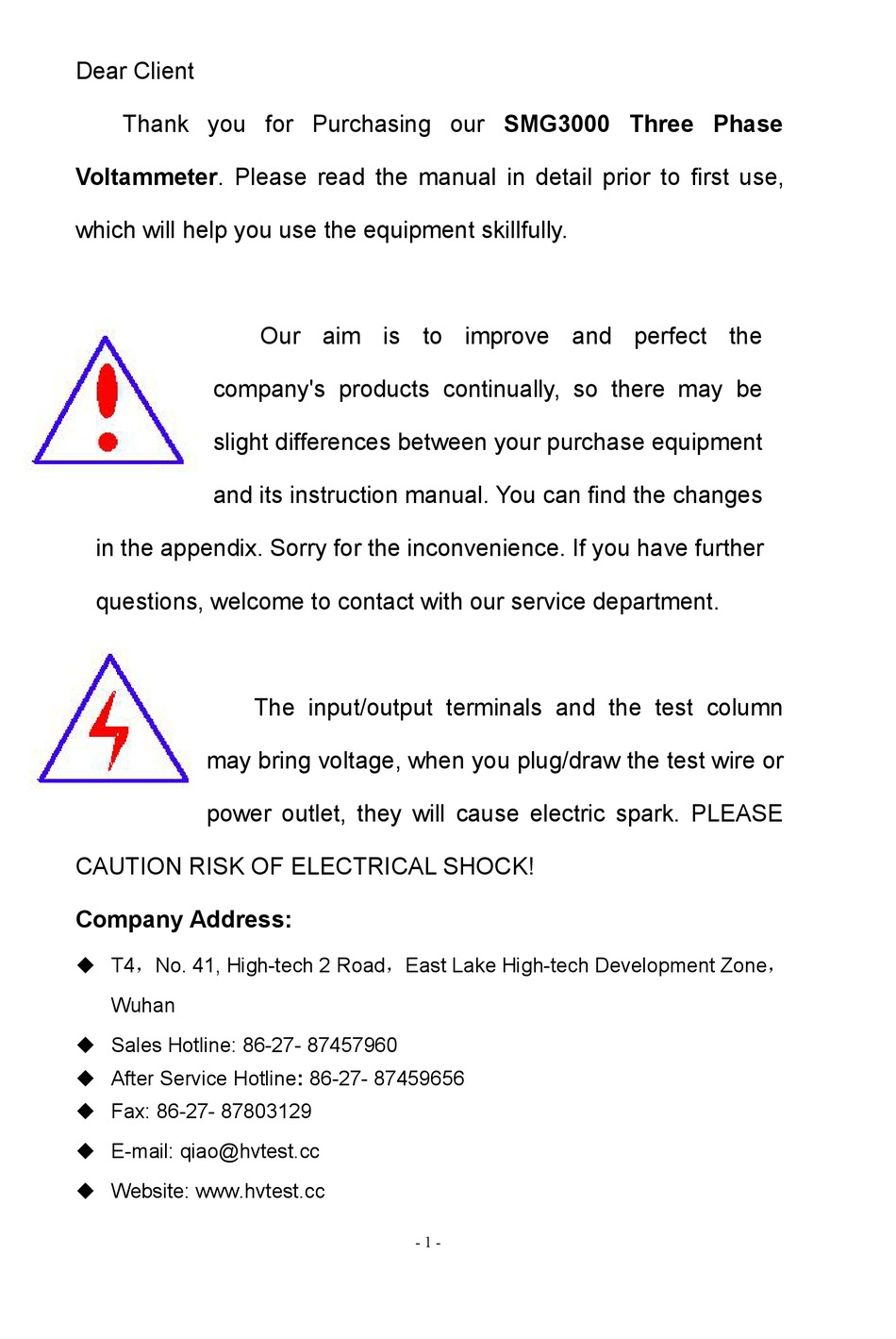

Dear Client
Thank you for Purchasing our SMG3000 Three Phase
Voltammeter. Please read the manual in detail prior to first use,
which will help you use the equipment skillfully.
company's products continually, so there may be
slight differences between your purchase equipment
and its instruction manual. You can find the changes
in the appendix. Sorry for the inconvenience. If you have further
questions, welcome to contact with our service department.
may bring voltage, when you plug/draw the test wire or
power outlet, they will cause electric spark. PLEASE
CAUTION RISK OF ELECTRICAL SHOCK!
Company Address:
T4，No. 41, High-tech 2 Road，East Lake High-tech Development Zone，
Wuhan
Sales Hotline: 86-27- 87457960
After Service Hotline: 86-27- 87459656
Fax: 86-27- 87803129
E-mail: qiao@hvtest.cc
Website: www.hvtest.cc
Our aim is to improve and perfect the
The input/output terminals and the test column
- 1 -
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HVTest SMG3000
Summary of Contents for HVTest SMG3000
- Page 1 Dear Client Thank you for Purchasing our SMG3000 Three Phase Voltammeter. Please read the manual in detail prior to first use, which will help you use the equipment skillfully. Our aim is to improve and perfect the company's products continually, so there may be slight differences between your purchase equipment and its instruction manual.
- Page 2 SERIOUS COMMITMENT All products of our company carry one year limited warranty from the date of shipment. If any such product proves defective during this warranty period we will maintain it for free. Meanwhile we implement lifetime service. Except otherwise agreed by contract.
- Page 3 ground pole of the shell must be grounded. To prevent electric shock, the grounding conductor must be connected to the ground. Make sure the product has been grounded correctly before connecting with the input/output port. Pay Attention to the Ratings of All Terminals To prevent the fire hazard or electric shock, please be care of all ratings and labels/marks of this product.
- Page 4 －Security Terms Warning: indicates that death or severe personal injury may result if proper precautions are not taken Caution: indicates that property damage may result if proper precautions are not taken. - 4 -...
-
Page 5: Table Of Contents
Contents WARNING..................- 6 - I. GENERAL INTRODUCTION..........- 8 - II. MAIN FUNCTIONS..............- 8 - III. SPECIFICATIONS..............- 9 - IV. APPARATUS AND FITTINGS........... - 10 - V. HOW TO MEASURE.............- 11 - VI. MEASURING METHODS..........- 14 - - 5 -... -
Page 6: Warning
WARNING Use this instrument with attention to safety in any case. Make sure all the accessories are in good condition, without damage, naked or break line before use. Cannot be used in the test with voltage over 600 V. ... - Page 7 joints. Make full charging if going to be long time without using. Use, disassemble, calibration, repair this meter must be conducted by an authorized qualified personnel. The instrument shall be immediately stopped using and sealed when danger will be brought due to its own reason. And let authorized qualified organization to handle.
-
Page 8: General Introduction
I. General Introduction SMG3000 Three Phase Meter a high precision instrument for measurement of three-phase electric parameters, it can be used to measure the three phase voltage, current and phase angle, frequency, power, power factor and so on. SMG3000 Three Phase Meter adopt high-speed Cortex... -
Page 9: Specifications
three-phase power and power factor; Data storage and view function; Data static storage function; 3.5 inch TFT color display with finger touch function; Lithium battery power supply, rechargeable continuous standby for more than 20 hours. III. Specifications MEASUREMENT RESOLUTION TYPE... -
Page 10: Apparatus And Fittings

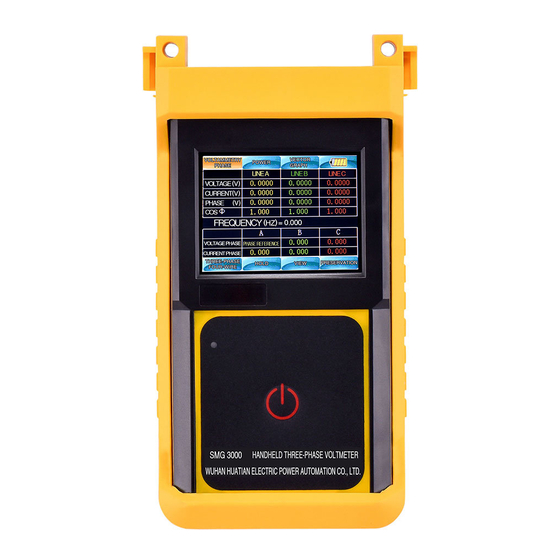

IV. Apparatus and Fittings 1. Main Instrument Figure 1 Main instrument chart 2. Current Clamp Sensor Figure 2 Current clamp sensors We choose high precision and high stability clamp current - 10 -... -
Page 11: How To Measure
1. ON and OFF Press the buttons continuously and enter the boot screen as the following chart: SMG3000 Portable Three phase Meter Figure 4 Boot screen Press the buttons for 3 seconds and listen to a “tick” - 11 -... - Page 12 sound, then the meter will enter the true state of boot. 2. Measurement Interface It appears the measurement interface automatically when the meter is on: Figure 5 Volt-ampere phase measurement interface If measurement methods choose three-phase three-wire, lightly touch icon with the touching pen and the icon will become , single-phase measurement can be realized with the same operation.
- Page 13 previous page icon and the next page icon to scan the data. These functions above are as effective in power measurement interface. Press the icon , icon turns to blue as the figure shows below, the volt-ampere phase measurement date can also be saved when you click save bottom.
-
Page 14: Measuring Methods
Judge load properties: "L" is shown if it is inductive load; "C" is shown if it is capacitive load, otherwise shows "-". VI. Measuring Methods 1. One-Way Measurement Connection Mode As following: output load Figure 7one-way measure connection modes Live line will be connected to the UA phase of the instrument, while zero line is connected to UN when use single-phase electric measurement. - Page 15 Figure 8 Three phases three lines connection method Connection for pressure-wire: Use the special voltage testing lines (three groups as yellow, red and black); one end insert the UA, UC, UN phase socket of the equipment in turn, and the other end insert the A phase, C phase and B phase of the circuit being measured respectively.
- Page 16 Figure 9 Three-phase four-wire connection method Connection for pressure-wire: Use the special voltage testing lines (four groups as yellow, green, red and black); one end insert the UA, UB, UC, UN phase socket of the equipment in turn, and the other end insert the A phase, B phase, C phase and zero line of the circuit being measured respectively.
