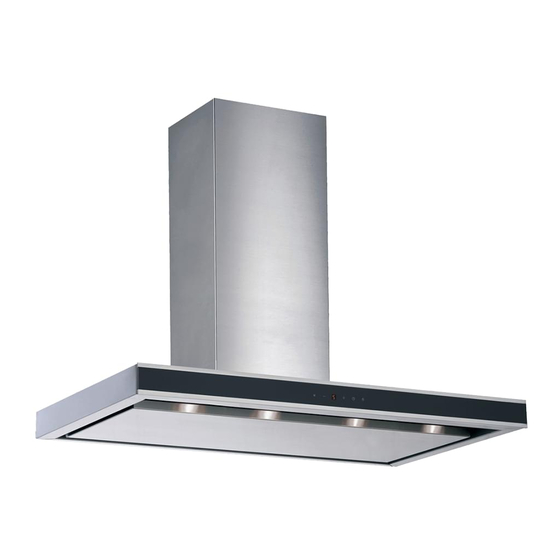

- Page 1 RANGEHOOD & INSTALLATION GUIDE DS3326B-9S Revision V1 HOME APPLIANCES www.schweigen.com.au...
-
Page 2: Table Of Contents
Mounting Laws and Regulations ___________________________________________________________ 14 Installation Instructions _____________________________________________________________________ 15 Flexible Ducting __________________________________________________________________________ 18 Overview ________________________________________________________________________________ 18 8. Maintenance Condensation Information ________________________________________________________________ 19 Troubleshooting _____________________________________________________________________________________________ 20 Technical Specifications __________________________________________________________________ 20 Faulty Installation _________________________________________________________________________ 21 9. Specification DS3326B-9S __________________________________________________________________________________________________ 22 10. Disclaimer ___________________________________________________________________________________________________ 23 Page 2... -
Page 3: Welcome
The guide contains important information on the use and maintenance of the unit, as well as important safety notes. This will ensure your personal safety and the lasting value of your rangehood. We trust that you will enjoy your new Schweigen rangehood. Please always retain your proof of purchase to aid in any warranty queries. -
Page 4: Your Safety
2. Your Safety WARNING Please read this section thoroughly before attempting to operate the appliance. Inspect your product upon receipt. Any damage or defects MUST be reported within 48 hours, or no claim will be recognised. DO NOT INSTALL THIS APPLIANCE IF YOU FIND IT DAMAGED. If this product is installed damaged, neither the supplier, nor the retailer, will be responsible for the costs associated with the repair, replacement, removal or re-installation of the appliances. -
Page 5: Before Installation
2. Your Safety Before Installation We recommend this appliance be installed or repaired by a qualified Schweigen Home Appliances technician. Please see our website www.schweigen.com.au for recommended installers. It is dangerous to modify any part of this appliance. Modification of any kind, will immediately void the warranty. -
Page 6: Product Use
2. Your Safety Product Use This product is designed for household use and should not be used for commercial applications. After use, always ensure that all controls are in the “OFF” position. When frying with a gas flame, take particular care not to allow the oil or grease in the pan to catch fire. -
Page 7: Tips And Suggestions
3. Tips & Suggestions The Rangehood has one mode of operation: Air extraction: The air is drawn in and cleaned by the grease filters and directed outside. Please check the cleaning and maintenance section for the filters’ cleaning periods. For Users 1. -
Page 8: Description
4. Description Main Rangehood Mounting Bracket Extension Flue Piece Main Flue For use with Isodrive motor system Male Plug (Main Power 240V) Used for silent and non silent models Single Outlet 200mm Reducer (For Isodrive 650 only) Filter Lamp (For GU10 fittings, please twist to remove) NOTE: Filter and light quantity may vary from model to model. -
Page 9: Operation
5. Operation Schweigen silent rangehoods are recognised for their silent operation. Although this holds true for all of our rangehoods with external motors, one must note that the rangehoods are silent when they are used for regular cooking on the lower fan setting. Therefore, you will only hear the movement of air. -
Page 10: Cleaning And Maintenance
6. Cleaning & Maintenance WARNING Always switch off and disconnect power before cleaning. Surfaces Wash with warm soapy water and a soft sponge. Never use abrasive detergent, scouring pads, steel wool or solvents on any part of this appliance, Always make sure to dry the appliance after cleaning and never leave wet, as this will cause irreparable damage. -
Page 11: Cleaning The Interior
6. Cleaning & Maintenance WARNING • If the grease filters are very dirty, the motor will extract only a small quantity of air, which reduces its efficiency; • The grease deposits that build up on the filter are highly flammable and COULD EASILY CATCH FIRE. -
Page 12: Cleaning The Exterior
6. Cleaning & Maintenance Cleaning the Exterior We recommended using a soft cloth, water and a liquid soap, rinsing it well and then drying it thoroughly. For better results, you can use high quality cleaning and protection products (eg. Steel Kleen) to clean your rangehood. -
Page 13: Replacing The Led Lamps
6. Cleaning & Maintenance Replacing the LED Lamps Fan level indicator DANGER Always switch off and disconnect power before replacing the lights. Failure to do so may cause serious injury. Please be aware that the light bulb will retain heat for a Fan On/Off Fan Level Fan Level... -
Page 14: Installation
7. Installation DANGER Always switch off and disconnect power before installing the rangehood. Failure to do so may cause serious injury. Wall Mount Installation Primary mounting points Every wall mounted rangehood has two primary mounting points and several secondary mounting points to firmly fix the rangehood in its place. -
Page 15: Installation Instructions
7. Installation Fan level indicator WARNING Fan On/Off Fan Level Fan Level Timer Lam On/Off Reduction Increase See Mounting Laws If the user decides to install the rangehood at and Regulations a distance of less than minimum height above the cooking surface, the company declines responsibility for damages suffered by the rangehood due to excess heat or damage to objects, people and others caused directly or... - Page 16 7. Installation Drill the D, E points with a Ø 6mm drill bit to screw the flue installation plate referring to the min. and max. heights of the appliance. Install 6 mm dowels to the holes you have drilled. Tightening the suspension screws Tighten 5.5x60 suspension screws to Ø10 mm dowels (A, B) you have tapped on the wall.
- Page 17 7. Installation After you have fixed your hood completely, secure the body with a screw from the hole (C) inside the body to prevent it from moving. NOTE: If the hood seems skewed, adjust the alignment of the hood by loosening the M5 screws that the suspension plates on the top are installed to.
-
Page 18: Flexible Ducting
7. Installation Flexible Ducting For the Isodrive motor, please do not crush or kink flexi ducting, as it will reduce air flow and may cause noise to occur through the system. Ducting needs to be kept taut at all times. Please refer to the Isodrive motor installation guide for more details on flexi ducting with the silent system. -
Page 19: Maintenance
8. Maintenance Condensation Information The induction cooktop is designed to provide rapid heating, improved thermal efficiency and greater heat consistency. For some customers with an induction cooktop, condensation can form on their rangehood filters while using their cooktop. The induction cooktops’ heat source is contained in the conductive base of the pot. When compared with a gas, electric or wok burner, the heat is not isolated or contained to one area and therefore gradually rises up on all sides of the pot or frypan. -
Page 20: Troubleshooting
Do not take any action that will damage the product. Rangehood does not work Light does not work Rangehood air suction is weak Rangehood does not direct air out (through chimney) Loud noise from the rangehood Technical Specifications Model DS3326B-9S Feeding Voltage 220-240V 50Hz Page 20... -
Page 21: Faulty Installation
It is not the responsibility of Schweigen Home Appliances to rectify any incorrect installations. A service call out fee will be charged for any Schweigen technician that attends a call, whereby it’s established that the fault is due to an incorrect installation or non-manufacturing fault. Should the appliance be installed in such a way that the service agent is unable to gain access to the appliance, the person/s who own the premises or the appliance where the appliance resides —... -
Page 22: Specification
9. Specification Page 22... -
Page 23: Disclaimer
In no event will Schweigen Home Appliances be responsible for damages of any nature whatsoever resulting from the use of, or reliance upon, information from their website or the products to which the information refers. - Page 24 HOME APPLIANCES Unit 102/45 Gilby Road, Distributed by: Mt Waverley 3149 Victoria. 1300 881 693 (EST) www.schweigen.com.au...
