3.
Install your M.2 to your M.2 slot. The steps may differ between installing M.2 of
different lengths, please refer to the different types and their installation steps below:

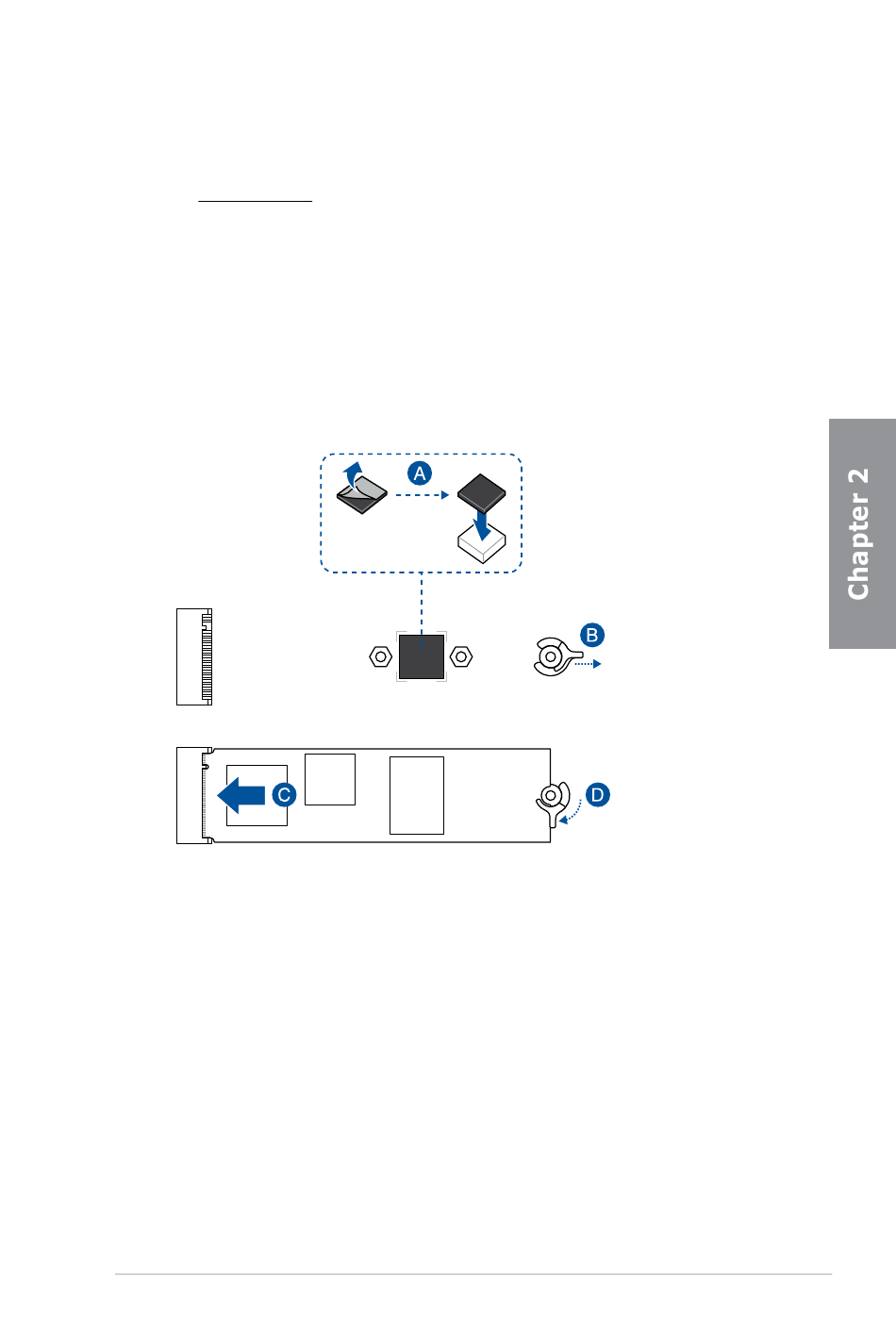

To install an M.2 to M.2_2 slot
For 2280 length
A. (optional) Install the bundled M.2 rubber pad if you are installing a single
sided M.2 storage device. DO NOT install the bundled M.2 rubber pads
when installing a double-sided M.2 storage device. The rubber pad installed
by default is compatible with double sided M.2 storage devices.
B. Rotate and adjust the M.2 Q-latch so that the handle points away from the
M.2 slot.
C. Install your M.2 to the M.2 slot.
D. Rotate the M.2 Q-Latch clockwise to secure the M.2 in place.
ROG MAXIMUS Z690 FORMULA
OPTIONAL
2-13
