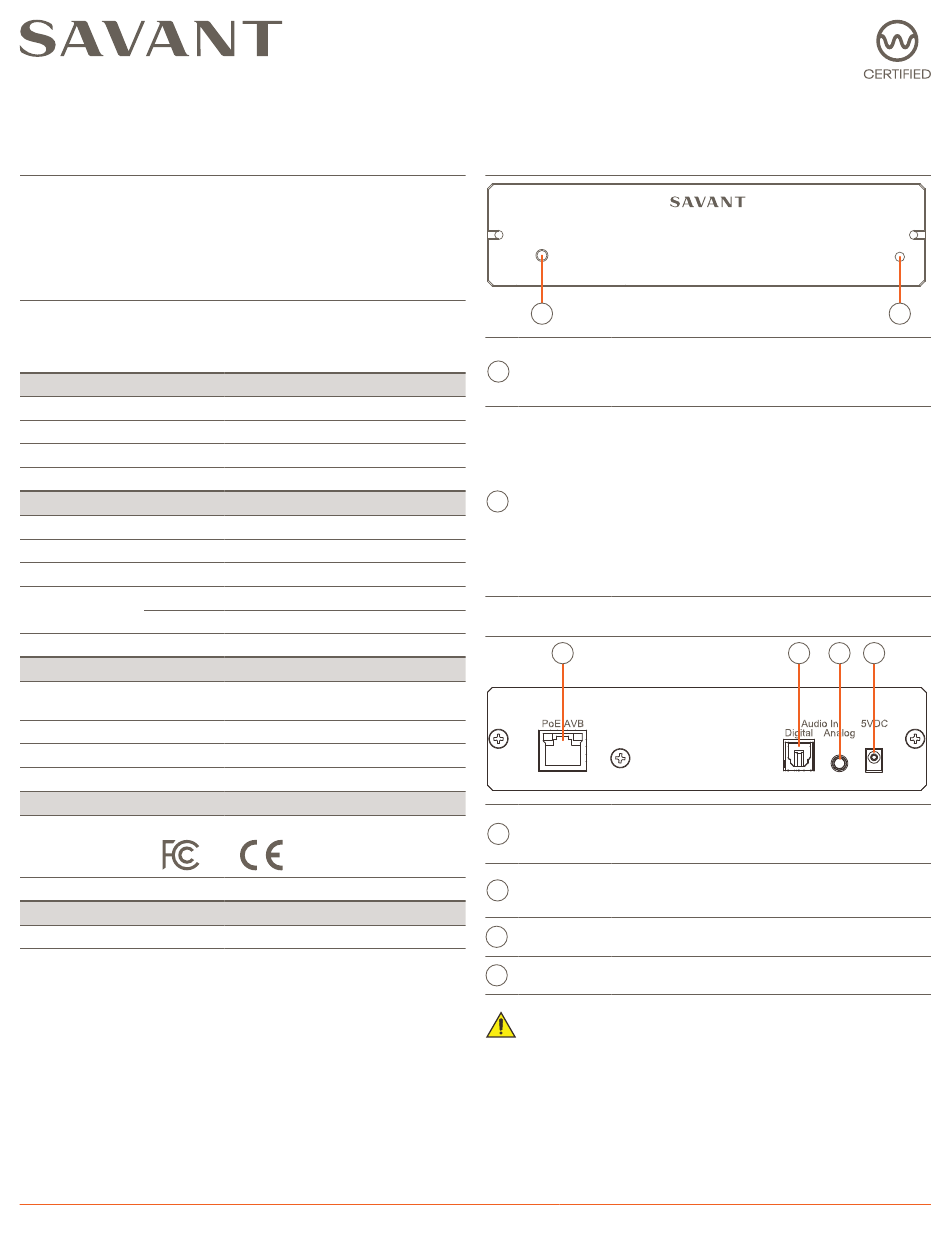

Savant® IP Audio WiSA Bridge (Stereo) Quick Reference Guide

Box Contents

(1) Savant IP Audio Bridge (Stereo) [PAV-AOMWS1C]
(1) Install Kit [075-0253-xx]
(1) Mounting Plate [074-0577-xx]
(1) Product and Regulatory Insert [009-1950-xx]

Optional Accessories (sold separately)

Power Supply 5V DC 3.0A [PWR-5V3AI-xx]

Specifications

Environmental

Temperature 32° to 104° F (0° to 40° C)
Humidity 10% to 90% Relative Humidity (non-condensing)
Cooling 10 CFM
Maximum BTU 34.1 BTU/hr

Dimensions and Weights

Height 1.4 in (3.5 cm)
Width 6.0 in (15.2 cm)
Depth 3.2 in (8.1 cm)
Net: 0.5 lb (0.22 kg)
Weight
Shipping 1.5 lb (0.68 kg)
Rack Space 1U

Power

Power over
IEEE 802.3af
Ethernet (PoE)
Nominal Power 3.5 watts
Maximum Power 5 watts
Input Power 5V DC 3A (from optional power supply)

Regulatory

FCC Part 15
Safety and
Emissions
RoHS Compliant
Minimum Supported Release
Savant Software da Vinci 9.4
Savant IP Audio WiSA Bridge (Stereo) Quick Reference Guide | 009-1969-01
Copyright 2020 Savant Systems, Inc | 200820
CE

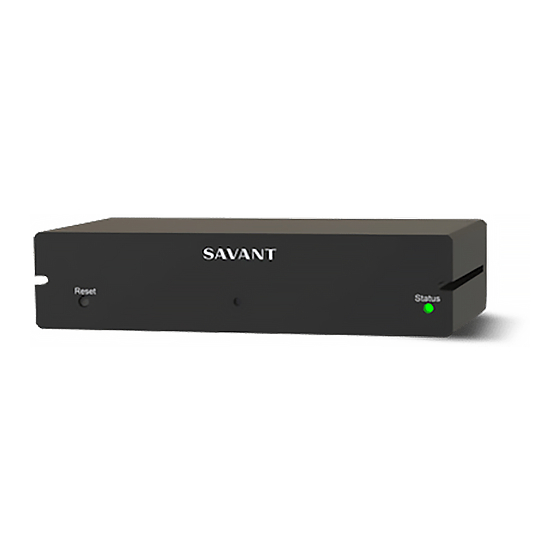

Front Panel

Reset
A
To clear all Ethernet settings and revert them
back to their factory defaults, press and hold the
A
Reset Button
reset button for five seconds until the LED blinks
red rapidly; then release.
Off: Embedded processor resetting or booting
firmware.
Green: Communication with Host established.
Blinking Green: System ready but no
communication with Host.
B
Status LED
Red: Firmware update failure, unit will reset.
Blinking Red: Firmware is running but has not
received a DHCP IP address.
Amber: Firmware update in progress.
Blinking Amber: Valid link-local IP address.

Rear Panel

A
8-pin RJ45 port.
A
Ethernet
Supports Audio Video Bridging (AVB) and Power
over Ethernet (PoE)
Digital Optical Audio (TOSLink) input.
Digital
B
Supports up to 192kHz/24 bit digital audio in;
Audio In
PCM stereo format only.
Analog 3.5mm Analog stereo line input (left and right).
C
Audio In Direct line level 2.1-V
D
Power In 5V DC 3A
IMPORTANT NOTE! Use of both audio inputs simultaneously is
not supported by this device.
1 of 2
B C
input
RMS
