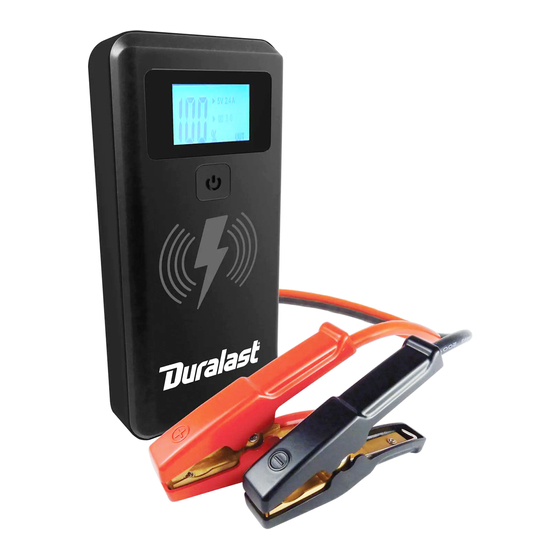

Jump Starter/Power Pack
OWNER'S MANUAL
PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH
USE. This manual will explain how to use the unit safely and effectively.
Please read and follow these instructions and precautions carefully.
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING – RISK OF EXPLOSIVE GASES.
WORKING IN THE VICINITY OF A LEAD-ACID BATTERY IS
DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES
DURING NORMAL OPERATION. IT IS IMPORTANT THAT YOU
FOLLOW THESE INSTRUCTIONS EACH TIME YOU USE THE UNIT.
To reduce the risk of battery explosion, follow these instructions and
those published by the battery manufacturer and the manufacturer
of any equipment you intend to use in the vicinity of a battery.
Review cautionary markings on these products and on the engine.
WARNING! RISK OF ELECTRIC SHOCK OR FIRE.
1.1 Read the entire manual before using this product. Failure to do so
could result in serious injury or death.
1.2 Keep out of reach of children.
1.3 Do not put fingers or hands into any of the unit's outlets.
1.4 Do not expose the unit to rain or snow.
1.5 Use only recommended attachments (SA901 jump cable). Use of an
attachment not recommended or sold by the jump starter manufacturer
for this unit may result in a risk of fire, electric shock or injury to persons
or damage to property.
1.6 To reduce the risk of damage to the electric plug or cord, pull by the
adaptor rather than the cord when disconnecting the unit.
1.7 Do not operate the unit with damaged cables or clamps.
1.8 Do not operate the unit if it has received a sharp blow, been dropped or
otherwise damaged in any way; take it to a qualified service person.
1.9 Do not disassemble the unit; take it to a qualified service person when
service or repair is required. Incorrect reassembly may result in a risk of
fire or electric shock.
1.10 Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate
this device.
WARNING! RISK OF EXPLOSIVE GASES.
1.11 To reduce the risk of a battery explosion, follow these instructions and
those published by the battery manufacturer and the manufacturer of
any equipment you intend to use in the vicinity of the battery. Review
the cautionary markings on these products and on the engine.
SAVE THESE INSTRUCTIONS.
MODEL
DL-2000LI
0099002240-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DL-2000LI and is the answer not in the manual?

Questions and answers

D Cott
March 8, 2025

I need a replacement charging cord for the jump starter. Can you help me find a replacement?

User image 67cb8bf165b9a
1 comments:
Mr. Anderson
May 14, 2025

The replacement charging cord for the Duralast DL-2000LI jump starter is USB charging cable part number 3899004188Z.

This answer is automatically generated

Dianna
March 19, 2025

What does flashing red light indicate?

Subscribe to Our Youtube Channel

Summary of Contents for Duralast DL-2000LI

  • Page 1 Jump Starter/Power Pack MODEL DL-2000LI OWNER’S MANUAL PLEASE SAVE THIS OWNERS MANUAL AND READ BEFORE EACH USE. This manual will explain how to use the unit safely and effectively. Please read and follow these instructions and precautions carefully. 1. IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS.
  • Page 2: Personal Precautions

    1.12 Do not set the unit on flammable materials, such as carpeting, upholstery, paper, cardboard, etc. 1.13 Never place the unit directly above battery being jumped. 1.14 Do not use the unit to jump start a vehicle while charging the internal battery. 2.
  • Page 3: Preparing To Use The Unit

    3. PREPARING TO USE THE UNIT WARNING! RISK OF CONTACT WITH BATTERY ACID. BATTERY ACID IS A HIGHLY CORROSIVE SULFURIC ACID. 3.1 Make sure the area around the battery is well ventilated while the unit is in use. 3.2 Clean the battery terminals before using the jump starter. During cleaning, keep airborne corrosion from coming into contact with your eyes, nose and mouth.
  • Page 4: Charging The Jump Starter

    5. FEATURES 1. Display button 8. Pad for wireless charging 2. LCD display 9. Battery clamps/ 3. Jump start output socket smart cable 4. LED light Not shown: 5. 2A USB input port 10. USB charging cable for recharging 11. Carrying bag 6.
  • Page 5: Charging The Internal Battery

    6.2 CHARGING THE INTERNAL BATTERY Use a 2A USB charger (not included), to quickly recharge the jump starter. 1. Plug the USB end of the charging cable into the charger port. Next, plug the USB end of the charging cable into a charger’s USB port. 2.
  • Page 6 NOTE: Cold weather may affect the performance of the jump starter’s lithium battery. If you hear only a click and the engine does not turn over, try the following: With the jump starter connected to the car battery and the green LED illuminated on the smart cable, turn on all lights and electrical accessories for one minute.
  • Page 7: Using The Led Light

    7.4 USING THE LED LIGHT 1. Hold down the display button for 2 seconds. 2. Once the LED light is on, press and release the display button to cycle through the following modes: • Steady glow • Flash for an SOS signal •...
  • Page 8: Specifications

    PROBLEM SOLUTION When cable is connected only The vehicle battery voltage is lower than to the battery: Solid Red LED, 10.5V. User can connect to jump starter (Green LED off). and turn key to jump start the vehicle. When cable is correctly “Fake”...
  • Page 9: Replacement Parts

    12. REPLACEMENT PARTS Battery clamps/smart cable ..........94500901Z USB charging cable ........... 3899004188Z 13. BEFORE RETURNING FOR REPAIRS For information about troubleshooting, contact Schumacher Electric Corporation Customer Service for assistance: services@schumacherelectric.com | www.batterychargers.com or call 1-800-621-5485 Return products under warranty to your local AutoZone store. 14.
  • Page 10 Any and all such warranties, other than the limited warranty included herein, are hereby expressly disclaimed and excluded. Some states do not allow the exclusion or limitation of incidental or consequential damages or length of implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights and it is possible you may have other rights which vary from this warranty.
  • Page 11: Manual Del Usuario

    Arrancador / Pack de energía MODELO DL-2000LI MANUAL DEL USUARIO POR FAVOR GUARDE ESTE MANUAL DEL PROPIETARIO Y LEER ANTES DE CADA USO. En este manual se explica cómo utilizar la unidad segura y efectiva. Por favor, lea y siga las siguientes instrucciones y precauciones.
  • Page 12: Precauciones De Seguridad Personal

    ADVERTENCIA: RIESGO DE GASES EXPLOSIVOS. 1.11 Para reducir el riesgo de explosión de una batería, siga estas instrucciones y aquellas publicadas por el fabricante de la batería y por el fabricante de cualquier equipo que intente utilizar en la proximidad de la batería. Revise las pautas de precaución en estos productos y en el motor.
  • Page 13: Preparación Para El Uso

    2.11 Neutralice el ácido derramado abundantemente con bicarbonato de sodio antes de intentar limpiarlo. 2.12 Este producto contiene una batería de ión-litio. En caso de incendio, puede utilizar agua, extintor de espuma, halón, CO polvo químico seco ABC, grafito en polvo, polvo de cobre o soda (carbonato de sodio) para extinguir el fuego.
  • Page 14 4.6 En un vehículo con descarga a tierra por borne negativo, conecte el gancho POSITIVO (ROJO) desde el arrancador al borne POSITIVO (POS, P, +) sin descarga a tierra de la batería. Conecte el gancho NEGATIVO (NEGRO) al chasis del vehículo o al bloque motor alejado de la batería.
  • Page 15: Cargar El Arrancador

    6. CARGAR EL ARRANCADOR IMPORTANTE: CARGUE LA UNIDAD INMEDIATAMENTE DESPUES DE COMPRARLA, DESPUES DE CADA USO Y CADA 30 DÍAS, O CUANDO EL NIVEL DE CARGA CAE POR DEBAJO DEL 85%, PARA MANTENER LA BATERÍA INTERNA COMPLETAMENTE CARGADA Y PROLONGAR LA VIDA DE LA BATERÍA. 6.1 COMPROBACIÓN DEL NIVEL DE LA BATERÍA INTERNA 1.
  • Page 16 3. En un vehículo con descarga a tierra por borne negativo, conecte el gancho POSITIVO (ROJO) desde el arrancador al borne POSITIVO (POS, P, +) sin descarga a tierra de la batería. Conecte el gancho NEGATIVO (NEGRO) al chasis del vehículo o al bloque motor alejado de la batería.
  • Page 17: Instrucciones De Mantenimiento

    7.2 CARGA DE UN DISPOSITIVO MÓVIL, UTILIZANDO LOS PUERTOS USB La unidad incluye dos puertos USB. Un puerto estándar proporciona hasta 2.4A a 5V DC. El segundo es un puerto de carga rápida USB, que proporciona hasta 5V a 3A, 9V a 2A o 12V a 1.5A. 1.
  • Page 18: Instrucciones De Almacenamiento

    9. INSTRUCCIONES DE ALMACENAMIENTO 1. Cargue la batería a plena capacidad antes de su almacenamiento. 2. Almacene la unidad a temperaturas entre - 20 °C- + 60 °C ( - 4 °F- + 140 °F). 3. Nunca descargue completamente la batería. 4.
  • Page 19: Especificaciones

    COMPORTAMIENTO RAZÓN LED verde sólido; Cable conectado correctamente a la LED rojo apagado; no bip. batería y el arrancador. LED rojo sólido; LED verde Protección de baja tensión apagado; un bip por segundo. LED rojo sólido; LED verde Protección de polaridad inversa apagado;...
  • Page 20: Garantía Limitada

    14. GARANTÍA LIMITADA SCHUMACHER ELECTRIC CORPORATION, 801 BUSINESS CENTER DRIVE, MOUNT PROSPECT, IL 60056-2179, REALIZA LA PRESENTE GARANTÍA LIMITADA AL COMPRADOR MINORISTA ORIGINAL DE ESTE PRODUCTO. LA PRESENTE GARANTÍA LIMITADA NO PUEDE TRANSFERIRSE NI CEDERSE. Schumacher Electric Corporation (el “Fabricante”) otorga garantía por esta unidad por un (1) año y la batería interna por noventa (90) días contados a partir de la fecha de compra, contra cualquier material defectuoso o de mano de obra de la unidad que pudieran surgir durante su uso y bajo...
