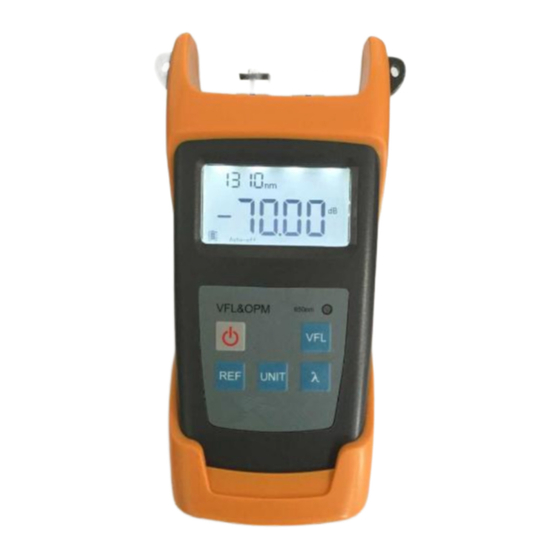

Optical Power Meter
Features
• Power meter and VFL integrated in one unit,
this tester allows to perform both optical power/loss
measurements and Fiber faults tracing visually.It
has two ports,one is power meter,the other is VFL.
• Optical Power Meter is an ideal tester used in
quickly mechanical splicing and FTTx networks.
• Optical Port: FC, SC, ST interchangeable
supports various optical connectors.
Specifications
Model
VFL output power
Operating wavelength
Detector Type
Power Measurement Range
Uncertainty
Resolution
Operation temperature
Storage Temperature
Auto-off function
Battery Life @ OPM
Battery Life @ VFL
Power Supply
Weight
Size
SHENZHEN TRANSCOM TECHNOLOGY LIMITED / 303, Building 4, Fantasia MIC Plaza,Nanshan District,Shenzhen,China.
Tel: +86 755 88278677 / Fax: +86 755 26029402 / Web: www.sz-transcom.com
VT5502
≥1.8mw
850,1300,1310,1490,1550,1625nm
InGaAs
-70~+10dBm
±0.22dB
0.01
-10~+60 ℃
-25~+70℃
Yes, Auto-off after 10minutes idle time
180 hours
60 hours
3pcs AA Batteries
700g (including batteries)
192*102*50
1
