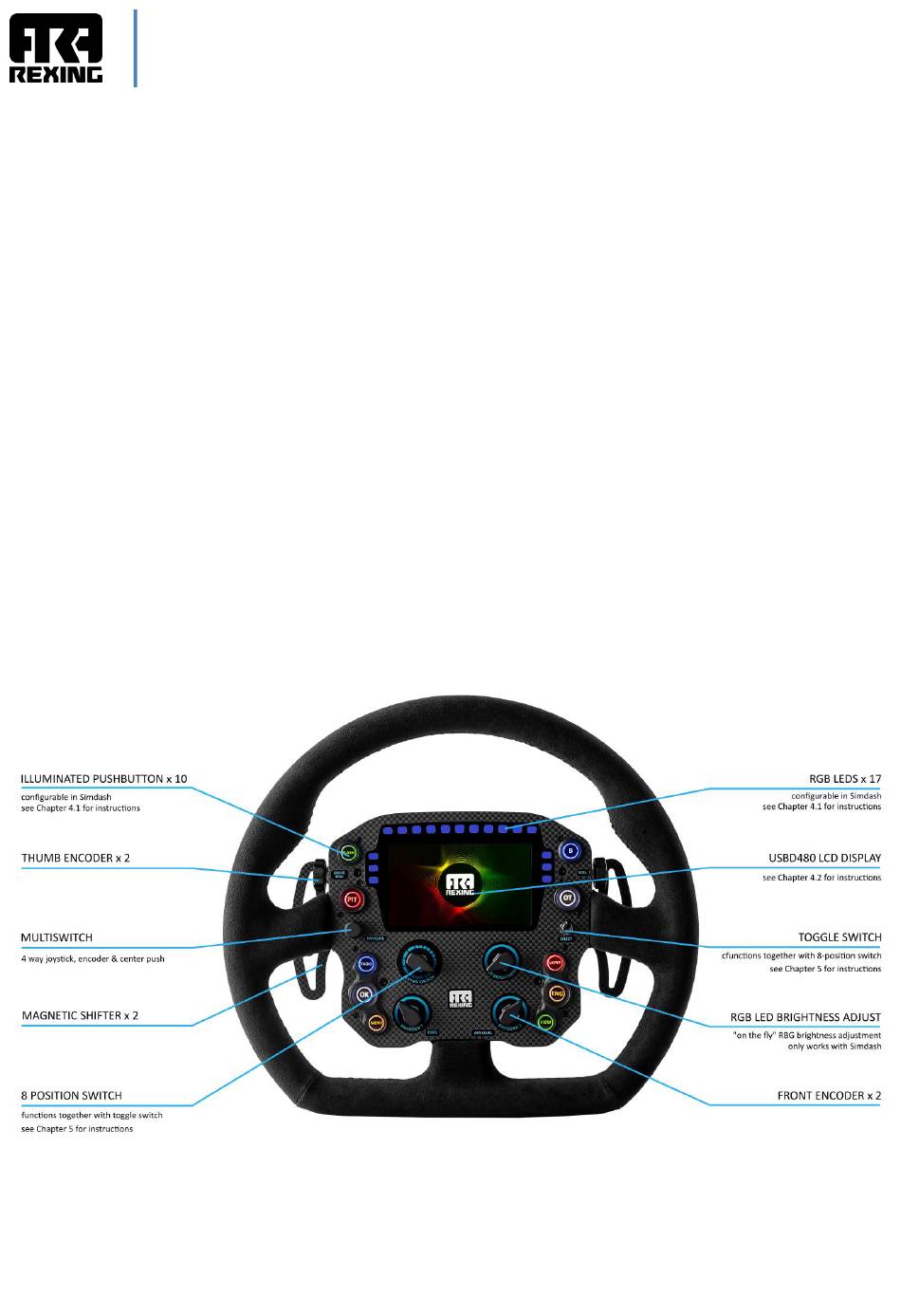

- Page 1 "TIMUN" REXING GT WHEEL - QUICK GUIDE REXING GT WHEEL "TIMUN" QUICK GUIDE...
- Page 2 All measures are expressed in metric units. You will need metric tools for nuts and bolts. Rexing GT Steering Wheel requires a powered USB hub for connection to PC. 2. ATTACHING THE WHEEL TO THE BASE OR QUICK RELEASE...
- Page 3 "TIMUN" REXING GT WHEEL - QUICK GUIDE 2. ATTACHING THE WHEEL TO THE BASE OR QUICK RELEASE Illustration 2: attaching the steering wheel hub to bases or Illustration 3: attaching the steering wheel hub to formula quick releases that have threads...
-
Page 4: Software Installation
LEDs to any vehicle or simulation. In order to do this, first install and open the Simdash app (https://www.symprojects.com/downloads). Once the wheel is connected to your PC, a green light will appear in the Rexing.eu section within the "Connected devices" menu. The "Configure" button in the Rexing.eu section opens the Configuration Screen with the following options in General settings: ... - Page 5 "TIMUN" REXING GT WHEEL - QUICK GUIDE Quick Config allows the configuration of the 11 RPM LEDs by changing their color and other settings: o In order to change an LED's color, just click on a single LED and choose the color.
- Page 6 "TIMUN" REXING GT WHEEL - QUICK GUIDE The "Next" button saves your settings from this window and opens a new window, offering to: o Disable Speed Limiter lights (no Pit Limiter function on the LEDs) o Configure LEDs for pit limiter individually (choose the color and blinking speed or no blinking option for each LED) o Configure Alternating Pattern (choose two colors and speed of alternating).
- Page 7 Blinking to Normal. This way the LED which is normally on will start blinking when the speed limiter is on. Remember to click OK both on the LED configuration screen and on Rexing configuration screen in order to save your settings.
- Page 8 "TIMUN" REXING GT WHEEL - QUICK GUIDE Games like Assetto corsa, ACC and iRacing don't need any additional configuration or plugins to work with SimDash. Some games, like rFactor 2 and F1 2021, will require an additional step in LED configuration: SimDash will configure the plugin for these games if you go to "Simulations"...
- Page 9 "TIMUN" REXING GT WHEEL - QUICK GUIDE Here is a short example of setting up the integrated USBD480 LCD to work with Simhub software: download Simhub from the link in the section above open the app and choose "Dash studio" from the menu on the left ...
- Page 10 "TIMUN" REXING GT WHEEL - QUICK GUIDE 4.2.1. Games that output data using UDP (e.g. F1 2020, F1 2021) UDP data can be received by only one application at same time. This means you would be able to use eiter LCD via Simhub or LEDs via SimDash, but not both at the same time. To get around this limitation, SimHub offers you to "forward"...
- Page 11 "TIMUN" REXING GT WHEEL - QUICK GUIDE 5. USING TOGGLE SWITCH AND 8-POSITION "EXTRA SWITCH" Toggle switch is connected to the 8-position "Extra switch". It provides 8 different, selectable, configurable positions. If the 8-position switch is turned to position 1, nothing will happen until toggle switch is pulled.
