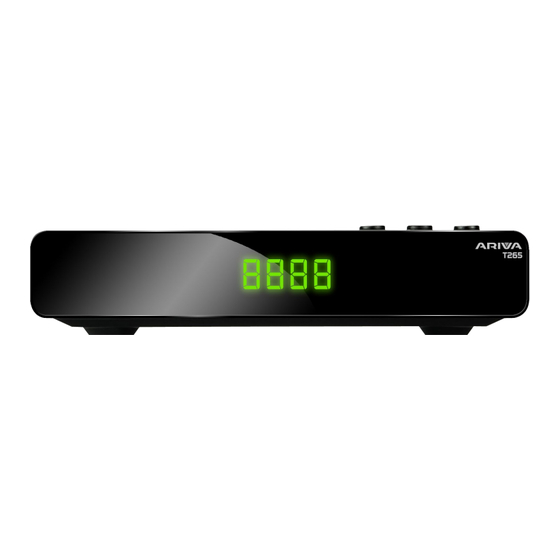

Summary of Contents for Ferguson Ariva T265

  • Page 1 User manual T265 English...
  • Page 2: Safety Measures

    WARNING !!! Ferguson receivers support recording on external hard disk drives (HDDs) and flash memories (pendrives). In all instances, the correct operation of the recording function depends on the type of connected memory! You must read the following limitations. REMEMBER: 1.
  • Page 3: Downloadable Software

    • DOWNLOADABLE SOFTWARE Ferguson has taken every effort to provide users with software updates in order to ensure that the parameters of the terrestial television receiver are up to date. Ferguson reserves itself the right to amend, change or modify the software used in the terrestial television receiver as it shall choose and without prior notification.
  • Page 4: Markings And Signs Applied To The Receiver

    Ferguson Sp. z o.o. has made every effort to provide the most current information about its products. Ferguson Sp. z o.o. does not grant any guarantee as to the contents of the present instruction manual and disclaims any implied guarantees concerning market value or suitability for specific purposes.
  • Page 5: Table Of Contents

    Index SAFETY MEASURES........................3 DOWNLOADABLE SOFTWARE......................3 ABOUT THE INSTRUCTION MANUAL....................4 MARKINGS AND SIGNS APPLIED TO THE RECEIVER................4 BASIC INFORMATION ABOUT THE RECEIVER...................7 1. Main features........................7 2. Contents of box........................7 3. Important instructions concerning handling of the receiver............7 4. Remote control........................8 4.1 Installation of batteries....................9 5.
  • Page 6: Basic Information About The Receiver

    BASIC INFORMATION ABOUT THE RECEIVER 1. Main features MPEG-2, MPEG-4, MPEG-4 AVC/H.264, HEVC/H.265 standards ✔ Reception of high definition channels ✔ Scaling of PAL signals to a resolution of 720p or 1080p ✔ Availability of programmable timers ✔ Separate lists of favourite, TV and Radio channels ✔...
  • Page 7: Remote Control

    4. Remote control Due to the standardization of Ferguson equipment, the majority of these devices use the same remote control unit RCU101. Turns the receiver on and sets it in standby mode. Switching between the list of television and radio channels.
  • Page 8: Installation Of Batteries

    4.1 Installation of batteries Remove the cover of the battery compartment on the rear panel of the remote control unit; slide it downwards and put it aside. Insert two AAA (R03) batteries into the compartment, observing the indicated polarity. Do not mix old and new batteries, or batteries of different types.
  • Page 9: Front Panel

    5. Front panel 6. Rear panel ANT IN: Input of the concentric cable from the antenna. LOOP OUT: Output signal to another receiver. It is not RF-out. HDMI: Digital image and sound output to HD TV. USB: Port for connecting an external USB memory device. Analoge audio-video output.
  • Page 10: Connecting The Terrestrial Antenna

    7. Connecting the terrestrial antenna There are no special antennas for DVB-T. For collection of digital television, the same antennas as analog TV reception. There is no need to change the antenna system. It is worth to check the quality and condition of the plant, which has so far been used for analog TV reception. Reception problems can be weathered with old antenna systems, or grid antennas.
  • Page 11: Connection By Means Of Av Cables

    8.2 Connection by means of AV cables 1. Connect the antenna to the AV socket of the receiver. 2. Connect the television to the port in accordance with the description. 4 – GND 3 – Video 2 – Right channel 1 –...
  • Page 12: Connection Of An Audio System

    8.3 Connection of an audio system Digital sound (including surround sound, if broadcast) can be obtained from AUDIO • socket. Analoge sound can be obtained from the same AUDIO output. • 8.4 Connection of an external memory 1. The receiver supports all types of hard disk drives in housings that are equipped with an independent power supply.
  • Page 13: Connection Of Another Receiver

    8.5 Connection of another receiver Another receiver may be connected through the LOOP socket. Please keep in mind, however, that only one device may be used at one time! Permanent damage may result if both are turned on simultaneously. NOTE: LOOP output in terrestial receivers is the only signal loop-through. This is not a modulator, so the receiver will not let go of the image decoding (DVB-T and USB) in the form of an analog signal on this connector.
  • Page 14: First Steps

    FIRST STEPS 1. Insert the plug of the receiver and other additional devices to a wall socket. 2. Select AV signal source of your television set. 3. Please follow the installation wizard or do the channel scan using one of integrated scan modes.
  • Page 15: Main Menu

    9. Main menu Press the MENU button on the remote control in order to display the following main menu, which contains five items: 1. Channels Edit 2. Program Guide 3. Sort 4. LCN 5. ACU 10. Channel Menu program is used for operation and setting TV channels. 10.1 TV channels list In this menu you can edit the list of television channels.
  • Page 16: How Do I Delete A Channel

    Once you are finished, press BACK. A message will appear asking you to confirm the changes made. If you fail to do this, changes in the channel list will not be saved. Note!: This function is activated when the function LCN is off! How do I delete a channel? Proceed to the editing of channel lists.
  • Page 17: How Do I Change A Channel Name

    Once you are finished, press BACK in order to switch off the add to favourite groups function. Having completed the addition of channels to successive favourite groups, press BACK. A message will appear asking you to confirm the changes made. If you fail to do it, the changes made will not be saved! How do I change a channel name? Proceed to the editing of channel lists.
  • Page 18: Search

    12 Search The installation menu is used to set antenna installation parameters and to search for channels from terrestial signal. 12.1 Terrestrial Automatic Scan (recommended method) In this menu, you can search for channels automatically - the receiver searches only frequency by frequency according to the saved list of DVB-T.
  • Page 19: Options

    14. Options This menu is used to define the language in which the receiver's menu is displayed. The preferred and second language options refer to audio soundtracks. If a given channel supports more than one audio soundtrack, the receiver will by default search for soundtracks in the selected languages in this order.
  • Page 20: Factory Settings

    15.3 Factory settings In this menu you can restore the default settings of the receiver. The default password is four zeros: 0000. Note: Restoration of default settings results in the removal of all user settings and the recall of a default channel list; in some cases, no channel list will be available. All changes introduced by the user, including the channel list and configuration of terrestial antenna settings, will be removed!!! 15.4 Software Update...
  • Page 21: Photos

    Photos In this tab, you can view photographs in JPEG, BMP format. There are a few additional functions that can be operated by means of the functional keys described in the lower part of the screen. Video In this tab, you can play back movie files. Also high resolution files can also be played back.
  • Page 22: Pvr Configuration

    During playback, press the PLAY button in order to display the information bar. There are a few different methods of quick viewing/scrolling a recording: 1. Use the Fast forward and Rewind buttons to navigate within a current recording and press the PLAY button in order to start viewing from a selected moment.
  • Page 23: Basic Functions Supported By The Remote Control

    17. Basic functions supported by the remote control 17.1 Guide This function displays a programme guide. The contents of current, future and detailed information depend on what a given station broadcasts. Having selected a programme, you can use the timer function (OK button) to automatically plan the viewing or recording of a given programme.
  • Page 24: Txt - Teletext

    17.3 TXT - teletext This function displays the teletext, provided that it is broadcast by the selected television station. Keep in mind that the correct code page (diacritical marks) is displayed depending on the language settings made in the language settings menu! 17.4 AUDIO The green audio button displays a window with available...
  • Page 25: Semi-Twin Tuner

    From the moment you switch on the time shift mode, the Ferguson receiver will constantly record the signal from the terrestial in a buffer. The buffer is created automatically on the external USB memory device.
  • Page 26: Info

    Scrolling the contents of the time shift buffer (playback of an earlier television broadcast) 1. Switch on the time shift mode by pressing PAUSE. 2. The contents of the time shift buffer can now be scrolled through. 3. Use the Fast forward and Rewind buttons to navigate through the time shift buffer and press PLAY in order to start playback.
  • Page 27: Fav - Favourites

    17.9 FAV – favourites If you press the FAV button, the receiver will display a window with groups of favourites (provided that the user has changed such groups). 17.10 Aerial Adjustment Pressing the EDIT button on the remote control you can set the detailed parameters of the terrestrial antenna.
  • Page 28: Attachment A - Specification

    ATTACHMENT A - SPECIFICATION Main Features STB Type DVB-T Receiver Main Chipset GX3201H Special Features SMPS Type Adapter Mechanical Dimension W:134mm,D:88mm,H:27mm Net Weight 135g Main Chip Sets CPU frequency 660MHz Flash Memory 4 MB SDRAM Memory 1PC 64X16 Mbit DVB-T tuner Tuner Type R836 Frequency Range...
