Elkay DSBWCT5G Installation, Care & Use Manual

Installation / Care / Use Manual

Description

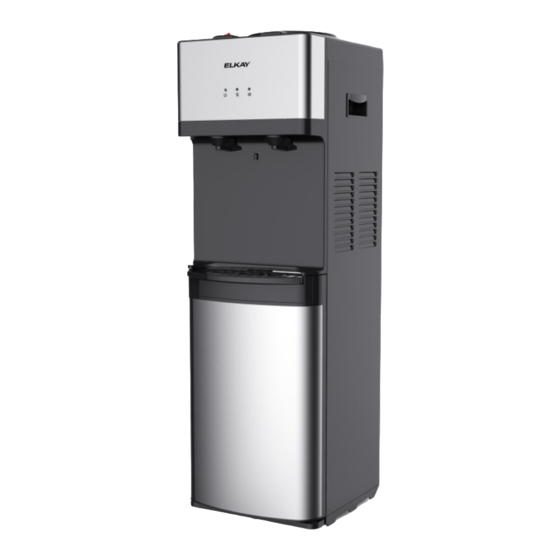

Top loading bottled water cooler unit with hot and cold dispensers. Includes non-refrigerated storage, perfect for storing cups or other supplies. Com-
pressor refrigeration: high efficiency aluminum coil compressor is used for cooling. Electric heating: high power stainless steel hot water tank is designed
for heating. Water source is bottled water.

Ratings

• Dimensions: 310mm×360mm×1000mm (12"×14"×39")
• Total Power: 540W
• Heating Power: 420W
• Cooling Power: 120W

Definitions

DANGER
– Indicates death or serious injury will result if proper precautions are not taken.
WARNING
– Indicates death, serious injury or property damage can result if proper precautions are not taken.
CAUTION
– Indicates some injury or property damage may result if proper precautions are not taken.
Authorized Service Personnel – Factory trained personnel or personnel having working knowledge of electrical,
plumbing and machine (appliance) maintenance procedures.

Safety

DANGER
• Please read these instructions completely before starting the installation or performing any service. Failure to follow the instructions and safety precautions
in this manual can result in serious injury or death.
• After installation, keep these instructions in a safe location for future reference.
• Electric supply must be identical in voltage, cycle, and phase to that specified on nameplate.
• Electrical supply must have Ground Fault Circuit Interrupter (GFCI) protection.
• A means for disconnecting electrical supply to the unit must be incorporated in the fixed wiring in accordance with wiring rules. This is to allow electrical
disconnection of the unit from electrical supply after installation.
WARNING
• Prior to use, this dispenser must be properly assembled and installed in accordance with this manual.
• This dispenser is intended for water dispensing only. Do NOT use other liquids. Do NOT use for other purposes. Never use any other liquid in the
dispenser other than known and microbiologically safe bottled water.
CAUTION
• For indoor use only. Keep water dispenser in a dry place away from direct sunlight. Do NOT use outdoors.
• Install and use only on a hard, flat and leveled surface.
• Do NOT place dispenser into an enclosed space or cabinet.
• Do NOT operate dispenser in the presence of explosive fumes.
• Position the back of the dispenser no closer than 4 inches from the wall, permitting free airflow between the wall and the dispenser. There must be at
least 4 inches clearance on the sides of the dispenser to permit airflow.
• Only use properly grounded outlets.
• Do NOT use an extension cord with your water dispenser.
• Always grasp the plug and pull it straight out from the outlet. Never unplug by pulling on the power cord.
Original Instructions
Model: DSBWCT5G
• Feed Water Type: Bottled Water
• Voltage/Frequency: 220-240V/50-60Hz
• Water Heating Capacity: 1GPH / 4LPH
• Water Cooling Capacity: 0.5GPH / 2LPH
Page 1 1000003845 (REV. B - 05/17)
