RF SOLUTIONS Shadow Tracker System User Manual

Complete gps tracking system
Hide thumbs Also See for Shadow Tracker System:
Table of Contents

Advertisement

Quick Links

Download this manual
•
Complete 'contract free' tracking System
•
Simple to use "Click-to-track" software
•
Breadcrumb Trail/Time-lapse Tracking
•
Tracker is also GSM Phone
•
Emergency SOS Call and Position Feature
•
Supplied with everything you need:
GPS Tracker
USB GSM Modem Base Station
TM
Google
Maps based software
2 PAYG SIM Cards
•
Vehicle or personal tracking
•
Dial up to 4 preset Numbers
•
Software tracks multiple
Trackers (up to 50)
•
Compact, Light weight
discrete
Applications
Lone Work Alarm
Fleet tracking
Personal Tracking
Emergency Alarm
Valuables Tracker
Description

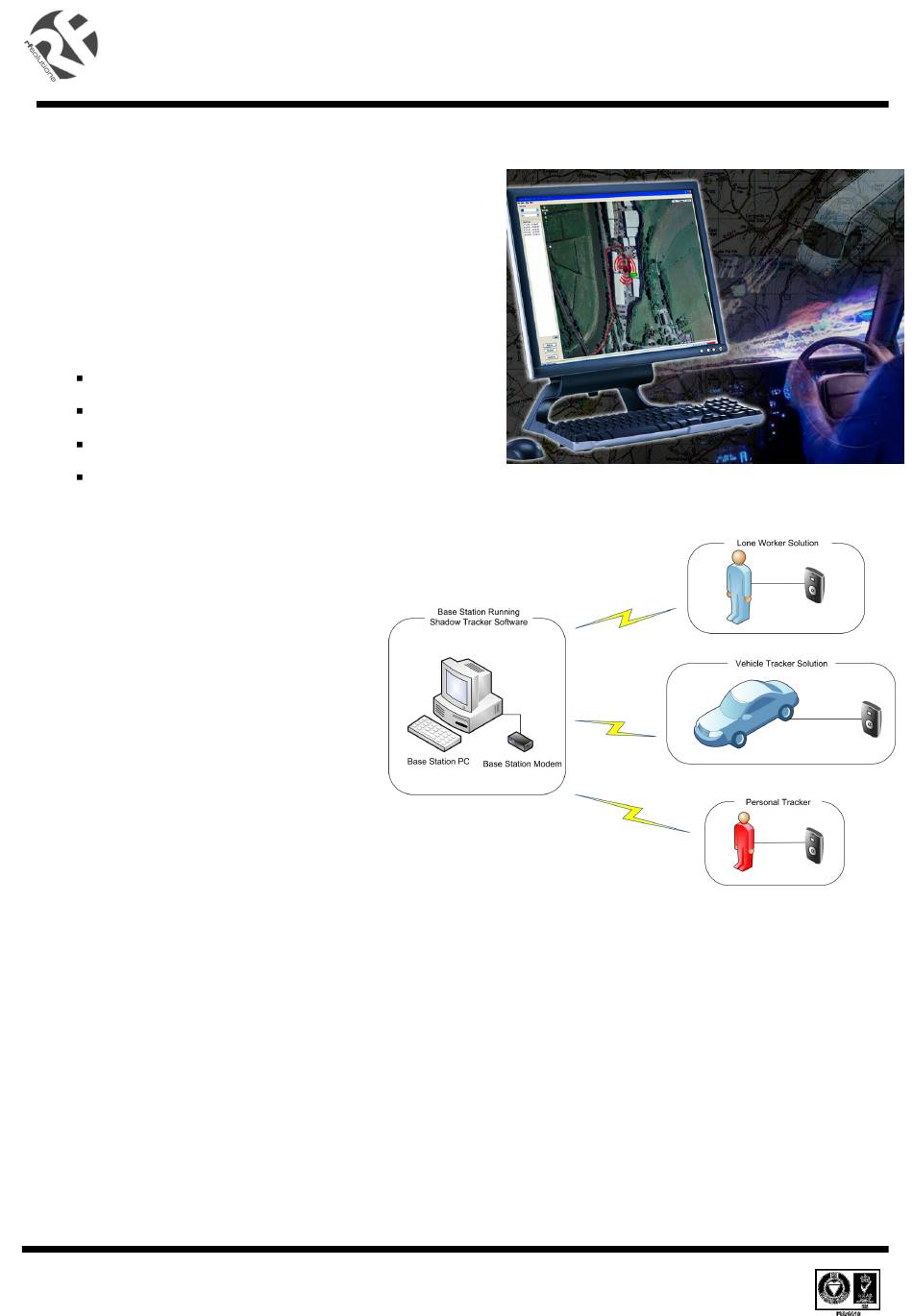

The Shadow Tracker System comes complete with everything you need to start tracking almost anything
from a JCB to a child!. All that is required is a PC.
The Shadow Tracker System uses the latest GPS technology to enable you to keep a track of your Vehicle, staff,
loved ones or valuables. Simply load the Shadow Tracker Software onto a PC and set it to log the movement of the
tracker or use the 'FIND USER' button to get a real time update of one or many Tracker locations.
The Tracker unit may also be used as a normal GSM Mobile phone. In addition to receiving calls, there are four
buttons on the tracker which will dial preset telephone numbers.
DS-SHADOW-2.doc
T
S
HE
HADOW
COMPLETE GPS TRACKING SYSTEM
©2008 REG No 277 4001, ENGLAND.
T
RACKER
Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shadow Tracker System and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RF SOLUTIONS Shadow Tracker System

Summary of Contents for RF SOLUTIONS Shadow Tracker System

  • Page 1 JCB to a child!. All that is required is a PC. The Shadow Tracker System uses the latest GPS technology to enable you to keep a track of your Vehicle, staff, loved ones or valuables. Simply load the Shadow Tracker Software onto a PC and set it to log the movement of the tracker or use the ‘FIND USER’...

  • Page 2: Table Of Contents

    HADOW RACKER COMPLETE GPS TRACKING SYSTEM User Manual 1. Definitions ..................3 2. In the Box..................3 3. SIM Cards ...................4 4. USB GSM Modem Base Station ..........4 5. Shadow Tracker .................5 6. Cable Accessories ..............6 7. Tracking System: Hardware Installation ........7 8.

  • Page 3: Definitions

    Characters in the range A to Z (upper and lower case), numbers in the range 0 – 9. Mobile GSM telephone with text message ability Personal computer which operates to the minimum requirements 2. In the Box Provided as part of The Shadow Tracker System: PART No Description Present Compact GPS Tracker unit / GSM Mobile Phone...

  • Page 4: Sim Cards

    Simply install the drivers for the product, insert a SIM card and plug into a free USB port. More details can be found at http://www.rfsolutions.co.uk/acatalog/GSM_Modems.html Tip: This modem is not tied to The Shadow Tracker System and may also be used as a standard GSM/GPRS modem if required. Page 4 DS-SHADOW-2.doc...

  • Page 5: Shadow Tracker

    HADOW RACKER COMPLETE GPS TRACKING SYSTEM 5. The Shadow Tracker The Shadow Tracker is a small and powerful GPS/GSM/GPRS tracking device designed and developed for remote positioning and lone worker applications. Do not plug the Shadow tracker into the PC before installing software. Fig 5.1 1.

  • Page 6: Cable Accessories

    HADOW RACKER COMPLETE GPS TRACKING SYSTEM 4. Sleep Mode a. The Shadow Tracker goes into SLEEP mode and locks the keys after 10seconds idle, this prevents accidental activation. To exit sleep press the Power button briefly. b. When sleep mode is off, ensure the tone for each button press is audible. 5.

  • Page 7: Tracking System: Hardware Installation

    7. Tracking System: Hardware Installation (Note: See system requirements section for PC specification) Before you can use the Shadow Tracker system you must install all three parts of the system onto the Base Station PC. These consist of; 1. Install the Software onto the Base Station PC.
  • Page 8 HADOW RACKER COMPLETE GPS TRACKING SYSTEM Install the Shadow Tracker g. Plug the Shadow Tracker into the USB port using the Cable provided. h. Turn on the Shadow Tracker Select the “Install the software automatically” option Wait for the Shadow Tracker to be detected and follow the on screen instructions to Install the “6218 USB Modem Driver”...

  • Page 9: Tracking System: Configuration

    Setup each Shadow Tracker(s) name and telephone numbers on the GSM Base Station so that it can be tracked. 1. Open the Shadow Tracker System Software on the PC 2. Connect the Shadow Tracker a. Install a SIM card into the Shadow Tracker b.
  • Page 10 Close the Create/Edit Users window 6. Set-up is now complete and your Shadow Tracker system is ready to be used. a. Select your user from the Select User Box in the main window b. (the Select Date box will now show all data (if any) stored for this user, filtered by date.

  • Page 11: Tracking System: Menu Definitions Glossary

    HADOW RACKER COMPLETE GPS TRACKING SYSTEM 9. Tracking System: Menu Definition Glossary Main Screen Select User The Select User drop down box shows a list of all known users, click on a user to show data stored for their movements Select Date The Select Date drop down box shows a list of all data stored on previous dates for the selected user.
  • Page 12 Help Display datasheet About Shows the Modem Status, SIM card number (if supported by the SIM card), link to RF Solutions Ltd Home page and also give access to the Log for troubleshooting. Page 12 DS-SHADOW-2.doc ©2008 REG No 277 4001, ENGLAND.

  • Page 13: Troubleshooting Guide

    HADOW RACKER COMPLETE GPS TRACKING SYSTEM 10. Troubleshooting Guide Shadow Tracker LED indication Indication Conditions LED display Service Limited Service Red Light Flashing No Service Red Light On permanently Mode GSM + GPS not fixed Blue Light Flashing GSM + GPS fixed Turquoise Light Flashing GPRS + GPS Orange Light Brief Flash...
  • Page 14 HADOW RACKER COMPLETE GPS TRACKING SYSTEM Physical/Operation Specifications Item Description Specification Dimensions Length 88.5mm Width 40mm Height 19.95mm Weight With Battery Without Battery Temperature Operating -10 to 50 C Storage -20 to 60 C Humidity Up to 95% non-condensing lectrical Specifications Item Description Specification...
  • Page 15 Fax: +44 (0)1273 480 661 RF Solutions is a member of the Low Power Radio Association. Information contained in this document is believed to be accurate , however no representation or warranty is given and no liability is assumed by R.F. Solutions Ltd. with respect to the accuracy of such information.
