RF SOLUTIONS SHADOW-TRACKER Manual

Complete gps tracking system
Hide thumbs Also See for SHADOW-TRACKER:
Table of Contents

Advertisement

Quick Links

Download this manual
•
Complete 'contract free' tracking System
•
Simple to use "Click-to-track" software
•
Breadcrumb Trail/Time-lapse Tracking
•
Tracker is also GSM Phone
•
User Adjustable Geo-Fence
•
Emergency SOS Call and Position Feature
•
Supplied with everything you need:
GPS Tracker
USB GSM Modem Base Station
TM
Google
Maps based Tracking software
2 SIM Cards
•
Vehicle and personal tracking
•
Dials upto 4 preset Numbers
•
Supports Multiple Trackers
•
Compact, Light weight
discrete
Applications
Lone Work Alarm
Fleet tracking
Personal Tracking
Emergency Alarm
Valuables Tracker
Description
The Shadow Tracking System comes complete with everything you need to start tracking almost anything
from a JCB to a child!. All that is required is a PC.
The Shadow Tracking System uses the latest GPS technology to enable you to keep a track of your Vehicle, staff,
loved ones or valuables. Simply load the Shadow Tracker Software onto a PC and set it to log the movement of the
tracker or use the 'FIND' button to get a real time update of one or many Tracker locations.
The Tracker unit may also be used as a normal GSM Mobile phone. In addition to receiving calls, there are four
buttons on the tracker which will dial a preset telephone number,
DS-SHADOW-0d
T
S
HE
COMPLETE GPS TRACKING SYSTEM

User Manual

©2008 REG No 277 4001, ENGLAND.
HADOW

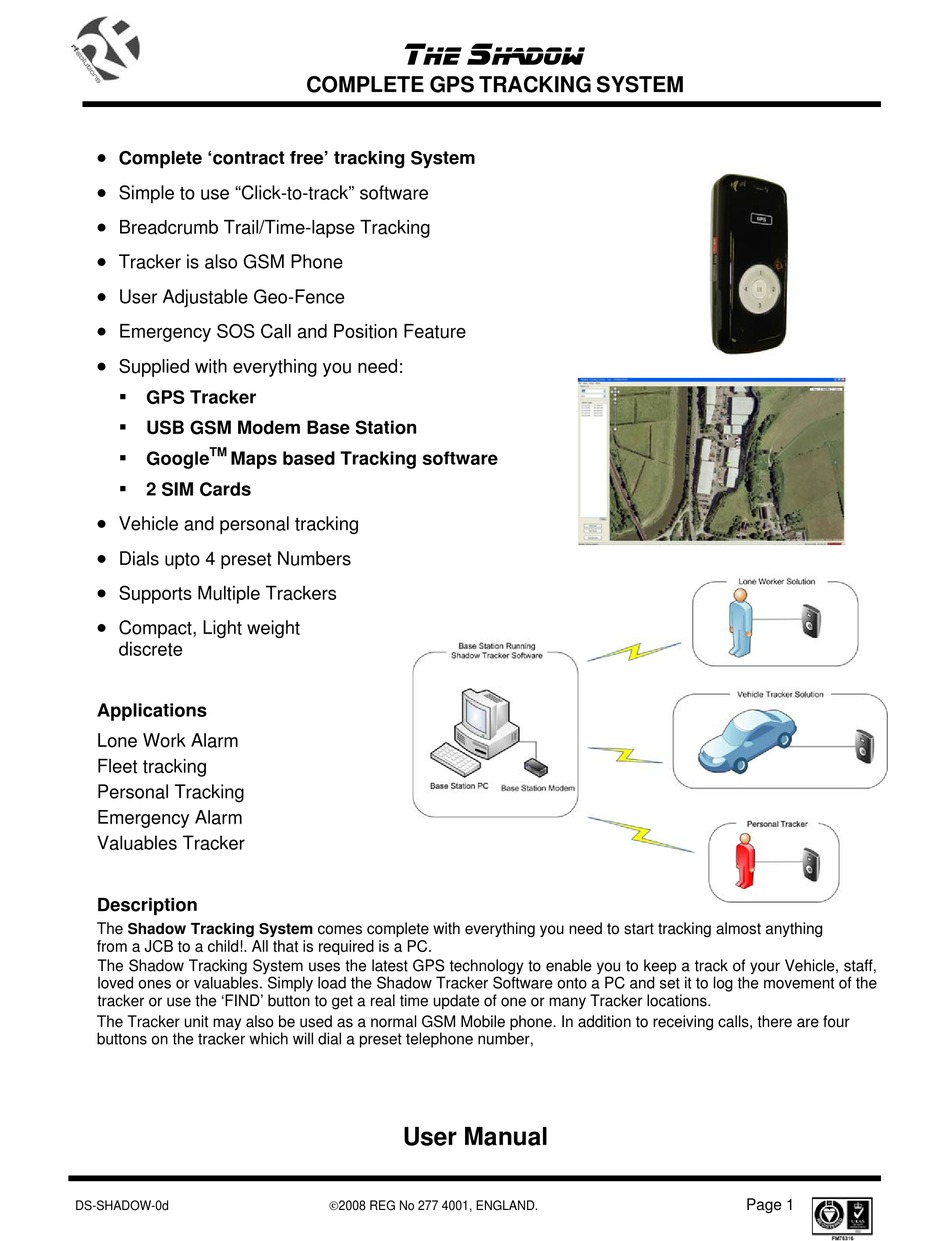

Page 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHADOW-TRACKER and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RF SOLUTIONS SHADOW-TRACKER

Summary of Contents for RF SOLUTIONS SHADOW-TRACKER

  • Page 1: User Manual

    HADOW COMPLETE GPS TRACKING SYSTEM • Complete ‘contract free’ tracking System • Simple to use “Click-to-track” software • Breadcrumb Trail/Time-lapse Tracking • Tracker is also GSM Phone • User Adjustable Geo-Fence • Emergency SOS Call and Position Feature • Supplied with everything you need: GPS Tracker USB GSM Modem Base Station Google...

  • Page 2: Table Of Contents

    HADOW COMPLETE GPS TRACKING SYSTEM 1. Definitions..................3 2. In the Box ..................3 3. SIM Cards..................4 4. USB GSM Modem Base Station ..........4 5. Shadow Tracker................5 6. Cable Accessories ..............6 7. Hardware Installation ..............7 8. Tracking System : Configuration ..........9 9. Tracking System: Operation.............11 10.

  • Page 3: Definitions

    2. In the Box Provided as part of the Shadow System: PART No Description Compact GPS Tracker unit / GSM Mobile Phone SHADOW-TRACKER USB Connecting Cable Tracker Mains Charger GSM-USBG10 USB GSM Modem Base Station (connects to user PC) CD-SHADOW...

  • Page 4: Sim Cards

    HADOW COMPLETE GPS TRACKING SYSTEM 3. SIM Cards Two Vodafone Pay-as-you-go SIM Cards are bundled with this system. The Shadow system can use either these or other SIM Cards / service providers with the following provisos; Notes 1. Only 3 Volt SIM cards will be correctly read and older 5 Volt types will be ignored. 2.

  • Page 5: Shadow Tracker

    HADOW COMPLETE GPS TRACKING SYSTEM 5. Shadow Tracker The Shadow Tracker is a small and powerful GPS/GSM/GPRS tracking device design and developed for remote positioning and lone worker applications. Do not plug the Shadow tracker into the PC before installing software. Fig 5.1 1.

  • Page 6: Cable Accessories

    HADOW COMPLETE GPS TRACKING SYSTEM 4. Phone Dialling / Answering / Hanging up a. Four Pre-set numbers can be dialled using the Shadow Tracker. b. To dial a number: i. Bring the tracker out of sleep mode by pressing the power button briefly ii.

  • Page 7: Hardware Installation

    HADOW COMPLETE GPS TRACKING SYSTEM 7. Hardware Installation Minimum Hardware Requirements: • Windows XP or Vista • CD-ROM Drive • 1 x Free USB Port (2 preferable) • Internet access • Internet explorer 7 or later. Before you can use the Shadow Tracker system you must install all three parts of the system onto the Base Station PC.
  • Page 8 HADOW COMPLETE GPS TRACKING SYSTEM 2. Install the GSM Modem Base Station a. Plug the GSM Modem Base Station into a free USB port on the PC b. Wait until the PC detects the modem c. When prompted, select the “Install the software automatically” option (Fig 4.2) Fig 4.2 d.

  • Page 9: Tracking System : Configuration

    HADOW COMPLETE GPS TRACKING SYSTEM 8. Tracking System : Configuration To get started with your tracking system you need to ; Set the Preset Telephone numbers within each Shadow Tracker Setup each Shadow Tracker(s) name and telephone numbers on the GSM Base Station so that it can be tracked.
  • Page 10 HADOW COMPLETE GPS TRACKING SYSTEM 4. Connect the GSM Modem a. Install a SIM card in the GSM Modem b. Plug the GSM Modem Base Station into any free USB slot on the PCB c. Wait for the Auto Detect process to complete and ensure that you have a good GSM signal using the Signal strength meter in the bottom right of the screen.

  • Page 11: Tracking System: Operation

    HADOW COMPLETE GPS TRACKING SYSTEM 9. Tracking System: Operation Main Screen Select User The Select User drop down box shows a list of all known users, click on a user to show data stored for their movements Select Date The Select Date drop down box shows a list of all data stored on previous dates for the selected user. Delete The Delete button will delete all data shown in the window above.
  • Page 12 The Shadow Tracker can run in the background on the PC and minimise to the System tray if the option is ticked. About Shows the Modem Status, SIM card number, link to RF Solutions Ltd Home page and also give access to the Log for troubleshooting. ©2008 REG No 277 4001, ENGLAND.

  • Page 13: Troubleshooting Guide

    HADOW COMPLETE GPS TRACKING SYSTEM 10. Troubleshooting Guide Shadow Tracker LED indication Indication Conditions LED display Service Limited Service Red Light Flashing No Service Red Light On permanently Mode GSM + GPS not fixed Blue Light Flashing GSM + GPS fixed Turquoise Light Flashing GPRS + GPS Orange Light Brief Flash...
  • Page 14 Fax: +44 (0)1273 480 661 RF Solutions is a member of the Low Power Radio Association. Information contained in this document is believed to be accurate , however no representation or warranty is given and no liability is assumed by R.F. Solutions Ltd. with respect to the accuracy of such information.
