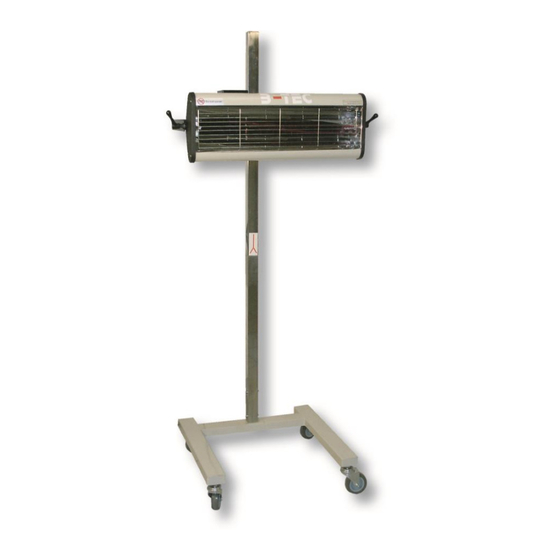

- Page 1 Infrared Model IR-B01-B User Manual for Short Wave Infrared Paint Curing Equipment...
- Page 2 All of our manufactured or assembled parts conform to the listed regulations. If you change the machine without our explicit agreement, this declaration will be herewith invalidated. Product type: Painting- and drying equipment (paint dryer) Type designation: IR-B01-B Serial-#: Construction year: 2015...
-
Page 3: Table Of Contents
Table of Contents 1. Important Information ..........................4 2. Safety Regulations and Maintenance Advice ................... 4 2.1 Work Area ............................4 2.2 Use ..............................5 2.3 Maintenance and Care ........................5 2.4 More Information ..........................5 3. Technical Description of the Machine ...................... 6 3.1 Technical Information ........................ -
Page 4: Important Information
In order to get the best, safe use of this equipment, please read these instructions thoroughly before commencing assembly or operation of the machine. Failure to do so could result in damage or injury for which B-TEC Systems will accept no responsibility or liability. -
Page 5: Use
2.2 Use To reduce the risk of explosion, DO NOT use in paint spray booths or within 10ft of spraying operations, as per the requirement of UL 499. This unit must be operated in a well-ventilated area. Isolate power supply before removing any covers. -
Page 6: Technical Description Of The Machine
2 x 35 min Baking area 24” x 16” inches Baking time 1 - 35 min Dimension: (W x H x L) 28” x 61” x 24” 3.2 Wiring Diagram B-TEC Systems reserves the right to make technical changes without notice... -
Page 7: Spare Parts
3.3 Spare Parts Emitter Cassette Assembly Control box IR-B01-B Parts List Name of Parts Item # Name of Parts Item # Front Wheel B01-1 Protective grill B03-13 Rear Wheel B01-2 Emitter Tube B03-16 Small reflective Pedestal B01-3 B03-21 Panel Heat Dissipating... -
Page 8: Assembly / Installation
4. Installation 1. Insert the upper section ③ of the vertical bar into the lower section ②. 2. Take out the pedestal ①, insert the vertical bar into the pedestal ① and fasten the screws. 3. Fix the locking bracket ④ onto the vertical bar, with the holding bolt facing forward (as seen in drawing below) and tighten the handle. -
Page 9: Operating Instructions
Filler/Stopper Primer Hi-build 10-12 Solid-color Clear coat Waterborne primer 8-10 Note: We suggest that 5 minutes half power / flash time is added when curing high build primers and dark colors. When possible consult a B-TEC paint curing data sheet. -
Page 10: Replacement Of Emitter Lamp Tube
6. Replacement of Emitter Lamp Tube Un-plug the power supply, before replacing the infrared emitter / tube. 1. Remove the side panel. 2. Release the radiating panel. 3. Loosen the two leads in the lamp and remove them. 4. Remove the protective grill in front of the emitter. 5. -
Page 11: Troubleshooting
Adjust IR cassettes for even heat contours of repair distribution For optimal baking performance, we recommend that users should obtain either B-TEC SYTEMS paint curing data, or consult the paint companies’ recommendations. A general guide is supplied on page 9.
