Summary of Contents for LG L1900EQ

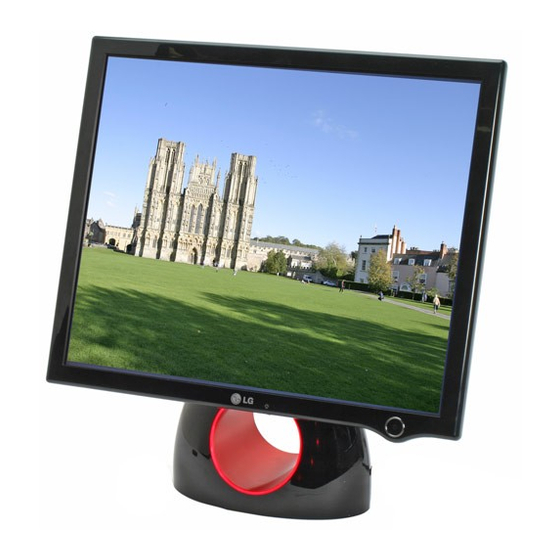

- Page 1 Test Report No.: GETEC-E3-07-017 FCC Class B Class II Permissive Change APPENDIX H : USER’S MANUAL EUT Type: 19” LCD Monitor FCC ID: BEJL1900EQ...
- Page 2 User’s Guide L1900J L1900R L1900E ake sure to read the Important Precautions before using the product. Keep the User's Guide(CD) in an accessible place for future reference. ee the label attached on the product and quote this information to your dealer when you require service.
-
Page 3: Important Precautions
Important Precautions This unit has been engineered and manufactured to ensure your personal safety, however improper use may result in potential eletrical shock or fire hazards. In order to allow the proper operation of all safeguards incorporated in this display, observe the following basic rules for its installation, use, and servicing. - Page 4 Important Precautions On Installation Do not allow anything to rest upon or roll over the power cord, and do not place the display where the power cord is subject to damage. Do not use this display near water such as near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool.
-
Page 5: Using The Computer
Connect with a computer. Using the Computer Connect the signal cable. When attached, tighten the thumbscrews to secure the connection. Use after connecting power cable to AC-DC power adapter inserting it into outlet (Voltage is automatically controlled.) Connecting with DVI-Analog signal input cable Connecting with DVI-Digital signal input cable 1. -
Page 6: Connecting The Display
Connecting the Display Touch button on the front switch panel to turn the power on. When monitor power is turned on, the 'Self Image Setting Function' is executed automatically. (Only Analog Mode) NOTE ‘ Self Image Setting Function’? This function provides the user with optimal display settings.When the user connects the monitor for the first time, this function automatically adjusts the display to optimal settings for individual input signals. - Page 7 Install Forte Manager program. * Be sure to install Forte Manager program.. * What is Forte Manager program? To change or adjust Tracking, Brightness, Contrast or Position, Resolution, Sharpness, Preset use or select Forte Manager program. Install monitor driver file of Users Guide CD provided before installing Forte Manager program.
- Page 8 Install Forte Manager program. ■ Forte Manager Program Function To change or adjust Tracking, Brightness, Contrast or Position, Resolution, Sharpness, Preset use or select Forte Manager program. PICTURE Tracking, Brightness, Contrast Resolution Position, Sharpness, Wizard, Preset f-Engine - MOVIE, TEXT, NORMAL, USER Color - Color Temp.
-
Page 9: Control Panel Functions
Control Panel Functions L1900E Front Panel Controls Rear Control Function Product may be turned on when you touch the button, Power Button and turned off when you touch it once again. * Check power pilot lamp after touching it. Power Indicator Power indicator is blue or red when the product is on, and it automatically blinks in Sleep mode(Energy Saving.) To turn on/off the power indicator manually ~ ~... - Page 10 Control Panel Functions L1900J L1900R Front Panel Controls Control Function Product may be turned on when you touch the button, Power Button and turned off when you touch it once again. Power Indicator Power indicator is blue or red when the product is on, and dark ->...
-
Page 11: Troubleshooting
Troubleshooting Check the following before calling for service. No image appears No image appears Is the power cord of the Check and see if the power cord is connected display connected? properly to the power outlet. Does power indicator If the display is in power saving mode, try moving blink or from dark to the mouse or pressing any key on the keyboard bright mode is... -
Page 12: Display Image Is Incorrect
Troubleshooting Display image is incorrect Display Position is Press Adjust of Forte Manager Program --> Picture incorrect. --> Tracking-->Auto Setup to adjust screen automatically to the optimal condition, which fits to the current mode. Configure by directly adjusting Adjust of Forte Manager Program -->... -
Page 13: Have You Installed The Display Driver
Troubleshooting Have you installed the display driver? Have you installed the Be sure to install the display driver from the display driver? display driver CD (or diskette) that comes with your display. Or, you can also download the driver from our web site: http://www.lge.com. Do you see an Make sure to check if the video card supports "Unrecognized monitor,... -
Page 14: Specifications
Specifications Display 19 inches (48.19cm) Flat Panel Active matrix-TFT LCD Anti-Glare coating 19 inches viewable 0.294mm pixel pitch Sync Input Horizontal Freq. 30 - 83kHz (Analog) 30 - 71kHz (Digital) Vertical Freq. 56 - 75Hz (Automatic) Input Form Separate TTL, Positive/Negative SOG (Sync On Green) Digital Video Input... -
Page 15: Preset Modes (Resolution)
Specifications Preset Modes (Resolution) Display Modes (Resolution) Horizontal Freq. (kHz) Vertical Freq. (Hz) 31.469 640 x 350 31.468 720 x 400 31.469 640 x 480 VESA 37.500 640 x 480 VESA 37.879 800 x 600 46.875 VESA 800 x 600 49.725 832 x 624 48.363... -
Page 16: Kensington Security
Specifications Kensington Security Kensington Security Slot Connected to a locking cable that can be purchased separately at most computer stores Product color represented here may differ from actual product color that customer purchased. - Page 17 Digitally yours...
-
Page 18: Regulatory Information
Regulatory information Regulatory information... -
Page 19: Fcc Compliance Statement
Regulatory Information cont. respecte toutes les exigences du Règlement sur le FCC Compliance Statement matériel brouilleur du Canada. This equipment has been tested and found to comply NOTICE within the limits of a Class B digital device pursuant to Part The regulations are applied only to the products with the 15 of the FCC Rules. - Page 20 Regulatory Information cont. computer and/or display, after a certain period of inactivity, Why do we have environmentally labelled computers? In many countries, environmental labelling has become an shall reduce its power consumption to a lower level, in one established method for encouraging the adaptation of or more stages.
- Page 21 Regulatory Information cont. relevant bio-accumulative TCO’95 requirement permits Monitor Disposal the inclusion of lead, as no replacement has yet been WARNING developed. If you need to dispose of a monitor, ask a qualified service representative for the proper procedure. Improper disposal could Cadmium is present in rechargeable batteries and in the result in personal injury from implosion.
- Page 22 Regulatory Information cont. Approval requirements cover a wide range of issues: ecology, ergonomics, emission of electrical and TCO’99 requires that plastic components weighing more magnetical fields, energy consumption and electrical than 25 grams shall not contain flame retardants with safety. organically bound bromine or chlorine.
- Page 23 The product must be prepared for recycling and the If you want to find out more information about our recycling manufacturer must have a certified environmental program, please contact your local LG vendor or a management system such as EMAS or ISO 14 001 corporate representative of LG.
- Page 24 La LGE. ha annunciato nel 1994 la cosiddetta 'LG http://www.lge.com/experience/social_commitment/enviro Declaration for a Cleaner Environment' (Dichiarazione di ment.jsp LG a favore di un ambiente più pulito), un ideale che da allora funge da principio ispiratore della gestione aziendale. La dichiarazione rappresenta il fondamento che Français consente di intraprendere attività...
- Page 25 LGE. presentó la 'Declaración para un entorno más limpio Declaração é a base que nos tem permitido realizar de LG' en 1994 y este ideal ha servido para guiar nuestros atividades favoráveis ao ambiente com consideração principios empresariales desde entonces. La Declaración atenta aos aspectos econômicos, ambientais e sociais.
- Page 26 ¬ 1994 „Ó‰Û ÍÓÔÓ‡ˆËˇ LGE ÓÔÛ·ÎËÍÓ‚‡Î‡ het milieu 'ƒÂÍ·‡ˆË˛ LG ÔÓ Óı‡Ì ÓÍÛʇ˛˘ÂÈ Ò‰˚', LGE. publiceerde in 1994 de 'LG Declaration for a Cleaner ÍÓÚÓ‡ˇ Ò ÚÂı ÔÓ ÒÎÛÊËÚ ÓÒÌÓ‚Ì˚Ï ÔË̈ËÔÓÏ Environment' (de LG-verklaring met betrekking tot een ÛÔ‡‚ÎÂÌˡ. Õ‡ ÓÒÌÓ‚Â ˝ÚÓÈ ‰ÂÍ·‡ˆËË Ï˚ ÒÏÓ„ÎË...
- Page 27 LG 공급업체나 LG 기업 대표부에 문의하시기 바랍니다. ‰ÂÈÒÚ‚Û˛Ú ÒËÒÚÂÏ˚ ÛÚËÎËÁ‡ˆËË ÓÚıÓ‰Ó‚ Ë ‚ÓÁ‚‡Ú‡ ËÒÔÓθÁÓ‚‡ÌÌÓÈ ÔÓ‰Û͈ËË. ÃÌÓ„Ë ÍÓÏÔÓÌÂÌÚ˚ LG 전자는 기업 개선 정책의 하나로 지구 환경 문제를 ·Û‰ÛÚ ‚ÚÓ˘ÌÓ ËÒÔÓθÁÓ‚‡Ì˚ Ë ÛÚËÎËÁËÓ‚‡Ì˚, ‚ ÚÓ 채택함으로써 보다 나은 환경을 만들어 나가기 위한...
