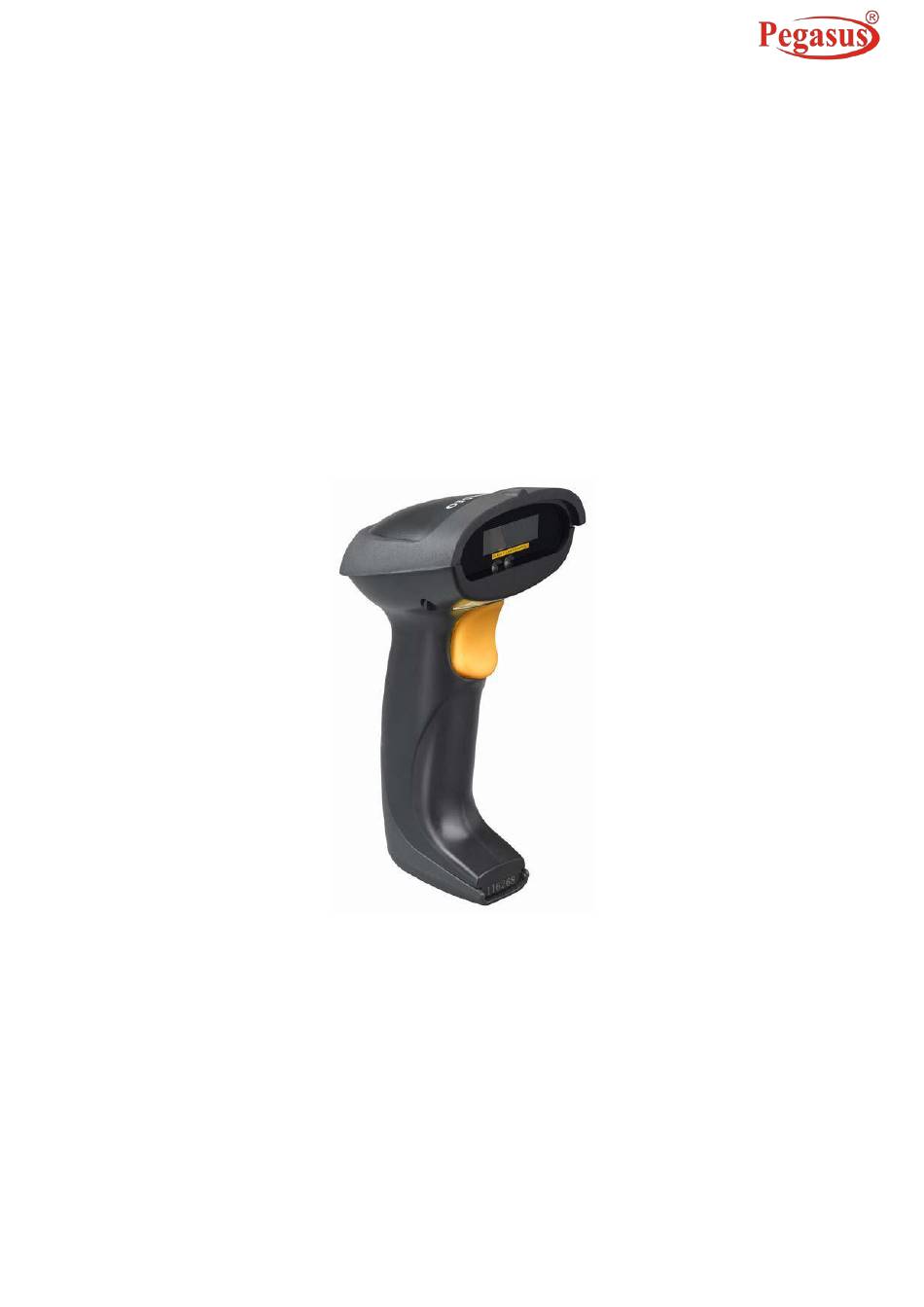

Page 3

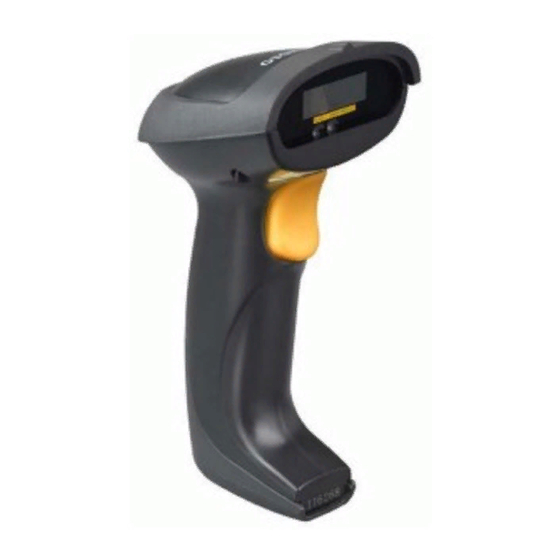

NOTICE Ensure that the optional DC adapter works at +5 VDC, especially for the RS-232 interface cable. All software, including firmware, furnished to the user is on a licensed basis. The right is reserved to make changes to any software or product to improve reliability, function, or design.
1 Specifications 1-1 Technical specifications Table 1-1 Technical specifications Dimensions Height × Width × Depth:8.2 cm × 6.7 cm × 16.8 cm Weight 168 g, without cable Cable Straight 2.0 m Connector Type RJ-45 phone jack connector Case Material PC+TPU Manual (reading special barcode) Programming Method Online...
2 Get Started 2-1 Cable connector pin-outs descriptions Figure 2-1 Cable connector interface pin-outs The pin-outs descriptions in Table 2-1 apply to the cable connector on the scanner and are for reference only. Table 2-1 Cable connector pin-outs descriptions RS232 Keyboard (PS2) Power (+5V) Power (+5V)
2-4 Introduction to installation Note: If any of the below operation is incorrect, turn off the power immediately and check the scanner for any improper connections. Go through all steps again. 2-4-1 Installation - keyboard wedge 1. Switch off the host and unplug the keyboard connector. 2.
2-4-3 Installation - USB The scanner attaches directly to a USB host, and is powered by it. No additional power supply is required. Refer to Figure 7-3, connect the USB interface cable to the bottom of the scanner. Plug the series A connector in the USB host, or an available port of the terminal. Windows will automatically detect the USB device.
2-5 Scanning The scanner has two scanning modes: hand-held and auto-detection. When the scanner is scanning, ensure the scan line crosses every bar and space of the symbol. RIGHT WRONG Figure 2-8 2-6 Auto-detection The auto-detection scanning mode has two operating modes: in-stand and always ON. The following is an introduction to in-stand auto-detection mode.
3 Parameter menus 3-1 Example: configure scanner Important notes: 1. After each successful programming, the scanner will beep twice. 2. Throughout the programming barcode menus, the factory default settings are indicated with asterisks (*). 3. During the process of programming, LED is lighting to indicate the programming correctness. LED will go off if any incorrect programming operation performed.
Page 17
RTS/CTS (Host: High RTS) XON/XOFF ACK/NAK Inter-character delay Alpha. entries Option bar code END bar code www.Pegasustech.net...
3-2 Operate the scanner by receiving command via UART Note The information in this chapter is provided for the scanner with RS232 cable or USB cable. If the scanner is with USB cable, the setting of USB device type must be set as “USB virtual COM”. Please refer to chapter of 3-6 USB interface.
3-3 Interface selection This scanner supports interfaces such as keyboard wedge, RS-232 serial wedge, and USB interface. In most of the cases, simply selecting an appropriate cable provided by the manufacturer will work for a specific interface. Interface selection: Auto detection -By setting this function, the scanner will automatically detect the keyboard wedge, RS-232 or USB interface for user.
3-4 Keyboard wedge interface Keyboard type: As a keyboard interface, the scanner supports most of the popular PCs and IBM terminals. Keyboard layout: The scanner supports different national keyboard layouts. Clock period: According to the PS2 protocol, the clock is provided by the device, e.g. keyboard or scanner, with the period between 60us to 100us.
Page 21
SETUP Option bar code Option Alpha. entry Single-scan setting Keyboard type IBM AT, PS/2 Apple Mac compatibles Turkish F Turkish Q French Italian Keyboard layout Spanish Slovak Denmark Japanese German Belgian Russian 60us 70us Clock period 80us 90us 100us 200us www.Pegasustech.net...
3-5 RS-232 interface Host type: Standard- The scanner is connected to a standard RS-232 interface. OPOS/JPOS - The scanner is connected to a POS terminal which may be necessary to install the OPOS/JPOS driver to be compatible with the manufacturer's scanner. The OPOS/JPOS driver is provided by the scanner manufacturer;...
Page 25
SETUP Option bar code Option Alpha. entry Single-scan setting Standard Host type OPOS/JPOS None RTS/CTS (Host idle: Low RTS) Flow control RTS/CTS (Host idle: High RTS) XON/XOFF ACK/NAK Inter-character delay 10ms 20ms 40ms 80ms Reserved Response delay 01-99 01-99 (100ms) Baud rate 1200 www.Pegasustech.net...
Page 26
2400 4800 9600 19200 38400 57600 115200 None Parity Even Data bit 8 bits 7 bits Stop bit One bit Two bits www.Pegasustech.net...
3-6 USB interface USB device type: HID keyboard– By setting, the scanner is used as a USB HID keyboard emulation device. The keyboard layout setting follows the setting of keyboard layout in the chapter of Keyboard wedge. USB virtual COM– By setting, the scanner emulate a regular RS232-based COM port. If a Microsoft Windows PC is connected to the scanner, a driver is required to install on the connected PC.
Page 28
SETUP Option bar code Option Alpha. entry Single-scan setting HID keyboard USB device type HID keyboard for Apple Mac USB virtual COM HID for OPOS/JPOS Turkish F Turkish Q French Italian Keyboard layout Spanish Slovak Denmark Japanese German Belgian Russian Inter-character delay 10ms 20ms...
3-7 Scan mode & some global settings Scan mode: Good-read off-The trigger button must be pressed once to activate scanning. The light source of scanner stops scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed.
Page 31
Character output restraint: Printable character only- If this option is selected, the scanner will output the printable characters only, i.e. in ASCII from 20H to 7EH. Alphanumeric character only- If this option is selected, the scanner will output the alphanumeric characters only, i.e.
Page 32
SETUP Option bar code Option Alpha. entry Single-scan setting Good-read off Momentary Scan mode Alternate Continue Timeout off Standby duration 01-99 01-99 (second) 00-FF Same barcode delay time 00-FF (50ms) Double confirm 00-09 00-09 (00: no ) Global max. code length 04-99 04-99 Global min.
Page 33
SETUP Option bar code Option Alpha. entry Single-scan setting None Character output restraint Printable character only Alphanumeric character only Decoder optimization Disable Enable Data output delay 00-FF in continue-scan mode 00-FF (100ms) FF (Never) 15 min Enter sleeping-mode delay 30 min 60 min Never Reserved...
3-8 Indication Power on alert: After power-on the scanner will generate an alert signal to indicate a successful self- test. LED indication: After each successful reading, the LED above the scanner will light up to indicate a good barcode reading. Beeper indication: After each successful reading, the scanner will beep to indicate a good barcode reading, and its beep tone duration is adjustable.
3-9 Auto-detection setting Auto-detect sensor: By setting Enable, the scanner will start operating if any nearby object has been detected. The laser light of scanner stops scanning when there is a successful reading or no code is decoded after the Stand-by duration elapsed. Once the laser light stops scanning, the present object must be removed to enable Auto-detect sensor.
3-10 UPC-A Read: Format System character Data digits (10 digits) Check digit (1 digit) Check digit verification: The check digit verification is optional. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Code ID is a one-or-two-character string used to represent the symbol upon a succeeding reading.
Page 37
SETUP Option bar code Option Alpha. entry Single-scan setting 2 digits 5 digits 2 or 5 digits None Truncate leading zeros Truncation/Expansion Expand to EAN-13 Truncate system character Add country code Reserved www.Pegasustech.net...
3-11 UPC-E Read: Format System character “0” Data digits (6 digits) Check digits (1 digit) Check digit verification: The check digit verification is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of 3-10 UPC-A.
Page 39
SETUP Option bar code Option Alpha. entry Single-scan setting 2 digits 5 digits 2 or 5 digits None Truncate leading zeros Truncation/Expansion Expand to EAN-13 Expand to UPC-A Truncate system character Add country code Reserved www.Pegasustech.net...
3-12 UPC-E1 Read: Format System character “1” Data digits (6 digits) Check digits (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of 3-10 UPC-A.
Page 41
SETUP Option bar code Option Alpha. entry Single-scan setting 2 digits 5 digits 2 or 5 digits None Reserved Truncation/Expansion Expand to EAN-13 Expand to UPC-A Truncate system character Add country code Reserved www.Pegasustech.net...
3-13 EAN-13 (ISBN/ISSN) Read: Format Data digits (12 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted. EAN-13 code ID setting: Refer to Code ID setting of 3-10 UPC-A.
3-14 EAN-8 Read: Format Data digits (7 digits) Check digit (1 digit) Check digit verification: The check digit is optional and made as the sum of the numerical value of the data digits. Check digit trans.: By setting Enable, check digit will be transmitted. Code ID setting: Refer to Code ID setting of 3-10 UPC-A.
Page 46
SETUP Single-scan setting Option bar code Option Alpha. entry 2 or 5 digits None Truncation/Expansion Truncate leading zero Expand to EAN-13 Reserved www.Pegasustech.net...
3-15 Code 39 (Code 32, Trioptic Code 39) Read: Format Start character (*) Data digits (variable) Check digit (optional) End character (*) Check digit verification: The check digit is optional and made as the sum module 43 of the numerical value of the data digits.
3-16 Interleaved 2 of 5 Read: Format Data digits (Variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. There are two optional check digit algorithms: the specified Uniform Symbol Specification (USS) and the Optical Product Code Council (OPCC).
3-17 Industrial 2 of 5 (Discrete 2 of 5) Read: Format Data digits (variable) Max./Min. code length: Refer to Max./Min. code length of 3-15 Code 39 (Code 32, Trioptic Code 39). Code ID setting: Refer to Code ID setting of 3-10 UPC-A.
3-18 Matrix 2 of 5 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 10 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
3-19 Codabar Read: Format Start Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 16 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
3-20 Code 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min. code length: Refer to Max./Min. code length of 3-15 Code 39 (Code 32, Trioptic Code 39).
3-21 UCC/EAN 128 Read: Format Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max. /Min. code length: Refer to Max./Min. code length of 3-15 Code 39 (Code 32, Trioptic Code 39).
3-22 ISBT 128 Read: Format Start character (“=” or “&”) Data digits (variable) Check digit (optional) Check digit verification: The check digit is made as the sum module 103 of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
3-23 Code 93 Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The check digit is made as the sum module 47 of the numerical values of all data digits. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min.
3-24 Code 11 Read: Format Data digits (variable) Check digit 1 (optional ) Check digit 2 (optional) Check digit verification: The check digit is presented as the sum module 11 of all data digits. Check digit transmission: By setting Enable, check digit 1 and check digit 2 will be transmitted upon your selected check digit verification method.
Page 67
SETUP Option bar code Option Alpha. entry Single-scan setting Read Disable Enable Disable Check digit verification One digit Reserved Reserved Check digit transmission Disable Enable Max. code length 00-99 00-99 Min. code length 00-99 00-99 Code ID setting 00-FF 00-FF (ASCII) <V>* Insert group selection...
3-25 MSI/Plessey Read: Format Data digits (variable) Check digit 1 (optional) Check digit 2 (optional) Check digit verification: The MSI/Plessey has one or two optional check digits. There are three methods of verifying check digits, i.e. Mod 10, Mod 10/10 and Mod 10/11. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits.
3-26 UK/Plessey Read: Format Data digits (variable) 2 check digits (optional) Check digit verification: The UK/Plessey has one or two optional check digits. The check digit 1 and check digit 2 will be calculated as the sum module 10 or 11 of the data digits. Check digit transmission: By setting Enable, check digit will be transmitted.
3-27 China Post Read: Format 11 Data digits Max. /Min. code length: Refer to Max./Min. code length of 3-15 Code 39 (Code 32, Trioptic Code 39). The code length of China Post is 11. Code ID setting: Refer to Code ID setting of 3-10 UPC-A.
Page 73
SETUP Option bar code Option Alpha. entry Single-scan setting Read Disable Enable Reserved Reserved Max. code length 00-99 00-99 Min. code length 00-99 00-99 Code ID setting 00-FF 00-FF (ASCII) <T>* Insert group selection 00-44 00-44 Reserved www.Pegasustech.net...
3-28 China Finance Note: This type of barcode is not Omni -directionally decodable. The encodable character set includes numeric 0 to 9. Among the symbol of 0 to 9, 0 and 2, 4 and 9, 5 and 8, 6 and 7, have the symmetrical pattern;...
Page 75
SETUP Option bar code Option Alpha. entry Single-scan setting Read Disable Enable Max. code length 00-99 00-99 Min. code length 00-99 00-99 Check digit verification Disable Reserved Disable Enable Only 5 converted to A Leading character 5/6/7/8/9 converted to A/B/C/D/E Only 6 converted to B Only 7 converted to C Only 8 converted to D...
Page 76
SETUP Option bar code Option Alpha. entry Single-scan setting Assigned to 8(D) Assigned to 9(E) Assigned to 1 Assigned to 2 Assigned to 3 Assigned to 4 Code ID setting 00-FF 00-FF (ASCII) <Y>* Insert group selection 00-44 00-44 Laser Light Direction Setting: By scanning the barcode above, the decoding direction of the scanner’s laser light is from left to right.
3-29 Telepen Read: Format Start character (_) Data digits (variable) Check digit End character (z) Check digit verification: The check digit verification is optional. Check digit transmission: By setting Enable, check digit will be transmitted. Max./Min. code length: Refer to Max./Min. code length of 3-15 Code 39 (Code 32, Trioptic Code 39).
Page 78
SETUP Multiple-scan setting Single-scan setting Alpha. Option barcode Option entry Disable Read Enable Disable Check digit verification Enable Disable Check digit transmission Enable 00-99 Max. code length 00-99 00-99 Min. code length 00-99 00-FF Code ID setting 00-FF 00-66 Insertion group selection 00-66 Alphanumeric Encode character set type...
3-30 GS1 DataBar (GS1 DataBar Truncated) GS1 DataBar Truncated is structured and encoded the same as the standard GS1 DataBar format, except its height is reduced to a 13 modules minimum; while GS1 DataBar should have a height greater than or equal to 33 modules. Read: Format 16 Data digits...
3-31 GS1 DataBar Limited Read: Format 16 Data digits Code ID setting: Refer to Code ID setting of 3-10 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-10 UPC-A. Conversion: Refer to Conversion of 3-30 GS1 DataBar (GS1 DataBar Truncated).
3-32 GS1 DataBar Expanded Read: Format Data characters (variable) Code ID setting: Refer to Code ID setting of 3-10 UPC-A. Insertion group selection: Refer to Insertion group selection of 3-10 UPC-A. Conversion: UCC/EAN 128- Refer to Code ID transmission of 3-35 String transmission, ]Cm will be identified as AIM ID.
3-33 G1-G4 & C1-C2 & FN1 substitution string setting Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Suffix string setting: The <enter > key is represented in different ASCII when it is applied by different OS. For a Windows/DOS OS, <enter>...
Page 84
also be set to be repeated. This setting is ignored when the truncate number is more than the barcode data characters. The option of “FF” for this setting is not active while the option of Truncate leading G5 string setting is “00”. Example: Truncate all leading zeros for all symbols.
Page 86
SETUP Option bar code Option Alpha. entry Single-scan setting <0> Once Repeat of a G5 character setting Defined times 01-22 Un-defined times (All) A un-defined character Truncate ending G4 string setting 1-22 defined characters 01-7F <0> Once Repeat of a G4 character setting Defined times 01-22 Un-defined times (All)
3-34 G1-G4 string position & Code ID position Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Insert G1/G2/G3/G4 string position: The scanner offers 4 positions to insert strings among the symbol.
3-35 String transmission Note: The information in this chapter is closely related to the chapter of String setting. Format of barcode data transmission Prefix Code name Preamble Code ID Code length Code data Code ID Postamble Suffix Prefix transmission: By setting Enable, prefix will be appended before the data transmitted. Suffix transmission: By setting Enable, suffix will be appended after the data is transmitted.
Page 89
SETUP Single-scan setting Option bar code Option Alpha. entry Prefix transmission Disable Enable Suffix transmission Disable Enable Code name transmission Disable Enable Preamble transmission Disable Enable Postamble transmission Disable Enable Disable Code ID transmission Proprietary ID AIM ID Code length transmission Disable Enable Disable...
Page 90
SETUP Single-scan setting Option bar code Option Alpha. entry Disable FN1 substitution transmission Keyboard wedge/USB RS-232 Keyboard wedge/ USB/RS-232 All-non-printable-character string Disable transmission with string setting Enable Transmit the first N data characters only 01-99 01-99 Transmit the last N data characters only 01-99 01-99 www.Pegasustech.net...
4 Troubleshooting Problem Possible causes Possible solutions Nothing happens when you No power to the scanner. Check the system power. Ensure the follow the operating instructions, power supply is connected. or the scanner displays erratic Incorrect cables. Use the original cables. behavior.
5 Maintenance Cleaning the exit window is the only maintenance required. A dirty window may affect scanning accuracy. Do not allow any abrasive material to touch the window. Remove any dirt particles with a damp cloth. Wipe the window using a tissue moistened with water. Do not spray water or other cleaning liquids directly into the window.
6 Assembling the stand See the figure above, tighten the screws. Bend the neck to the desired position for scanning. Screw mounting: Screw one #10 wood screw into each screw-mount-hole until the base of the stand is secured. Tape mounting: ①Peel the paper liner off one side of each piece of tape and place the sticky surface over each of the three rectangular tape holders.
7 Barcode representing non-printable character Notes to make the following barcode: 1. According to different barcode printing software, the method of printing following barcode is different. 2. If using CODESOFT software, firstly read the information through “Help→Index→Code128→Special input syntax”. Also refer to ASCII table. For example, if we wish to make “F1” barcode, select “code128”, then select “CODE A”...
8 ASCII Table for keyboard wedge for RS-232 Null Down Left Right PgUp PgDn Home Enter Insert Ctrl+ Delete Alt+ Notes: The 2nd and the 3rd columns above are used for keyboard wedge only. “ & ‘ < > Example: ASCII “A” = “41”. www.Pegasustech.net...
10 Return default parameters & Firmware version list WARNING: Default value initialization If you wish to return the scanner to all the factory default settings, scan the barcode above. Firmware version list If you wish to display the firmware version, scan the barcode above.
