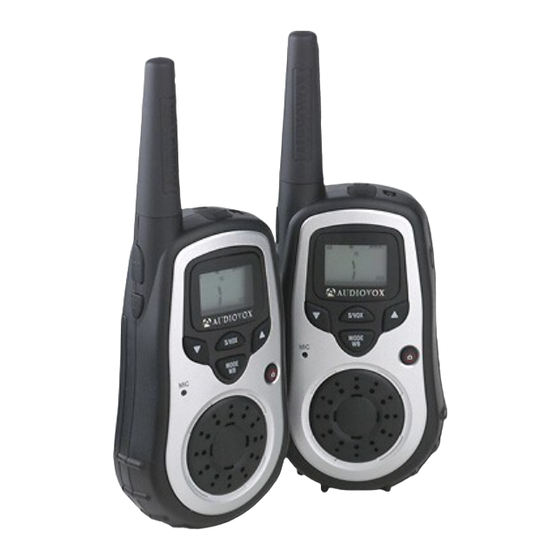

General Mobile Radio Service (GMRS)
Model : GMRS7001CH
G M R S9010CH
Owner's Manual
Released: JAN-27-04
Customer Service
1-800-290-6650
128-0000
1 of 24

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMRS9010CH and is the answer not in the manual?

Questions and answers

Summary of Contents for Audiovox GMRS9010CH

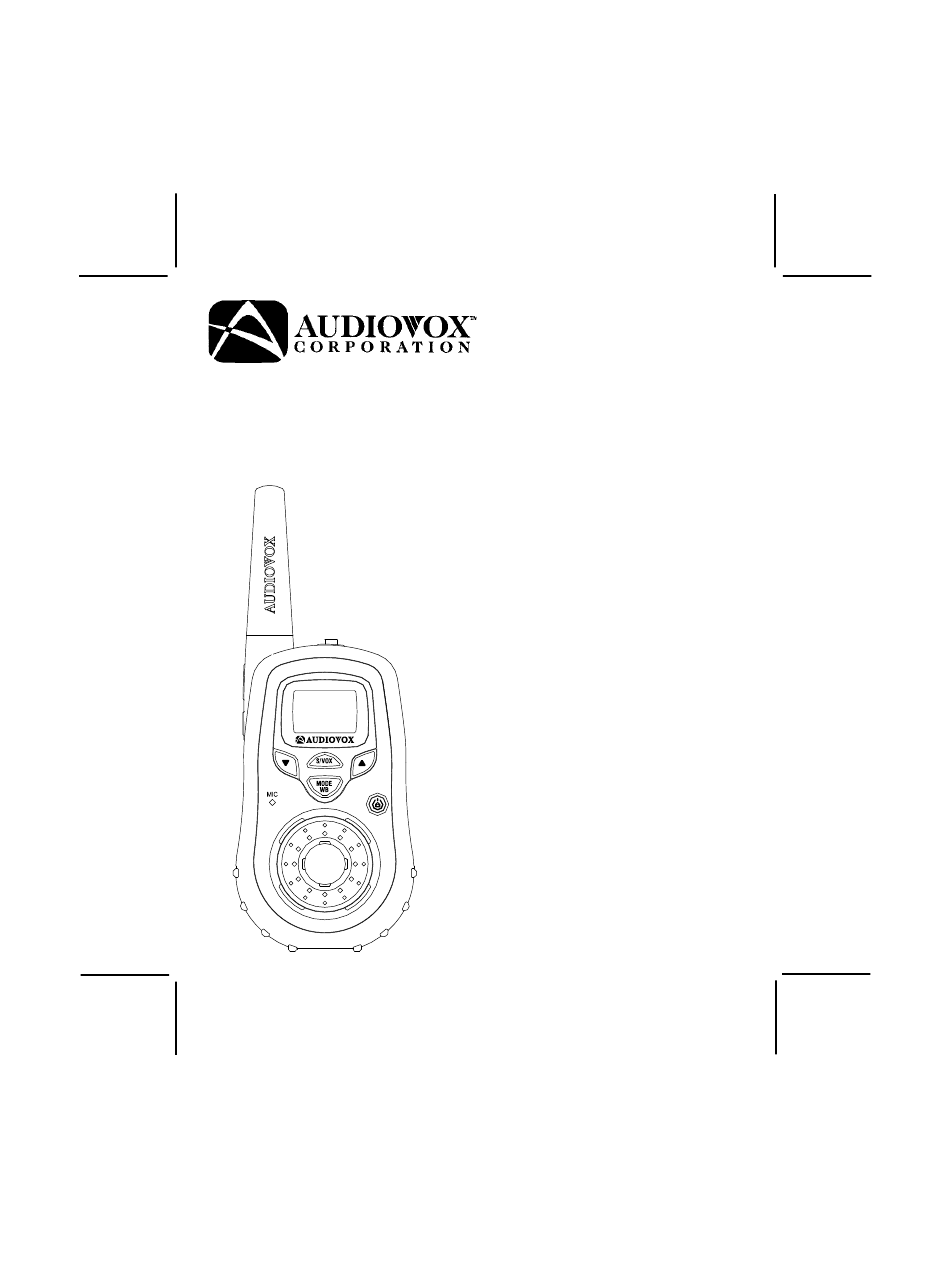

  • Page 1 General Mobile Radio Service (GMRS) Model : GMRS7001CH G M R S9010CH Owner’s Manual Customer Service 1-800-290-6650 128-0000 1 of 24 Released: JAN-27-04...
  • Page 2: Safety Information

    These are not indicative of a fault condition. Avoid placing the GMRS9010CH radio transceiver for prolonged periods ° °...
  • Page 3: Fcc Warning

    If rechargeable batteries are used, such as Nickel Metal Hydride (NiMH), use only the supplied Audiovox-approved rechargeable batteries. Use of the Audiovox charger (also supplied) with other brands of batteries is not recommended, as battery charging times will vary with different brands.
  • Page 4 Model GMRS9010CH (FCC License Required) (REF) (REF) 1. Battery Door 9. Built-in Microphone 2. Monitor/Backlight Button 10. Up Channel/Volume Button 3. Detachable Carry Clip 11. Down Channel/Volume Button 4. Push-To-Talk (PTT) Button 12. MODE/Weather Button 5. Antenna 13. Power On/Off & Keylock 6.
  • Page 5 Model GMRS9010CH DISPLAY 1. Beep Tone Indicator: Icon appears when beep button confirmation tone is selected; icon disappears when tone is off. 2. Key Lock Indicator: Icon appears when the keypad is locked. This function disables keys such as channel up/down, SCAN and MODE.
  • Page 6 AC Wall Adapter and/or optional Desktop Charger. This will ensure optimum performance for the GMRS9010CH. Battery charging time is typically 16-20 hours. Use of the Audiovox charging equipment with other brands of rechargeable batteries is not recommended as battery charging times will vary.
  • Page 7 NOTE: To extend battery life, avoid overcharging the batteries. 3. Various Brands of Rechargeable Batteries - Use of the supplied Audiovox AC Wall Adapter with other brands of recharge able batteries is not recommended, as battery charging times will vary with different brands of batteries. Refer to the manufacturer’s instructions for charging other brands of batteries.
  • Page 8 The following guidelines will improve performance and provide longer operating times for the GMRS9010CH: Do not mix old and new batteries. The use of alkaline-type batteries is recommended to provide the longest operating time. Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.
  • Page 9 GMRS9010CH OPERATIONAL MODES GMRS/FRS BAND WEATHER BAND CHANNEL CHANNEL SELECT SELECT CTCSS SELECT WEATHER BAND POWER (GMRS Channels SELECT SELECT Only) VOX LEVEL SELECT DUAL NOTE: To switch between GMRS/FRS WATCH and Weather Band modes, BUTTON press and hold the Mode button BEEP for 2 seconds.
  • Page 10 Adjusting the Volume (10, 11) With the unit powered on, press the Up Channel/Volume button ( ) to increase volume and the Down Channel/Volume button ( ) to decrease volume. The display will indicate the current volume level between 1 and 7 by the small number in the icon ( U Monitor/Display Backlight Button (2) This button is used to check activity on the current frequency before...
  • Page 11: Operating Modes And Features

    External Speaker (SPK)/Microphone (MIC)/(CHG) Jack (6) This jack accepts an Audiovox headset/microphone connector, or the optional Charging Adapter connector. For optional equipment and accessories for the GMRS9010CH visit the Audiovox web site at www.audiovox.com. Scan/VOX Button (14) Press this Button momentarily to enable or disable the scan mode. Press and hold the button for more than 2 seconds to enable or disable the VOX mode;...
  • Page 12: Channel Selection

    Channel Selection In order to communicate with other GMRS units, both transmitting and receiving party must be on the same frequency. The GMRS9010CH has 22 channels (frequencies) indicated by the large digits on the LCD display panel. Channels 1 through 7 are the shared GMRS/FRS channels.
  • Page 13 CTCSS Mode (Sub-Channel) Selection The Coded Tone Controlled Squelch System (CTCSS) provides 38 Sub-Fre- quencies. This feature allows you to utilize the coded squelch tones (01– 38) within a main channel, and enables you to communicate with another party on the same main channel using the same subcode. (This filters out unwanted transmissions without the same coded squelch tone).
  • Page 14: Dual Watch Mode

    - Press the Up or Down button to toggle between the High and Low se- lections. - Press the PTT button momentarily to confirm selection. VOX Sensitivity Level Selection This selection enables you to set the sensitivity level to compensate for ambient noise in your immediate area.
  • Page 15: Roger Beep Tone

    - To select a subcode for the dual watch channel, press the MODE button while the selected dual watch channel is flashing. Then use the Up and Down buttons to select the desired CTCSS subcode - Press the PTT button momentarily to confirm selection of the dual watch channel.
  • Page 16: Call Ringer Selection Mode

    Call Ringer Selection Mode The transceiver provides 3 user-selectable call ringer melodies to alert you to an incoming call. To select your favorite call ringer melody: - From GMRS/FRS standby mode (shared channels 1-7 or GMRS only channel (15-22) selected), press the MODE Button 8 times. From FRS standby mode (channels 8-15), press the MODE Button 7 times.
  • Page 17 Auto Key Lock Selection Mode This feature prevents accidental channel change to the preferred settings of the unit. The Auto Key Lock function temporarily disables the MODE, Up/ Down and SCAN Buttons. To access the Auto Key Lock selection menu: - From GMRS/FRS standby mode, press and hold the Power Button for 2 seconds to enable the Auto Key function;...
  • Page 18: Weather Alert Mode

    To change the channel: - Press the Up Button (10) briefly to move to the next higher main channel number. - Press the Down Button (11) briefly to move to the next lower main channel number. NOTE: When the weather band operation mode is entered, the trans- ceiver will bypass the squelch setting and open the channel.
  • Page 19: Notes For Good Communication

    NOTES FOR GOOD COMMUNICATION 1 . The GMRS9010CH 22 channels are shared on a ‘take turns’ basis. This means other groups may be talking on any of the channels. A common code of ethics/courtesy is to switch to another vacant channel and not to attempt to talk over someone who is already using the channel you first selected.
  • Page 20: Troubleshooting

    • Turn your transceiver off on board aircraft when requested to do so. • Do not place your radio in front of a vehicle’s air-bag. If the air-bag de- ploys, it could propel the transceiver like a projectile causing bodily injury. Troubleshooting Problem Possible cause...
  • Page 21 T T T T T ec echnical Specif hnical Specif hnical Specif hnical Specifica ications: tions: tions: tions: hnical Specif tions: General Frequency Range: Channels 1-7 (Shared with FRS Radios) Refer to frequency chart on next page Channels 8-14 (FRS only) Refer to frequency chart on next page Channels 15-22 (GMRS only) Refer to frequency chart on next page...
  • Page 22: Main Channel Frequencies

    This transceiver complies with FCC regulations for use in the United States of America. Use in other countries may be prohibited or restricted by local regulation. Please check with the local regulating agency be- fore using this device outside the United States of America. Main Channel Frequencies: NOTE: Channels 1 through 7 are shared with FRS radios.
  • Page 23 Continuous Tone Coded Squelch System Tone Frequencies (in Hz) CTCSS Freq. Hz CTCSS Freq. Hz 67.0 131.8 71.9 136.5 74.4 141.3 77.0 146.2 79.7 151.4 82.5 156.7 85.4 162.2 88.5 167.9 91.5 173.8 94.8 179.9 97.4 186.2 100.0 192.8 103.5 203.5 107.2 210.7...
  • Page 24: 90-Day Limited Warranty

    90 DAY LIMITED WARRANTY Applies to Audiovox Family Radio and General Mobile Service Products. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven...
  • Page 25 © 2004 Audiovox Electronics Corp., Hauppauge, NY 11788 Printed in China 128-0000 128-0000 25 of 25...
