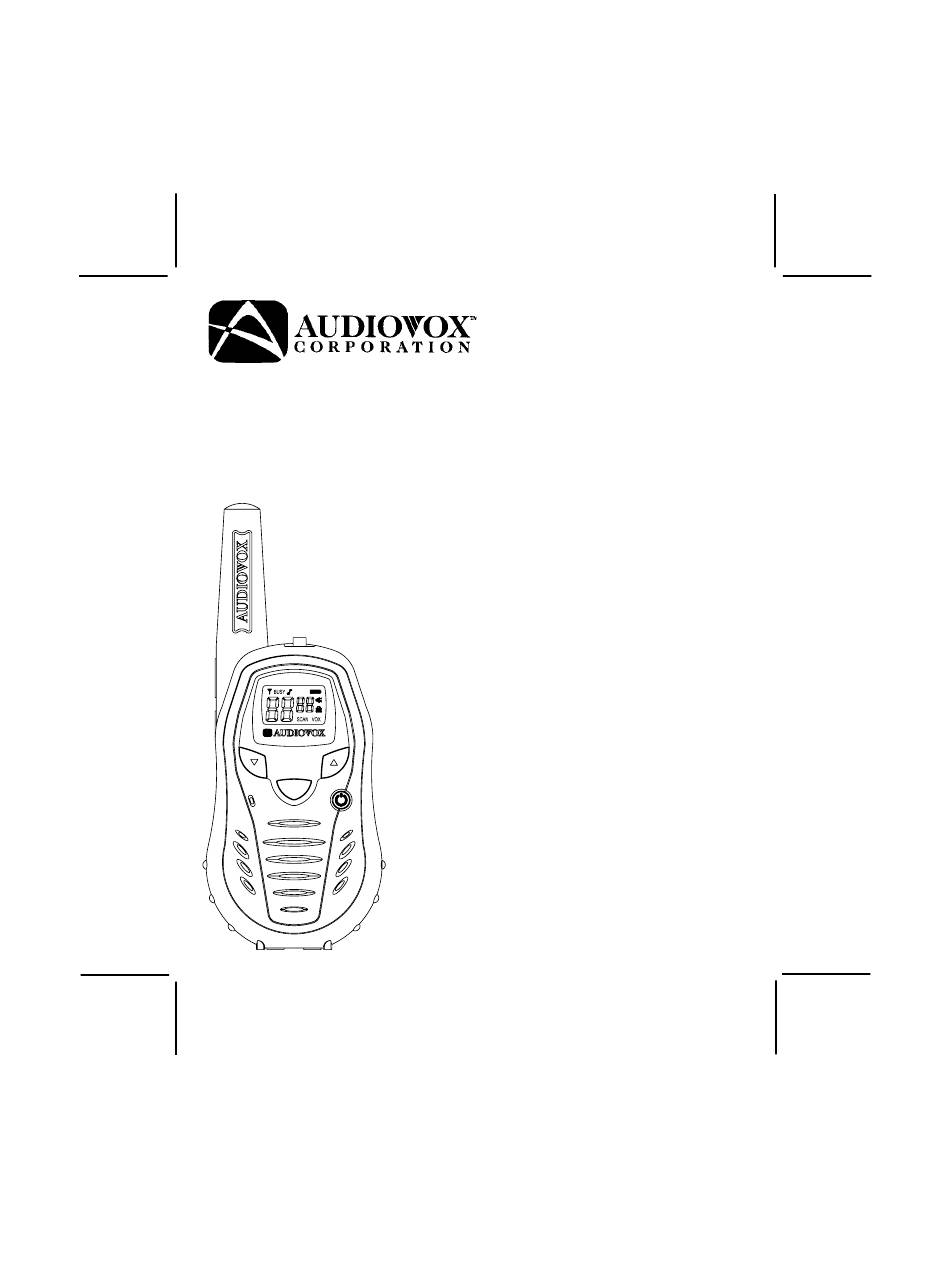

General Mobile Radio Service (GMRS)
Model : GMRS602
.
Owner's Manual
HI
LO
MODE
VOX
S
128-7027
1 of 28
:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GMRS602 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Audiovox GMRS602

Summary of Contents for Audiovox GMRS602

  • Page 1 General Mobile Radio Service (GMRS) Model : GMRS602 Owner’s Manual MODE 128-7027 1 of 28...
  • Page 2 THIS PAGE LEFT BLANK INTENTIONALLY 128-7027 2 of 28...

  • Page 3: Safety Information

    These are not indicative of a fault condition. Avoid placing the GMRS602 radio transceiver for prolonged periods of ° °...

  • Page 4: Fcc Warning

    Never attempt to charge alkaline or dry cell batteries, as batteries may burst causing personal injury and damage to the product. If rechargeable batteries are used, such as Nickel Metal Hydride (NiMH), use only Audiovox- approved rechargeable batteries. Use of the optional Audiovox charger with other brands of batteries is not recommended, as battery charging times will vary with different brands.
  • Page 5 Model GMRS602 (FCC License Required) (REF) MODE (REF) 1. Battery Cover 8. Liquid Crystal Display (LCD) 2. Monitor (M) Button 9. Built-in Microphone 3. Detachable Carry Clip 10. Up Channel/Volume Button 4. Push-To-Talk (PTT) and Func- 11. Down Channel/Volume tion Confirmation Button Button 5.
  • Page 6 Model GMRS602 DISPLAY 1. Roger Beep Tone Indicator: This icon appears when the Roger Beep tone is on, and disapppears when the tone is not in use. 2. Transmit Indicator: Icon appears when the unit is in the transmit mode (PTT button activated or VOX mode active).
  • Page 7 This will ensure optimum performance for the GMRS602. Battery charging time is typically 16 - 20 hours. Use of the optional Audiovox charging equipment with other brands of rechargeable batteries is not recommended as battery charging times will vary.
  • Page 8 3. Various Brands of Rechargeable Batteries - Use of the Audiovox charger(s) with other brands of rechargeable batteries is not recommended, as battery charging times will vary with different brands of batteries. Refer to the manufacturer’s instructions for charging other brands of batteries.
  • Page 9 The following guidelines will improve performance and provide longer operating times for the GMRS602: Do not mix old and new batteries. The use of alkaline-type batteries is recommended to provide the longest operating time. Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.
  • Page 10 NOTE: To differentiate between operating modes, look for HI or LO indication below the battery power level indicator when in GMRS mode.Refer to the appropriate section of this manual for de- tailed operating instructions for each mode. Channels 1 through 7 are shared GMRS/FRS.
  • Page 11 Monitor/Display Backlight Button (2) This button is used to to check activity on the current frequency before transmitting. Check activity by pressing the Monitor (M) Button longer than 2 seconds; the icon will apppear on the display and you will hear static if frequency is clear.
  • Page 12 External Speaker (SPK)/ Microphone (MIC)/CHG Jack (6) This jack accepts both the supplied Audiovox earbud/microphone connector and the wall charging adapter. For optional equipment and accessories for the GMRS602, refer to page 7 and/or visit the Audiovox web site at www.audiovox.com. Scan Button (13) With the unit in standby mode, press the Power On/Off Button momentarily to enable or disable the scan function;...
  • Page 13 In order to communicate with other GMRS/FRS units, both the transmit- ting and receiving party must be on the same frequency. The GMRS602 has 22 channels (frequencies) indicated by the large digits on the LCD display panel. Channels 1 through 7 are the shared GMRS/FRS channels.
  • Page 14 HI or LO icon will be displayed. Communication with Audiovox GMRS/ FRS and compatible units is possible on these 22 channels. Before trans- mitting on the selected channel, press the Monitor (M) Button (2) to check the activity on that channel. If there is activity on the selected channel, change to another channel that is clear.
  • Page 15 NOTE: To communicate with other GMRS/FRS units, they must be switched to the same channel and CTCSS subcode. To commu- nicate with other GMRS units that do not have subcodes, switch your unit to the same channel with the subcode set to oF. The CTCSS subcodes do not prevent others from hearing your transmission.
  • Page 16 Roger Beep Tone The Roger Beep is a tone which is automatically transmitted whenever the PTT button is released and the tone is enabled. This tone alerts the receiving party that the transmission has been terminated intentionally. To enable and disable the Roger Beep tone: - From GMRS standby mode, press the MODE Button 4 times (in FRS mode, 3 times) until the flashing Roger Beep icon ( ) appears with...
  • Page 17 Call Ringer Selection Mode The transceiver provides a transmit call ring melody at the receiving unit to alert you to an incoming call. To activate the call ringer melody: - From GMRS/FRS standby mode, press the PTT button twice in quick succession;...

  • Page 18: Notes For Good Communication

    NOTES FOR GOOD COMMUNICATION 1 . The GMRS602 22 channels are shared on a ‘take turns’ basis. This means other groups may be talking on any of the channels. A common code of ethics/courtesy is to switch to another vacant channel and not to attempt to talk over someone who is already using the channel you first selected.
  • Page 19 Warning • Do not operate the transceiver unless you are licensed to do so. • Remove the batteries from the transceiver if it is not expected to be used for long periods. This will eliminate the possibility of chemicals leaking from the batteries and corroding the transceiver.

  • Page 20: Troubleshooting

    Troubleshooting Problem Possible cause Correction No transmission Weak batteries Charge or replace batteries while pressing Incorrect battery polarity Install the batteries the PTT Button following the directions in paragraph Installing the Batteries. Weak or no Weak batteries Charge or replace batteries signal received Channel and privacy Adjust the transceiver’s...
  • Page 21 Technical Specifications: General Frequency Range: Channels 1 through 7 are shared with FRS radios. Refer to frequency chart on page 23. Channels 8 through 14 are FRS only. Refer to frequency chart on page 23. Channels 15 through 22 are GMRS only.
  • Page 22 THIS PAGE LEFT BLANK INTENTIONALLY 128-7027 22 of 28...
  • Page 23 This transceiver complies with FCC regulations for use in the United States of America. Use in other countries may be prohibited or restricted by local regulation. Please check with the local regulating agency be- fore using this device outside the United States of America. Main Channel Frequencies: NOTE: Channels 1 through 7 are shared with FRS radios.
  • Page 24 CHANNELCROSS REFERENCE FOR 14 AND 15 CHANNEL GMRS/FRS RADIO TO 22 CHANNEL GMRS/FRS RADIO CHANNELCROSS REFERENCE CHANNEL CROSS REFERENCE FOR 15 CHANNEL GMRS/FRS FOR 14 CHANNEL FRS RADIO TO 22 CHANNEL RADIO TO 22 CHANNEL GMRS/FRS RADIO GMRS/FRS RADIO NOTE WHEN USING RADIOS PRODUCED BY OTHER MANUFACTURERS, COMPARE CHANNEL FREQUENCIES FOR COMPATIBILITY.
  • Page 25 Continuous Tone Coded Squelch System Tone Frequencies (in Hz) CTCSS Freq. Hz CTCSS Freq. Hz 67.0 131.8 71.9 136.5 74.4 141.3 77.0 146.2 79.7 151.4 82.5 156.7 85.4 162.2 88.5 167.9 91.5 173.8 94.8 179.9 97.4 186.2 100.0 192.8 103.5 203.5 107.2 210.7...

  • Page 26: 90-Day Limited Warranty

    90 DAY LIMITED WARRANTY Applies to Audiovox Family Radio and General Mobile Service Products. AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven...
  • Page 27 THIS PAGE LEFT BLANK INTENTIONALLY 128-7027 27 of 28...
  • Page 28 © 2004 Audiovox Electronics Corp., Hauppauge, NY 11788 Printed in China 128-7027 128-7027 28 of 28...

  • Page 29: Important Safety Information

    [RF EXPOSURE STATEMENT : PDHGMRS602 / TTI TECH CO., LTD.] - CAUTION! - IMPORTANT SAFETY INFORMATION Your wireless hand-held portable transceiver contains a radio frequency transmitter. When the PTT button is pushed, the transmitter sends out RF signals. The device is authorized to operate at a transmit duty factor not exceeding 50% using Ni-Mh / alkaline “AAA”...
