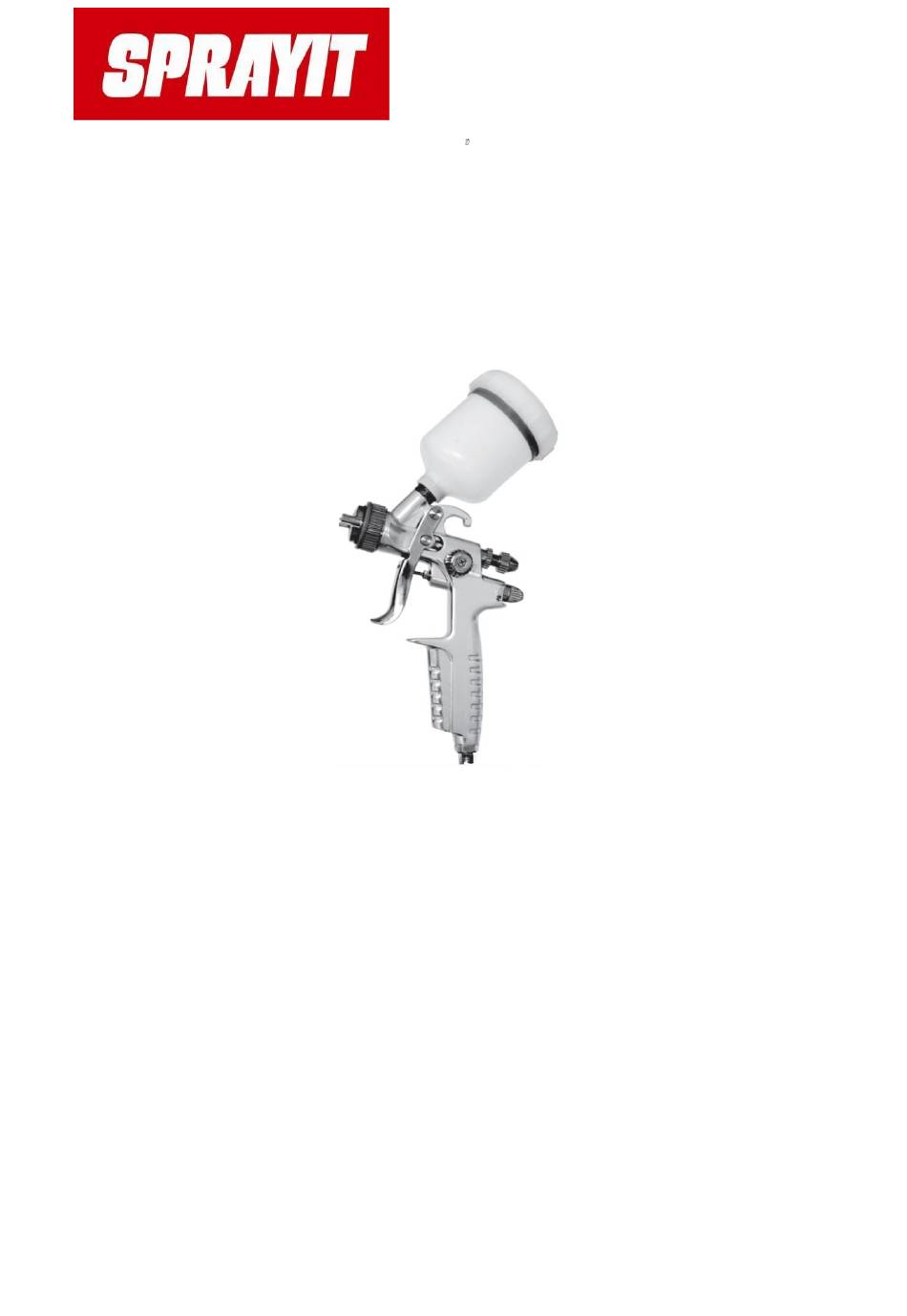

Model No. SP-34000
Low Volume Low Pressure (LVLP)
Mini Gravity Feed Forged Aluminum Spray Gun
TABLE OF CONTENTS:
1. Description
2. Specification and Technical Data
3. Important Safety Instruction
4. Instructions for Operation
5. Maintenance/Storing
6. Troubleshooting/Repairs
7. Parts List
8. Warranty Information
- 1 -
Advertisement
Table of Contents
Related Manuals for Sprayit SP-34000
Summary of Contents for Sprayit SP-34000
- Page 1 Model No. SP-34000 Low Volume Low Pressure (LVLP) Mini Gravity Feed Forged Aluminum Spray Gun TABLE OF CONTENTS: 1. Description 2. Specification and Technical Data 3. Important Safety Instruction 4. Instructions for Operation 5. Maintenance/Storing 6. Troubleshooting/Repairs 7. Parts List 8.
- Page 2 1. Description The SPRAYIT SP-34000 LVLP Mini Gravity Feed Forged Aluminum Spray Gun is designed with the professional in mind. The Low Volume Low Pressure feature allows for more control with less overspray and waste. The LVLP feature requires less air volume allowing you to use with a smaller portable air compressor.
- Page 3 3. Important Safety Instructions 1. Toxic vapors produced by spraying certain materials can create intoxication and serious damage to your health. Always wear safety glasses, gloves and respirator to prevent toxic vapor hazard and solvent coming into contact with your noise, eyes or skin. (See fig 1) 2.
- Page 4 B. Adjustments The desired pattern, volume of fluid output and fine atomization can easily be obtained by regulating the Pattern Adjusting Knob, Fluid Adjusting Knob and Air Adjusting Knob. PATTERN ADJUSTMENT: Turning Pattern Adjusting Knob to the right until tight will make spray pattern round, or turning left make spray pattern ellipse.
- Page 5 Storing When not using spray gun, turn the fluid adjustment knob counter-clockwise to open which will reduce spring tension on needle fluid tip. Spray gun MUST BE well cleaned and lightly lubricated 6. Trouble Shooting Symptom Problems Solution Fluttering or 1.
- Page 6 7. Parts List Note: If you need parts of this model, contact us or the distributor where you bought this product. - 6 -...
- Page 7 8. Warranty Disclaimers and Limitations of Remedies This warranty gives you specific legal right, and you may also have other rights which may vary from State to State. Disclaimer of other Warranties To the fullest extent permitted by applicable law, this limited warranty is exclusive and expressly in lieu of any and all other warranties, including, without limitation, any implied warranties of merchantability or fitness for a particular purpose or any other implied warranties that may arise from the course of dealing or usage of the trade.
