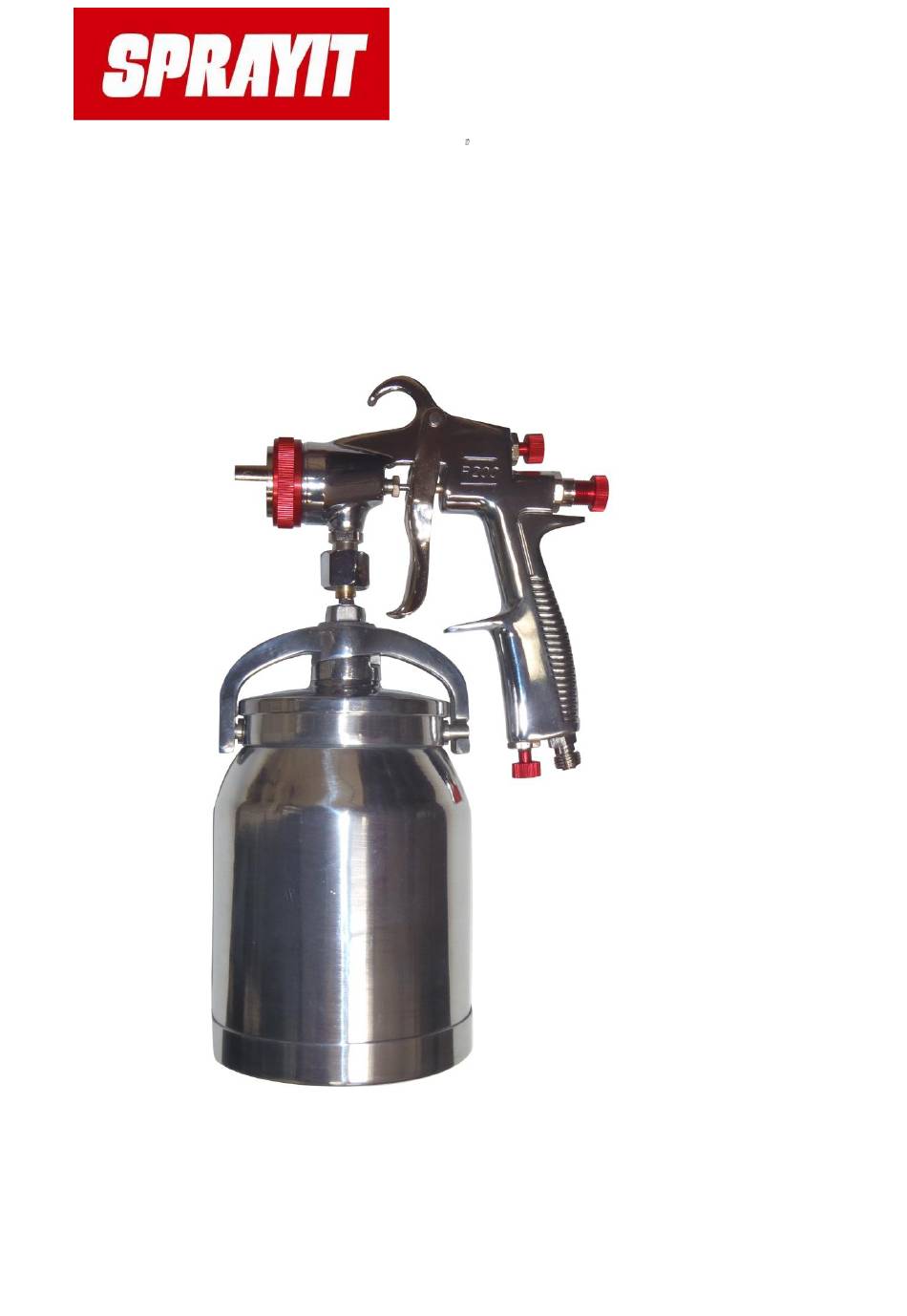

- Page 1 Model No. SP-31000 Low Volume Low Pressure (LVLP) Siphon Feed Spray Gun - 1 -...
- Page 2 8. Warranty Information 1. Description The SPRAYIT SP-31000 LVLP Siphon Feed Spray Gun can be used for variety of different applications such as Automotive, Industrial, Marine and Wood Working. The LVLP features require less air allowing you to use a smaller air compressor. Using the SPRAYIT SP-31000 reduces overspray and allows you to spray larger surfaces without having to stop.
- Page 3 3. Important Safety Instructions 1. Toxic vapors produced by spraying certain materials can create intoxication and serious damage to your health. Always wear safety glasses, gloves and respirator to prevent toxic vapor hazard and solvent coming into contact with your noise, eyes or skin. (See fig 1) 图表...
- Page 4 Adjustment The desired pattern, volume of fluid output and fine atomization can easily be obtained by regulating the Pattern Adjusting Knob, Fluid Adjusting Knob and Air Adjusting Knob. PATTERN ADJUSTMENT: Turning Pattern Adjusting Knob to the right until tight will make spray pattern round, or turning left make spray pattern ellipse.
- Page 5 WARNING: NEVER USE METAL OR OTHER OBJECTS THAT COULD DAMAGE THE HOLES IN THE NOZZLE AND CAP. NEVER IMMERSE THE SPRAY GUN COMPLETELY IN SOLVENT. NEVER USE COMPONENTS OR PARTS THAT ARE NOT MANUFACTURER ORIGINALS. Storing When not using spray gun, turn the fluid adjustment knob counter-clockwise to open which will reduce spring tension on needle fluid tip.
- Page 6 6. Trouble Shooting Symptom Problems Solution Fluttering or 1. Material level too low. 1. Add material into container. spitting 2. Container tipped too far. 2. Hold more upright. 3. Loose fluid inlet connection. 3. Tighten. 4. Loose or damaged fluid tip/seat. 4.
- Page 7 7. Parts List Description Description Description Air Adj. Screw Needle Housing Washer Air Adj. Knob Washer O-ring(3.15*1.8) O-ring(4.5*1.2) Air Cap Washer Washer Washer Atomization Air Valve Spring Washer Paint Inlet Nozzle Snap Retainer Spring core Air Inlet Valve pole Switch spring Air Inlet Joint Snap Retainer Hanger...
- Page 8 8. Warranty Disclaimers and Limitations of Remedies This warranty gives you specific legal right, and you may also have other rights which may vary from State to State. Disclaimer of other Warranties To the fullest extent permitted by applicable law, this limited warranty is exclusive and expressly in lieu of any and all other warranties, including, without limitation, any implied warranties of merchantability or fitness for a particular purpose or any other implied warranties that may arise from the course of dealing or usage of the trade.
