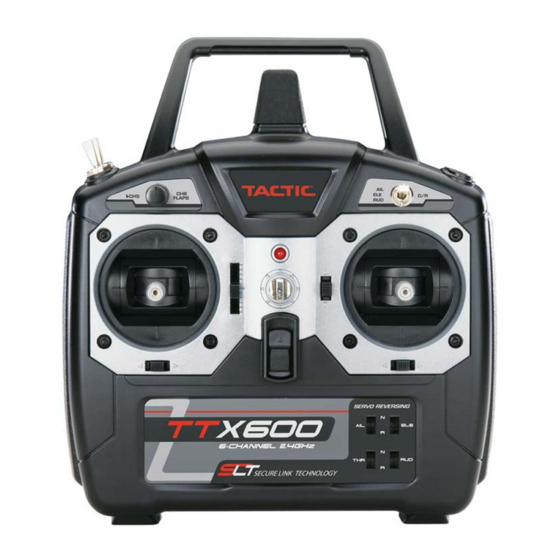

2.4GHz 6-Channel Spread Spectrum Radio
The Tactic TTX600 airplane radio system uses an advanced 2.4GHz spread
spectrum technology to prevent unwanted outside interference from interrupting
control of the model, ensuring error-free fl ying and eliminating the need to pull
frequency pins before every fl ight. Tactic 2.4GHz transmitters and receivers are not
compatible with other brands of 2.4GHz equipment.
For safe operation and best results, it's strongly recommended to
read this manual in its entirety before use! Also read and understand
the instructions included with the model. Damage resulting from
misuse or modifi cation will void your warranty.

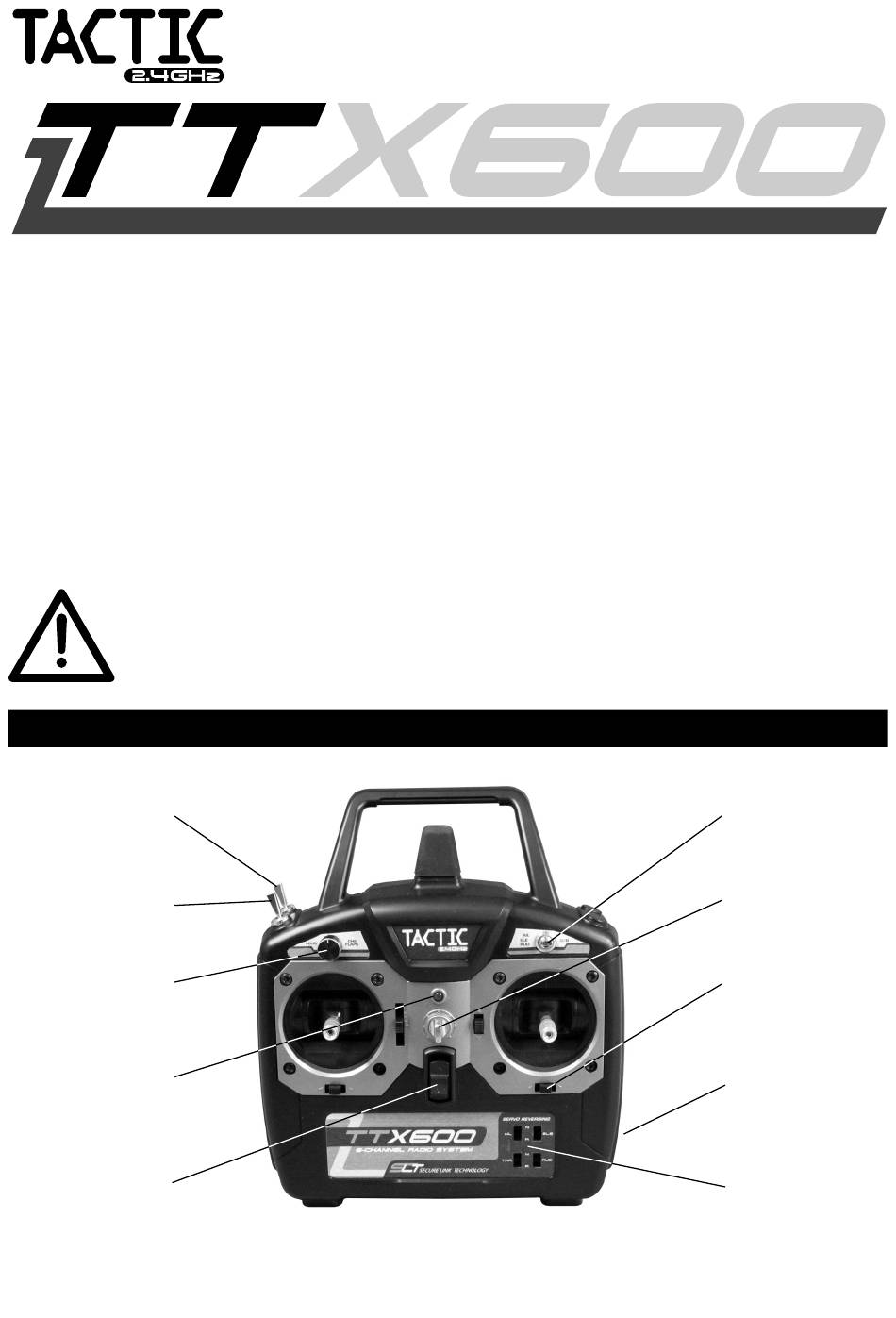

FEATURES
Trainer
Switch
CH5 Switch
CH6 Dial
LED Power
Indicator
Power
Switch
● Ball-bearing gimbals
● Dual rates for aileron, elevator and rudder
● Transmitter binds to multiple Tactic 2.4GHz receivers ● Power status LED & built-in charge jack
™
INSTRUCTION MANUAL
● Built-in failsafe & wireless trainer function
● Analog & digital trims with servo reversing
D/R Switch
Neck Strap
Eyelet
Trim
Lever
Charge
Jack
Reversing
Switches
Advertisement
Table of Contents
Related Manuals for Tactic TTX600
Summary of Contents for Tactic TTX600
- Page 1 ● Ball-bearing gimbals ● Built-in failsafe & wireless trainer function ● Dual rates for aileron, elevator and rudder ● Analog & digital trims with servo reversing ● Transmitter binds to multiple Tactic 2.4GHz receivers ● Power status LED & built-in charge jack...
-
Page 2: Power Switch, Led, And Low Battery Alarm
TTX600 TRANSMITTER ( Tx ) The TTX600 airplane transmitter is available in either a “Mode 2” confi guration with throttle on the left and elevator on the right, or “Mode 1” confi guration with throttle on the right and elevator on the left. Mode 2 radios are most commonly used in the U.S., whereas Mode 1 radios are popular in other countries. - Page 3 Tx should have adequate power for fl ight when the LED is on constantly. Anytime the LED begins to fl ash, accompanied by the sounding of an audible tone, the Tx battery voltage has dropped too low and operation of the model should NOT be attempted! WARNING! Never operate an R/C model with weak Tx batteries! Reduced operational range and/or possible loss of control of the...
-
Page 4: Reversing Switches
left. When using the rudder in conjunction with the ailerons, the airplane’s nose can point into a turn (instead of pointing up and “skidding” through the turn), allowing the airplane to perform tighter, more coordinated turns. RETRACTABLE LANDING GEAR (CH5) Channel 5 offers non-proportional control of a servo, and is typically used to control retractable landing gear. - Page 5 WARNING!! Do NOT attempt to recharge alkaline batteries! The charge jack should ONLY be used if rechargeable cells are used in the transmitter. The TTX600 includes a built-in charge jack for convenient recharging of NiCd or ® NiMH batteries, and is compatible with charge leads designed for Futaba brand ®...
-
Page 6: Trainer Function
fi re!! TRAINER FUNCTION The TTX600 Tx includes a built-in wireless trainer function – no trainer cable required! This trainer system connects a teacher’s Tactic Tx to a student’s Tactic Tx by wireless connection. - Page 7 ELEVON & V-TAIL MIXING FUNCTIONS The TTX600 includes elevon and V-tail mixing functions, which can be turned on or off. “Elevon” control consists of a mixture between the elevator and aileron channels, and is useful for certain types of aircraft (such as a fl ying wing). “V-tail” control consists of a mixture between the elevator and rudder channels and is useful for aircraft which have a V-tail.
-
Page 8: Receiver (Rx)
4. To cancel V-tail mixing and activate elevon mixing, turn off the transmitter and repeat the above procedure. When the fl ashing LED is accompanied by three audible tones the elevon mixing will be active. Aileron Function Elevon Mixing Elevator Function 5. - Page 9 Additional Tactic TR624 receivers can be purchased from your local retailer (part number TACL0624) to work with this TTX600 transmitter. SERVOS Center the trims on the Tx. Mount the servos inside the model, and connect the linkages to the servo using an appropriate length servo arm.
-
Page 10: Electronic Speed Control (Esc)
A switch harness and 4-cell battery holder are included with the TTX600 radio system. Refer to the model’s instructions for the optimum location to mount the battery, Rx, and switch harness for optimum weight distribution in the model. -
Page 11: Failsafe Function
1. Turn on the Tx. 2. Apply power to the Rx. 3. If the Rx LED fl ashes once and then stays on, the Rx is already bound to the Tx and you can skip to the next section. Otherwise, insert a small diameter screwdriver through the hole marked “BIND”... -
Page 12: System Check And Operation
SYSTEM CHECK AND OPERATION WARNING! During all pre-fl ight preparations with the aircraft on the ground, make sure the throttle stick remains at the minimum position and do not stand the Tx upright on the ground. Carefully lay the Tx on its back on the ground to prevent it from falling over and possibly dislodging the throttle stick from the low position which would create a safety hazard. -
Page 13: Flying The Aircraft
8. Anytime power is to be removed from the radio system, it’s important to shut down power in the aircraft fi rst. Otherwise, the aircraft could become out of control and cause a safety hazard! Move the throttle stick and throttle trim lever to minimum position to stop the glow engine or shut down the ESC. - Page 14 The AMA’s Offi cial 2009 Safety Code includes the following regarding the use of model aircraft: 2009 OFFICIAL ACADEMY OF MODEL AERONAUTICS NATIONAL MODEL AIRCRAFT SAFETY CODE Effective January 1, 2006 GENERAL 1. A model aircraft shall be defined as a non-human-carrying device capable of sustained flight in the atmosphere.
-
Page 15: Radio Control
10. I will not operate my model aircraft while using any drug which could adversely affect my ability to safely control my model aircraft. 11. Children under six (6) years old are only allowed on a flight line or in a flight area as a pilot or while under flight instruction. -
Page 16: Free Flight
8. Under no circumstances may a pilot or other person touch a model aircraft in fl ight while it is still under power, except to divert it from striking an individual. 9. Radio-controlled night fl ying is limited to low-performance model aircraft (less than 100 mph). -
Page 17: Batteries And Chargers
HCAM6445 LiFeSource 6.6V 3200 10C Rx Battery HCAP0290 Quick Field Charger MkII TACP1000 Tactic NiMH Conv. Kit – 8 “AA” NiMHs, 110V Charger ELECTRONIC SPEED CONTROLS GPMM1800 ElectriFly Silver Series SS8 Brushless 8 Amp ESC GPMM1810 ElectriFly Silver Series SS12 Brushless 12 Amp ESC... -
Page 18: Specifications
Built-in non-removable Charge jack Built-in (Futaba ® compatible, for use with optional NiCd or NiMH cells) Trainer function Wireless (compatible with Tactic brand transmitters only) Optional mixes Elevon, V-Tail Dual rates 100/60 % for aileron/elevator/rudder Channel 5 Non-proportional on/off Channel 6... -
Page 19: Important Warnings And Precautions
IMPORTANT WARNINGS AND PRECAUTIONS ● NEVER allow water or moisture to make contact with the electronic components inside the transmitter, receiver, servos, switch harness, etc.! This could lead to failure or improper functionality of components and poor control of aircraft which could pose a safety hazard. ●... -
Page 20: Troubleshooting
Contact Hobby Services for further details. WIRELESS TRAINING FUNCTION NOT BINDING Check to see that another Tactic 2.4GHz system is not on in your area. The teacher’s and student’s transmitters were not powered in the proper sequence. Carefully follow the instructions on page 3 for proper binding and operation for training. -
Page 21: Fcc Statement
FCC STATEMENT This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions. (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. FCC Rf Radiated Exposure Statement: The equipment complies with FCC Rf radiation exposure limits set forth for an uncontrolled environment. -
Page 22: Ce Compliance Information For The European Union
Declaration of Conformity: Product: Tactic TTX600 2.4GHz 6-Channel Tx Rx Item number: TACJ2600 Equipment class: 1 Tactic TTX600 transmitter and Tactic TR624 receiver: The objects of the declaration described here are in conformity with the requirements of the specifi... - Page 23 Tactic warrants this product to be free from defects in materials and workmanship for a period of one (1) year from the date of purchase. During that period, Tactic will, at its option, repair or replace without service charge any product deemed defective due to those causes.
- Page 24 ™ ® © 2010 Hobbico, Inc. TACJ2600...
