- Page 1 WKB V6 Wireless Handheld Controller User Manual Shanghai Friendess Electronic Technology Corporation. Ltd. www.fscut.com Ver1.0...
- Page 2 WKB V6 Wireless Handheld Controller Preface Thank you for choosing our products! This manual gives a detailed introduction of WKB V6 wireless handheld controller, including product characteristics, installation and operation instructions, etc. For laser cutting software operation, please refer to the software Help documents. For other matters you can contact us directly.
-
Page 3: Table Of Contents
WKB V6 Wireless Handheld Controller Contents 1. Product Description..................... 4 1.1 Brief Introduction ....................4 1.2 Connection Diagram .................... 4 1.3 Technical Reference ..................... 5 1.4 WKB V6 Installation ................... 5 Install Steps .................... 5 1.4.1 Troubleshooting ..................8 1.4.2 2. Operation Instructions:....................9 2.1 Button Instructions .................... -
Page 4: Product Description
WKB V6 Wireless Handheld Controller 1. Product Description Brief Introduction WKB V6 is a high-performance handheld controller widely used in laser cutting application independently developed by Shanghai Friendess Electronic Technology Co., Ltd. The controller has an extensive popularity for its easy-to-use and excellent capabilities. -
Page 5: Technical Reference
Humidity:5% ~ 90% without condensation Two 1.5V dry batteries Power supply WKB V6 Installation 1.4.1 Install Steps Please wear anti-static gloves to prevent possible electrostatic damage to the product. （1） The overall dimension of WKB V6 is shown in the following figure (unit: mm):... - Page 6 WKB V6 Wireless Handheld Controller Figure 1 Dimension of main body1...
- Page 7 WKB V6 Wireless Handheld Controller Figure 2 Dimension of receiver2...
-
Page 8: Troubleshooting
WKB V6 Wireless Handheld Controller (2) USB receiver extension cable Connect extension cable to PC USB port. (3) Wireless Controller Slide power switch to ON position. Press any button on handheld controller, green LED lights on. (4) Open laser cutting software and press button on WKB, machine will execute the command function. -
Page 9: Operation Instructions

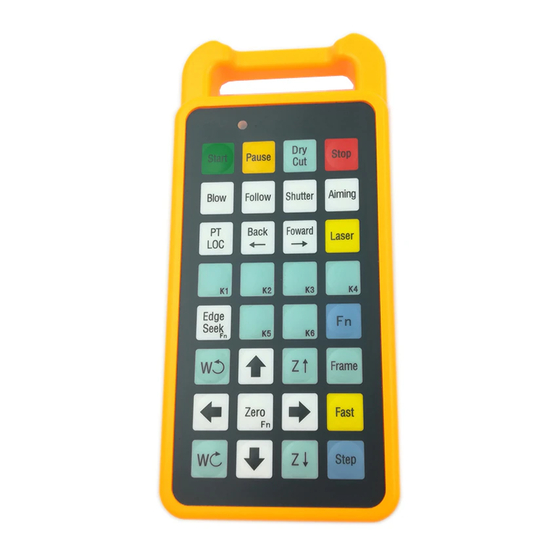

WKB V6 handheld controller has 1 power switch, 32 function buttons and 1 status indicator. Product image shown below: Button Instructions There are 32 buttons on WKB V6 in total, of which 26 buttons are with dedicated function, 6 buttons are with customized function. 2.1.1... - Page 10 WKB V6 Wireless Handheld Controller Press the button to run the machining path with laser off. Press the button to stop machining process and return to start position. Press the button to blow gas; press again turn off gas. Press the button laser head will follow to plate and keep a pre-set distance with plate surface;...
- Page 11 WKB V6 Wireless Handheld Controller User-defined button User-defined button User-defined button User-defined button User-defined button User-defined button Press the button will start 'find plate edge' function. For a composite-function button you have to press it with Fn button together. Clockwise rotation...
- Page 12 WKB V6 Wireless Handheld Controller Move forward Laser head move upward. Press the button machine will run a rectangle path framing the cutting area according current graph. Move left Press the button machine will return to graph zero point. Move right Press the button together with direction button machine will move in pre-set 'Jog high speed'.
-
Page 13: User-Defined Button
WKB V6 Wireless Handheld Controller 2.1.2 User-defined Button WKB V6 has 6 custom buttons for user to define function required. 2.1.3 Status Indicator WKB V6 wireless handheld controller has one status indicator. It serves two functions: the green light indicates button pressed; red light indicates batteries run out.
