Legacy Classic Kids Madison 9500 Assembly Instruction

Assembly Instruction
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small parts that may have come loose
inside the carton during shipment.
Caution:
(1) These parts are cumbersome and heavy. This product can best be assembled with the assistance of one or more persons
in order to prevent personal injury and to insure parts are not damaged during the assembly process.
(2) To prevent damage to your floor or carpet, please check the bottom of each piece of furniture for stain residue and rough
surfaces and also check for staples or nails left after removing the packaging material. The manufacturer will not be held responsible if
preventative steps are not taken prior to installation.

PARTS LIST:

Description Q'TY
Front Panel (A) 1 PC
Back Panel (B) 1 PC
Side Panel (C) 2 PC
Bottom Side Panel(D) 2 Pcs

Assembly Procedures:

1. Lay out all the parts and hardware. Make sure the quantity of each is correct.

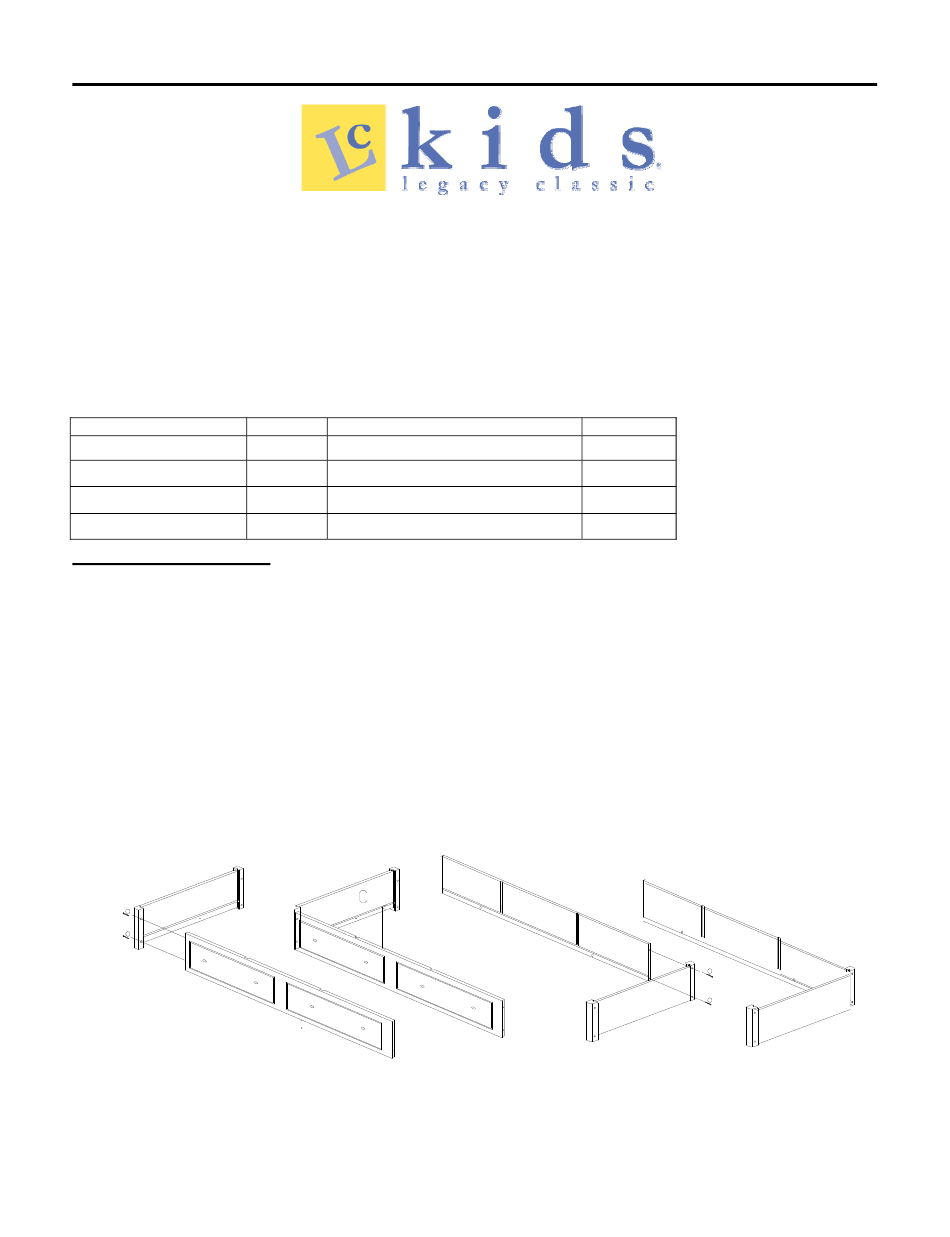

2. See Figure 1& 2, connect four panels together. Front Panel (A), Side Panel (C), Back Panel (B) by using the long bolts (1).
3. See Figure 3, turn the whole unit upside down. Attach two Cross Rails (F) using Lock washer (4), flat washer (3), Bolts (2) to the
cleats of front and back panel, and tighten with Spanner (5).
4. Install the Swivel Casters (6) and Flat Washers (8) into block of Front (A) and Back panel (B) and use the Wrench (7) to tighten
them.
5. See Figure 4: Turn the unit right side up and insert three bottom panels (D, E)
6. See Figure 5: And then insert two Divide panel (G) along the scores (for use as a storage drawer) or insert trundle size mattress
(Maximum size 38"*73"*8"H) for use as trundle bed.
7.
See Figure 6: push the whole unit under the bed.
C
1
1
Description
Bottom Center Panel(E)
Cross rails (F)
Divide Panel (G)
Hardware List (see below)
A
A
Figure 1
Page 1 of 2
9500 Trundle/Storage Drawer
Q'TY
1 Pcs
2 Pcs
2 Pcs
B
1
C
1
Figure 2
B
C
