Summary of Contents for UNITED UPC-8027

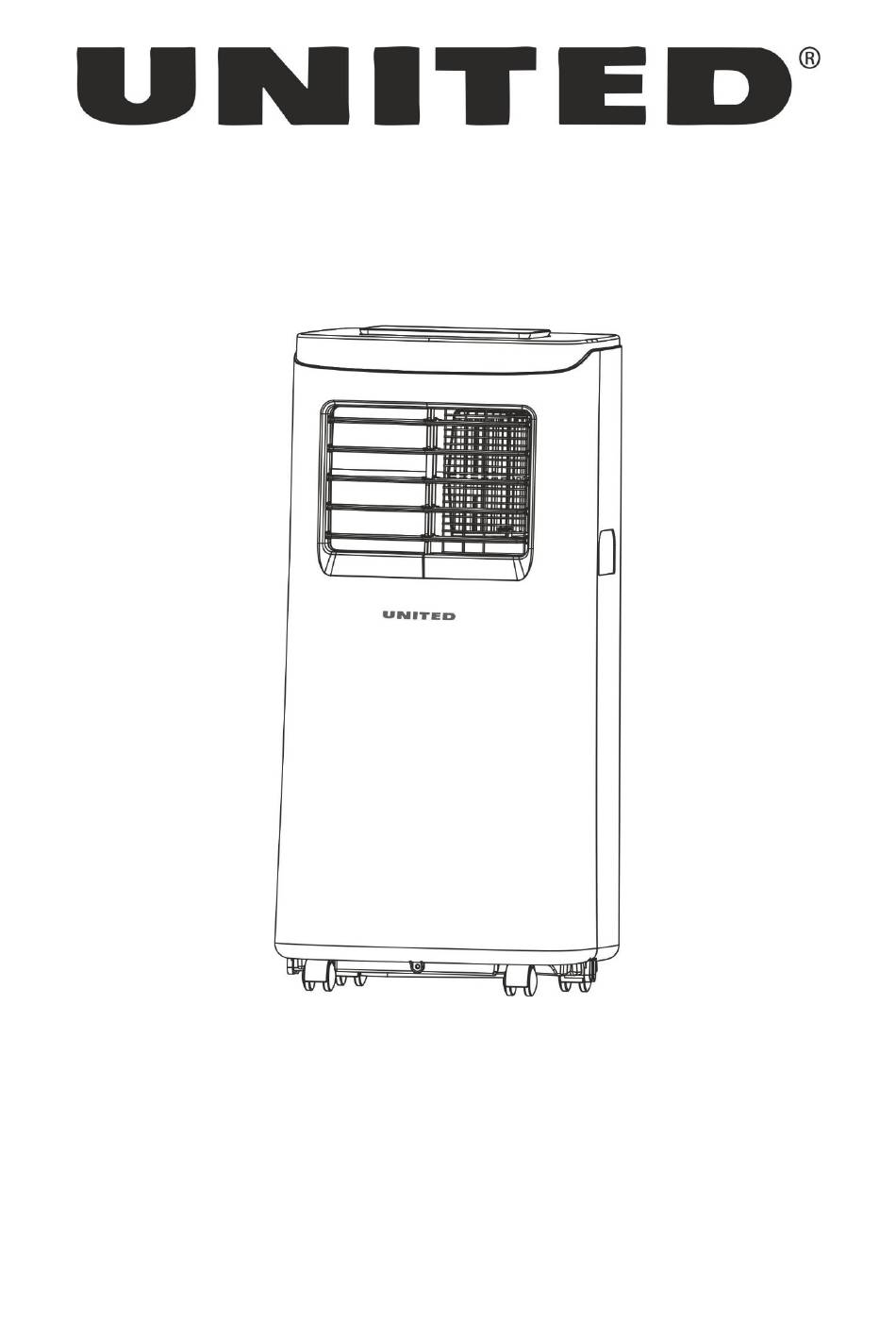

- Page 1 INSTRUCTIONS MANUAL UPC-8027 PORTABLE AIR CONDITIONER Read and save these instructions for future reference...
-
Page 2: Table Of Contents
Content I. Notes II. Features and Components III. Installation and Adjustment IV. Control Setting V. Drainage Instructions VI. Maintenance VII. Troubleshooting VIII. Appendix Thank you for choosing the luxurious and elegant mobile air conditioning. Please keep the manual for later review, and read the manual carefully before use. -
Page 3: Notes
I. Notes Notes: *The air conditioning is only suitable for indoor use, and is not suitable for other applications. *Follow local grid interconnection rules while installing the air conditioning and ensure that it is properly grounded. If you have any question on electrical installation, follow the instructions of the manufacturer, and if necessary, ask a professional electrician to install it. -
Page 4: Features And Components
* The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 5: Installation And Adjustment
Front Housing EVA Filter Handle Continuous Drainage Hole Air Vent Rear Housing CON Filter Drainage Hole Exhaust Pipe Assembly Window Sealing Plate Assembly III. Installation and Adjustment 1. Installation: Warning: before using the mobile air conditioning, keep it upright for at least two hours. - Page 6 Fig.2 Fig.3 Fig.1 1.2 Install the window sealing plate assembly 1) Half open the window, and mount the window sealing plate assembly to the window (as shown in Fig.2 and Fig.3); the assembly can be placed in horizontal and vertical direction.
-
Page 7: Control Setting
2) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of the window sealing plate assembly (as shown in Fig.5 and Fig.6) . Notes: 1. the flat end of the exhaust pipe joints must be snapped into place. 2. - Page 8 1: When the machine is powered on for the first time, the buzzer will play power- on music, and then the machine will get into standby status. 2: Power Key: press the key to turn on and turn off the machine. In the case of power on, press the key to turn off the machine;...
- Page 9 II. Operating Instructions of the Remote Control The remote control Panel is as follows: Instructions of key operation of the high-quality remote control are as follows: 1. Power: Press the key to turn on or turn off the machine. 2. Timer: press the key to set timing.
-
Page 10: Drainage Instructions
3.2 Overflow Protection Function: When water in the water pan exceeds the warning level, the machine will automatically sound an alarm, and the "FULL" indicator light will flash. At this point, you need to move the drainage pipe connecting the machine or the water outlet to sewer or other drainage area to empty the water (details see Drainage Instructions at the end of this chapter). -
Page 11: Maintenance
4) When the water is discharged, stuff the water plug, and tighten the drainage cover. Notes: 1. Restart the machine after the water plug and drainage cover are installed, otherwise condensate water of the machine will flow to the floor or the carpet. 1. - Page 12 2. Clean the filter screen If the filter screen is clogged with dust, and the effectiveness of the air conditioning is reduced, be sure to clean the filter screen once every two weeks. 2.1: Clean the upper filter screen frame 1) Clasp the wedging block of the EVA filter screen frame with hands.
-
Page 13: Troubleshooting
VII. Troubleshooting Do not repair or disassemble the air conditioning by yourself. Unqualified repair will lead to failure of the warranty card, and may cause damage to users or their properties. Problems Reasons Solutions Turn it on after connecting it to a socket with There is no electricity. -
Page 14: Appendix
Batteries are dead. Replace batteries. Displays 'E1'. pipe temperature sensor Check the pipe temperature sensor and related abnormal. circuitry. Displays 'E2' The room temperature sensor is Check the room temperature sensor and abnormal. related circuitry. Note: If problems not listed in the table occur or recommended solutions do not work, please contact the professional service organization. - Page 15 NOTICE ABOUT RECYCLING Your product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
