PORTABLE AIR CONDITIONER
User's Manual
PAC-8026

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PAC-8026 and is the answer not in the manual?

Questions and answers

Related Manuals for UNITED PAC-8026

Summary of Contents for UNITED PAC-8026

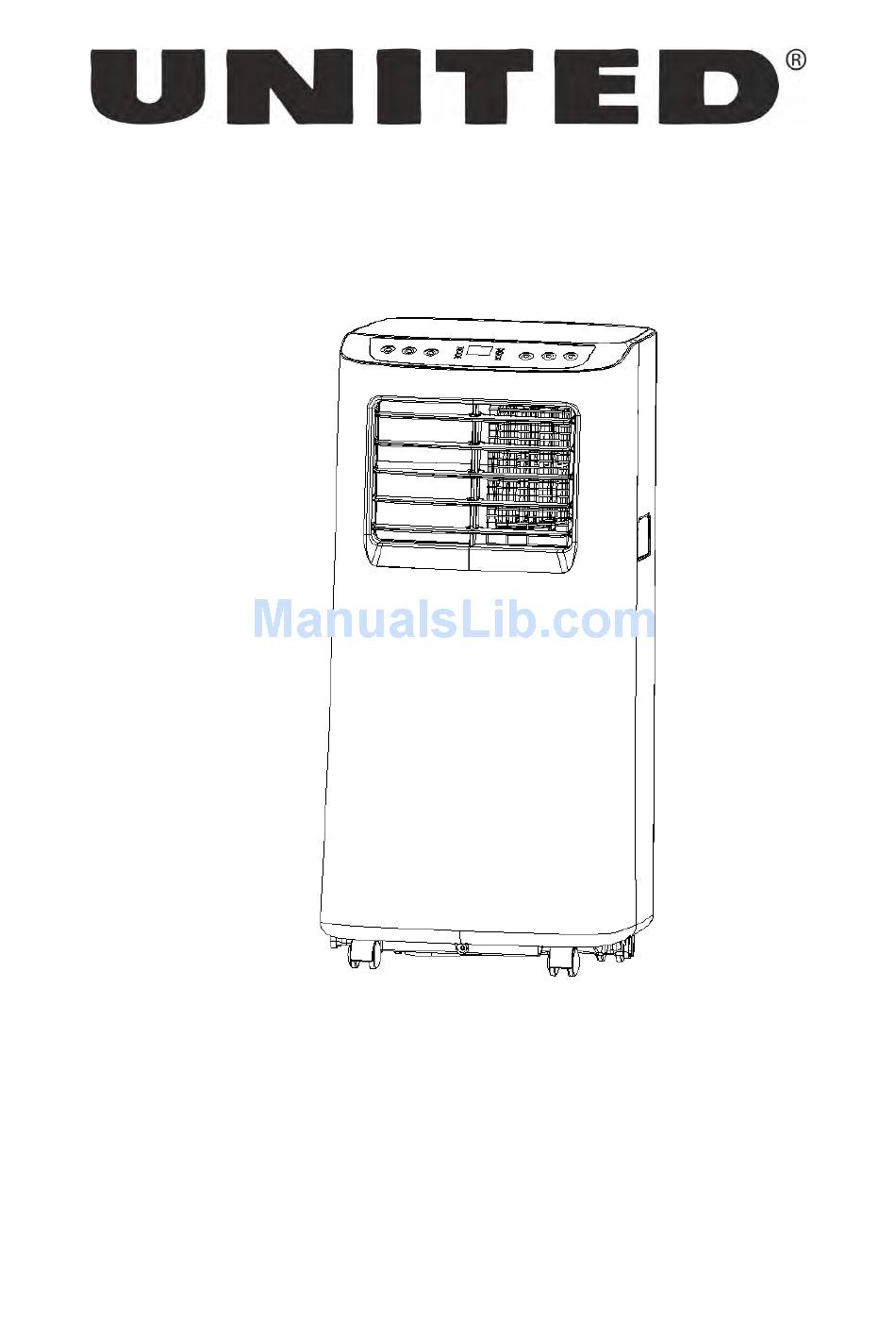

  • Page 1 PORTABLE AIR CONDITIONER User’s Manual PAC-8026...

  • Page 2: Table Of Contents

    Thank you for choosing super quality air conditioner. Please be sure to read this user’s manual carefully before using the machine. Any problem, please contact the professional service for help. Contents I. Notes II. Features and Components III. Installation and Adjustment IV.

  • Page 3: Notes

    Notes Notes: *The air conditioning is only suitable for indoor use, and is not suitable for other applications. *Follow local grid interconnection rules while installing the air conditioning and ensure that it is properly grounded. If you have any question on electrical installation, follow the instructions of the manufacturer, and if necessary, ask a professional electrician to install it.
  • Page 4 otherwise it will cause a machine malfunction or even bring harm to persons and properties. To avoid danger, if a machine failure occurs, ask the manufacturer or professionals to repair it. * Do not install and use the air conditioning in the bathroom or other humid environments.

  • Page 5: Features And Components

    Features and Components 1. Features New look, compact structure, streamlined machine, aristocratic atmosphere. With cooling, dehumidification and fan function, Continuous Water Drainage Functions. LED displays the control panel. The machine is beautiful and elegant. High-quality remote control is equipped to facilitate operation. It adopts a user-friendly remote control design.
  • Page 6 Components:...

  • Page 7: Installation And Adjustment

    Exhaust Pipe Assembly Window Sealing Plate Assembly Installation and Adjustment 1. Installation: Warning: before using the mobile air conditioning, keep it upright for at least two hours. The air conditioning can be easily moved in the room. In the moving process, ensure that the air conditioning is in the upright position and the air conditioning should be placed on a flat surface.
  • Page 8 1.2 Install the window sealing plate assembly 1) Half open the window, and mount the window sealing plate assembly to the window (as shown in Fig.2 and Fig.3); the assembly can be placed in horizontal and vertical direction. 2) Pull various components of the window sealing plate assembly open, adjust their opening distance to bring both ends of the assembly into contact with the window frame, and fix various components of the assembly.1.2 Install the window sealing plate assembly...

  • Page 9: Important Notice

    2) Elongate the exhaust pipe and snap the flat end of the exhaust pipe joints into the hole of the window sealing plate assembly (as shown in Fig.5 and Fig.6) . Notes: 1. the flat end of the exhaust pipe joints must be snapped into place. 2.

  • Page 10: Control Panel Setting

    Control Panel Setting Operating instructions: LED Control Panel is as follows: 1. Timer Key 2. Fan Speed Selection Key 3. Up Key 4. Display Window 5. Down Key 6.Mode Selection Key 7. Power Key 1: When the machine is powered on for the first time, the buzzer will play power- on music, and then the machine will get into standby status.
  • Page 11 limited by anti-cold conditions, under certain conditions, it may not run according to the set wind speed. In dehumidifying mode, pressing the key is invalid, and the fan will forcibly choose low wind speed operation. 6: Timing Key: In the case of power on, press the key to close timing; in the case of power off, press the key to open timing.
  • Page 12 II. Operating Instructions of the Remote Control The remote control Panel is as follows: Instructions of key operation of the high-quality remote control are as follows: 1. Power: Press the key to turn on or turn off the machine. 2. Timer: press the key to set timing.
  • Page 13 III. A Variety of Protection Functions 3.1 Frost Protection Function: In cooling, dehumidifying or economic power saving mode, if the temperature of the exhaust pipe is too low, the machine will automatically enter protection status; if the temperature of the exhaust pipe rises to a certain temperature, it can automatically revert to normal operation.

  • Page 14: Drainage Instructions

    Drainage Instructions 1. Manual drainage: 1) When the machine stops after the water is full, turn off the machine power and unplug the power plug. Notes: Please move the machine carefully, so as not to spill the water in the water pan at the bottom of the body.

  • Page 15: Maintenance

    2. Continuous drainage ( ) (only applicable to cooling and dehumidifying Optional mode), as shown in figure: 1) Unscrew the drainage cover, and unplug the water plug. 2) Set the drainage pipe into the water outlet. 3) Connect the drainage pipe to the bucket. Maintenance Cleaning: before cleaning and maintenance, turn off the machine and unplug the plug.
  • Page 16 figure) . 2) Put the EVA filter screen into warm water with neutral detergent (about 40 / 104 ) and dry it in the shade after rinsing clean. Remove screws Unit Storage: 1: Unscrew the drainage cover, unplug the water plug, and discharge the water in the water pan into other water containers or directly tilt the body to discharge the water into other containers.

  • Page 17: Troubleshooting

    Troubleshooting Do not repair or disassemble the air conditioning by yourself. Unqualified repair will lead to failure of the warranty card, and may cause damage to users or their properties. Problems Reasons Solutions Turn it on after connecting it to a socket with There is no electricity.

  • Page 18: Appendix

    Batteries are dead. Replace batteries. Displays 'E1'. pipe temperature sensor Check the pipe temperature sensor and related abnormal. circuitry. Displays 'E2' The room temperature sensor is Check the room temperature sensor and abnormal. related circuitry. Note: If problems not listed in the table occur or recommended solutions do not work, please contact the professional service organization.

  • Page 19: Declaration Of Conformity

    Notice about recycling Your product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. Please dispose of this equipment at your local community waste collection/recycling centre.
  • Page 20 EXCLUSIVE IMPORTER IN GREECE: Amiridis – Savidis S.A. 87A, 17 November str. 55535, Pylaia, Thessaloniki Tel .2310944944 www.united-electronics.gr...
