PiHPSDR CONTROLLER ASSEMBLY MANUAL
Please note that you will have to create a bootable MicroSD card and install it in your Pi before
proceeding with the hardware assembly, it is assumed that you know how to do this, instructions are
available on the raspberripi.org website.

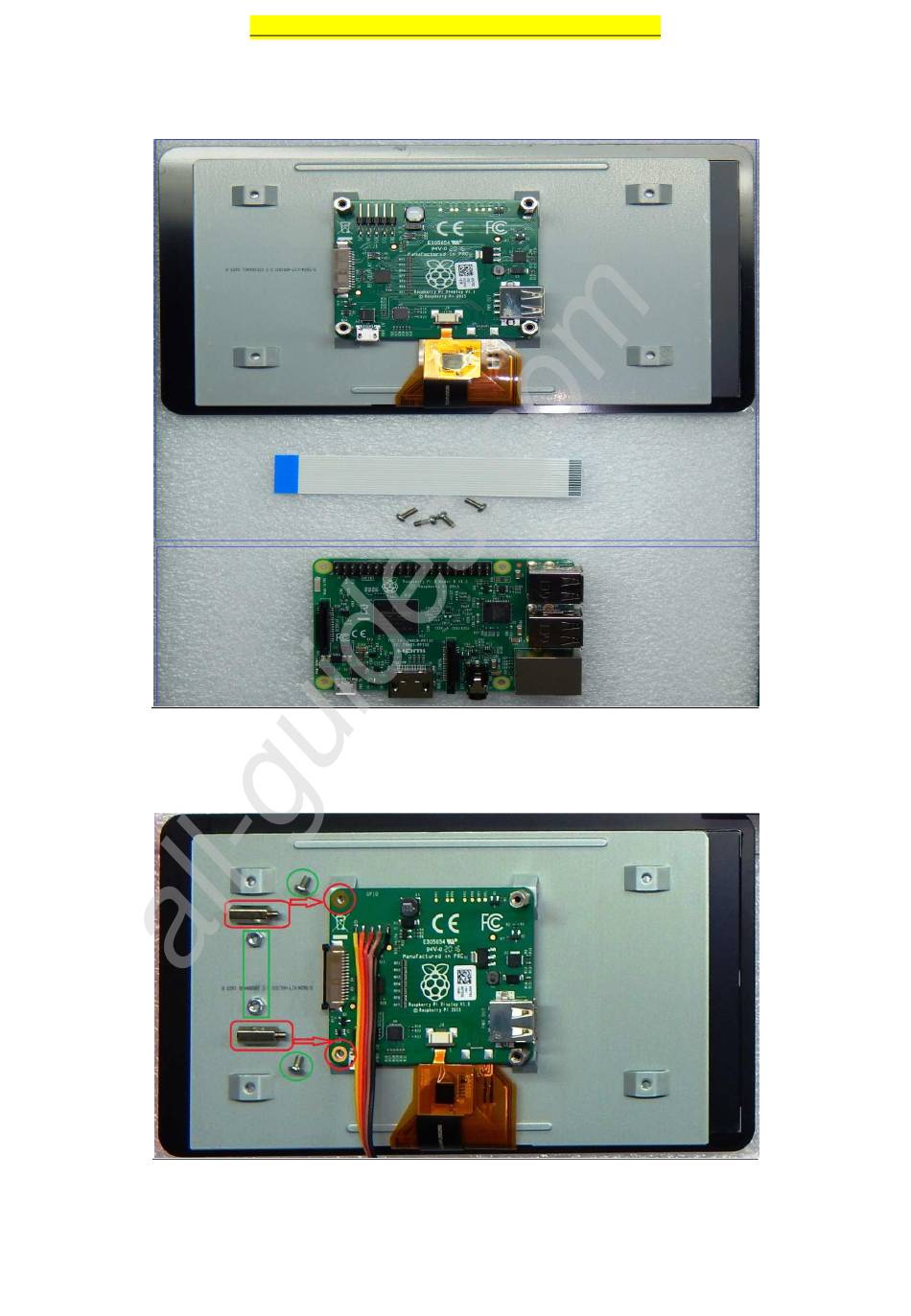

Contents of the Rpi and the official Rpi 7 inch screen kit
Please remove the two spacers as shown above and replace with the supplied screws
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Apache Labs PiHPSDR
Summary of Contents for Apache Labs PiHPSDR
- Page 1 All manuals and user guides at all-guides.com PiHPSDR CONTROLLER ASSEMBLY MANUAL Please note that you will have to create a bootable MicroSD card and install it in your Pi before proceeding with the hardware assembly, it is assumed that you know how to do this, instructions are available on the raspberripi.org website.
- Page 2 All manuals and user guides at all-guides.com De solder the 5 pin header and solder the 5 pin ribbon cable as shown above Fix the two spacers removed earlier from the Screen PCB and secure on to the Controller PCB with nuts (Supplied with the kit) as shown above...
- Page 3 All manuals and user guides at all-guides.com Your 5 pin cable assembly should look like this once soldered There are four Philips head screws supplied with the kit...
- Page 4 All manuals and user guides at all-guides.com Use the above screws to fix the screen on to the controller PCB, ensure orientation is as above...
- Page 5 All manuals and user guides at all-guides.com Once the screen and the controller pcb are secured, place the Rpi on the four spacers and screw on the four screws supplied with the Rpi kit.
- Page 6 All manuals and user guides at all-guides.com Now connect the Display flex cable as shown above to the Display PCB and the Pi...
- Page 7 All manuals and user guides at all-guides.com Connect the 40pin IDC cable to the controller PCB and Pi observing polarity (red strip) as above...
- Page 8 All manuals and user guides at all-guides.com Place the assembled Kit on the Controller back chassis as above an screw the Hex nuts...
- Page 9 All manuals and user guides at all-guides.com Remove the plastic protection film from the display...
- Page 10 All manuals and user guides at all-guides.com Place the top cover and screw on the front panel screws...
- Page 11 All manuals and user guides at all-guides.com Place the E1/E2/E3 knobs on the encoders...
- Page 12 All manuals and user guides at all-guides.com Ensure adequate spacing between the panel and knob since the knobs also function as push button switches Finally Secure the tuning knob...
- Page 13 All manuals and user guides at all-guides.com Your kit is assembled, congratulations! Power it on using the supplied cable and a 12v DC supply...
