  • Page 1 TeleObserver MR3180 Mobile hybrid digital video recorder User manual Firmware 6.1...
  • Page 2 DResearch retains the right to make amendments to the contents of the user manual without having any duty to inform third parties. Any change made to the product or its associated software not expressly confirmed by DResearch will result in the termination of the operating licence and warranty.

  • Page 3: Table Of Contents

    DResearch – User Manual TeleObserver MR3180 2011-02-03 C O N T E N T S General information about DResearch video systems ............. 5 System overview and new features in this version ................6 Scope of delivery ..........................7 Accessories & additional devices ......................7 Safety advice............................
  • Page 4 DResearch – User Manual TeleObserver MR3180 2011-02-03 Relevant comments on the daily operation ................54 Power supply and shutdown of the systems ................. 54 Hold-back time of the permanent recordings versus data privacy..........54 Shutdown behaviour of the system ....................55 4.3.1...

  • Page 5: General Information About Dresearch Video Systems

    You have made an excellent choice in acquiring this device, a top quality product from DResearch. The MR3180 is a compact digital unit for recording video sequences from analogue and digital cameras as well as other associated data (IBIS and GPS). With industrial styling and a robust nature, the device is intended for mobile and static use under the severest conditions.

  • Page 6: System Overview And New Features In This Version

    Logically combinable system detectors and allocation of defined actions And much more… A detailed overview of the possibilities of the system is given in this document and further information materials, like system description or application concepts from DResearch – request them or visit us on our website: www.DResearch.de New features in this firmware –...

  • Page 7: Scope Of Delivery

    The devices can be expanded with various accessories. For a detailed list of all the accessories offered by DResearch, please refer to the current product catalogue. For other information and ordering of accessories please contact your system integrator or our team direct.

  • Page 8: Safety Advice

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Safety advice Incorrect handling can, at its worst, lead to personal injury or destruction of the device, and/or the termination of the guarantee. Therefore please be sure to note and follow the advice below before operating the device.

  • Page 9: Warranty

    The warranty terms for materials and manufacturing faults are, unless otherwise agreed by special negotiation, set out by DResearch Fahrzeugelektronik GmbH in its General Terms and Conditions. The General Terms and Conditions are to be found in the documents supplied. No further, expressed or tacit guarantees are accepted.

  • Page 10: Scope Of Use

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Scope of use Public transport sectors Trams, suburban railways, underground railways, buses, local and long distance trains and other vehicles Distribution, logistics and transport sectors Secure cash transport, transportation of hazardous loads, trailers and storage areas, high-bay warehousing and distribution centres, etc.

  • Page 11: Temperature Range

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Ventilation and cooling Avoid installations where heat can build up. The equipment is designed to function without the need for a fault-prone fan, but adequate air circulation needs to be provided round the cooling fins.

  • Page 12: System Components And Device Features

    DResearch – User Manual TeleObserver MR3180 2011-02-03 1.10 System components and device features The complete system consists of three different modules which communicate with each other via a proprietary software data protocol which is the same irrespective of the operating system.
  • Page 13 DResearch – User Manual TeleObserver MR3180 2011-02-03 Detailed information you will find in this manual and the data sheet. System specification – an overview Hybrid recorder for recording video, audio and metadata, designed for buses, trains, trams and other vehicles, certified to e1 and EN 50155...
  • Page 14 DResearch – User Manual TeleObserver MR3180 2011-02-03 Feature Description Configurable video Recording of video sequences from up to 8 cameras (hybrid operation of recording analogue and IP cameras) in automatic generated archives (one ring, alarm and pre-alarm archive per camera).

  • Page 15: The Recording Device Mr3180 In Detail

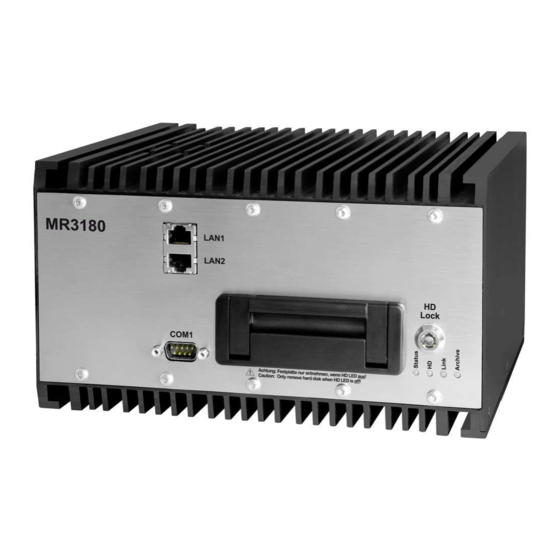

    DResearch – User Manual TeleObserver MR3180 2011-02-03 The recording device MR3180 in detail Device description The MR3180 is one part of the complete recording system and works without a fan. The housing is made from non-rusting, maintenance-free material. The data transmission and recording processes in the device are encrypted to prevent unauthorised access to the data.
  • Page 16 DResearch – User Manual TeleObserver MR3180 2011-02-03 Rear view of the MR3180 Ethernet LAN3 (IP-Video) Audio Power supply Digital I/O RS 485, IBIS, CAN Video-OUT Audio Video-IN (optional) 1 .. 2 Camera group B (analogue) 1.. 4 (analogue) COM2 Video-IN...

  • Page 17: Changing And Inserting The Removable Disk

    In MR3180 devices use only the hard disks provided and pre-formated by DResearch. Only hard disks with the same capacity should be used within each fleet. For more information and for ordering hard disks please contact the sales team (E-Mail: sales@dresearch.de).

  • Page 18: Significance Of The Status Leds

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Significance of the status LEDs On the front of the unit there are four coloured LEDs which indicate the current status of the device. At any time you can determine the current status of the device from the colour codes. We recommend that you print out the following table and keep it with your service documents.

  • Page 19: Device Interfaces

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Device interfaces 2.4.1 Analogue video inputs A1...4 and B1…4 – connection of analogue CCTV cameras The interfaces of the analogue cameras are separated into two camera groups (A and B). Up to eight...

  • Page 20: Lan 3 - Connection Of Ip Network Cameras

    DResearch – User Manual TeleObserver MR3180 2011-02-03 2.4.3 LAN 3 – Connection of IP network cameras The LAN 3 interface is executed as M12 socket. Over this you can connect an external switch, through which up to 12 IP cameras can be connected (see system graphics page 4). Video recording can be activated for up to 8 IP cameras, 4 other IP cameras can be configured to fetch their video signals to bring it up to two analogue driver monitors.

  • Page 21: Video Out 1 And 2 - Connection Of Control Monitors

    OUT which are absolutely necessary. Usually it makes sense only to set up those cameras which cover sensitive areas (vehicle entry area or rear view camera). A suitable monitor is available directly from DResearch. Please look at our current product catalogue or contact us. 2.4.4.1...

  • Page 22: Display Of Information And System Events (Osd)

    DResearch – User Manual TeleObserver MR3180 2011-02-03 2.4.4.2 Display of information and system events (OSD) Using OnScreenDisplay the recorder shows additional information in the form of symbols and texts when particular system events and alarms occur. The following information and system events are...

  • Page 23: Power Supply For The Device And Cameras

    DResearch – User Manual TeleObserver MR3180 2011-02-03 2.4.5 Power supply for the device and cameras The interface provides power for the device itself and makes supply voltage available for further external devices (12V DC; e.g. analogue cameras). The device is switched on and off via a connection through the vehicle’s ignition switch.

  • Page 24: Com 1 - Serial Data Transmission And Gps Connection

    GPS receiver connection Note that the only navigation systems and GPS receivers supported are those recommended by DResearch. The GPS receiver can be connected directly to the COM1 port. The port parameters can be configured in SystemManagement GPS. (See Chapter 3, Configuration.) Use as service interface The service interface allows analysis of the device using a terminal.

  • Page 25: The Audio Interface

    DResearch – User Manual TeleObserver MR3180 2011-02-03 2.4.9 The audio interface Use the audio adapter cable which is provided in the accessories to connect external audio devices to the recorder. The interface (D-SUB 9, female) is wired as follows: Interface...

  • Page 26: Gpio-Interface

    The GPIO interface (HD-SUB 25, female) provides for the connection of alarm detectors. For this use the GPIO connector set which can be obtained as an accessory from your system integrator or DResearch. Up to 6 sensors (digital inputs, optocoupler inputs) and 4 digital switch outputs (relays) can be connected.

  • Page 27: Ext. Devices" Interface - Ibis, Can And Rs485

    DResearch – User Manual TeleObserver MR3180 2011-02-03 2.4.12 “Ext. Devices“ Interface – IBIS, CAN and RS485 External Devices interface - Pinout The (HD-SUB-25, male) socket marked Ext. Devices on the Pin 1 … …13 recorder is an RS485 interface. This is shown as COM4* in the setup configuration.

  • Page 28: Device Configuration - The Main Program Cms And Its Menu

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Device Configuration - The main program CMS and its menu To set up a connection to the device, an outstation with the name of your choice (e.g. MR3180_001) and the IP address of the MR3180 (Default: 192.168.0.1) has to be set up in the CMS module SystemMangement Outstaion.

  • Page 29: Systemmanagement -Module For Device Configuration

    DResearch – User Manual TeleObserver MR3180 2011-02-03 SystemManagement –module for device configuration Function bar The individual functions are activated depending on the function call-up of the selection window. Menu and description Save Saves the setting local on the PC, not on the device.
  • Page 30 DResearch – User Manual TeleObserver MR3180 2011-02-03 The main menu The functions File, Connection, Edit, View and Info (?) are available in the SystemManagement main menu. File Save Saves all current changes. Only effective after system is initialised (menu option Initialising).

  • Page 31: The Device Configuration

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1 The device configuration device configuration loaded SystemManagement Receive. After selecting the particular device the configuration data is displayed in tree form. By selecting the individual entries on the left, the relevant dialogue box opens (on the right).
  • Page 32 DResearch – User Manual TeleObserver MR3180 2011-02-03 Connections Modems Configuration of modem settings and interface parameters. Configuration of GPS properties and the interface parameters. Activation of the rail media coupler (if available). Network Configuration of IP addresses from the device and the gateway.

  • Page 33: System :: Basic Settings

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.1 System :: Basic settings Once a hard disk is put in a different MR3180 unit all the data on the hard disk will be automatically deleted after 30 seconds, if this is set up in the device configuration. (It is the standard setting under Archive settings action when exchanging hard disks).
  • Page 34 DResearch – User Manual TeleObserver MR3180 2011-02-03 Parameters Description General settings Shut down device if If this option is activated the device will be shut down by deactivating the ignition ignition is deactivated or the other shut down signal. Exception: Existing connections between the PC and the system (through WLAN, Ethernet) will be switched off by the system after cancelling the connection.
  • Page 35 DResearch – User Manual TeleObserver MR3180 2011-02-03 Delete permanent Sets the time value after which the data in the ring archives have to be deleted. recordings after This calendrical value represents the maximum storage duration of the data in the ring archives.

  • Page 36: System :: Time

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.2 System :: Time Set your time zone and make the settings for automatic time synchronization in this dialog. Caution: If you reset the time of the MR3140 unit backwards, and you then save the new...

  • Page 37: System :: Passwords

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.3 System :: Passwords The length of all passwords and access codes has to be a minimum of 6 and a maximum of 16 characters. There are no passwords in the default factory setting. The codes and passwords are reset when the works settings are reset (see section on updating the device).

  • Page 38: System :: Version

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.4 System :: Version This dialogue box shows the current information of the unit in use. No changes can be made. You should also print out this information keep with your documentation. You will need this data for servicing.
  • Page 39 DResearch – User Manual TeleObserver MR3180 2011-02-03 In this dialogue box you determine the cameras which are to be activated for recording and/or for the display on a monitor. To determine the settings select one of the cameras and change the values to suit your requirements.
  • Page 40 DResearch – User Manual TeleObserver MR3180 2011-02-03 Brightness Enter a brightness value for the selected camera. Contrast Here set the contrast for the recordings. Saturation Here set the value for saturation. Quality Select the quality for the recordings from the activated camera.

  • Page 41: Devices :: Ip-Cameras

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.6 Devices :: IP-Cameras There are differences in the use of digital and analogue cameras. Please note the following features: At first each digital camera has to be set under the dialog ‚IP-Camera’.
  • Page 42 DResearch – User Manual TeleObserver MR3180 2011-02-03 Name Description List of IP cameras The list contains all cameras as well as basic settings. Detailed configuration of IP cameras is done in their own setup. camera specific settings Camera name Give the selected camera a name (max. 50 characters).

  • Page 43: Devices :: Detectors

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.7 Devices :: Detectors When a detector is triggered the MR3180 unit can respond specifically to particular (predetermined) events (according to preset actions). Up to 8 external detectors can be linked to the unit’s digital inputs IN1 to IN8.

  • Page 44: Devices :: Relays

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.8 Devices :: Relays Relays which are to be switched by the recorder can be connected to its digital outputs. Settings have not been entered for each relay in the factory. Change these to suit your requirements by selecting each entry.

  • Page 45: Connectors :: Gps

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.10 Connectors :: GPS The device supports the connection of an external GPS receiver for receiving GPS data. This can be connected either via the COM1 port or the Ext. Devices (COM4 = RS485) port. This has to be configured in the SystemManagement module as follows: In the options on the main window select the Connections –...

  • Page 46: Connectors :: Network

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.11 Connectors :: Network The network configuration of the device is determined in this dialogue box. Changes to the settings can only be made by authorised specialists with thorough network knowledge. Incorrect settings may mean that the device can no longer be reached! Standard IP: 192.168.0.1 (and 192.168.0.2)

  • Page 47: Video Output :: Multiview

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.12 Video output :: MultiView Store new viewing formats here by pressing the NEW button configure display as you want. Several types of views are available for selection: Quad - 4 cameras Nona - 9 cameras...

  • Page 48: Activations

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.14 Activations From version 6 activations can be defined and configured. The available detectors are up to the third level by a logical AND operator (incl. the state defined for the detector) combinable. This feature...
  • Page 49 DResearch – User Manual TeleObserver MR3180 2011-02-03 Field Description List Listing of the detectors and corresponding defined actions. Configure activation Selection detector Available detectors (system start, digital inputs, motion detectors of the cameras) to which an activation can be allocated.

  • Page 50: System Events

    DResearch – User Manual TeleObserver MR3180 2011-02-03 3.1.1.15 System events System events are actions or status changes which are activated by the device or other components connected to it. All system events are displayed on the control monitor. Also, when an event occurs a blue popup window appears for a short time.
  • Page 51 DResearch – User Manual TeleObserver MR3180 2011-02-03 Field Description Indicate alarm If alarm video sequences are to be recorded from at least one camera, select the recordings by relays relay to be activated. The relay remains activated as long as there is active alarm recording including during the post-alarm period.
  • Page 52 DResearch – User Manual TeleObserver MR3180 2011-02-03 System event Description Alarm archives full The unit’s archives are 100% full. No more alarm data can be stored. If necessary archive the data and then release the archive. Alarm archives 80% The unit’s archives are 80% full.

  • Page 53: The Web Interface Of The System

    Configuration of IP address, subnet mask and gateway Firmware Update Possibility to update the system firmware. The corresponding update packages are provided by DResearch or your system integrator. Reset Here you restart the system with the actual settings. In the case of serious system errors the system can be reset to the configuration,...

  • Page 54: Relevant Comments On The Daily Operation

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Relevant comments on the daily operation The following relates to the use of the system in everyday life. Please note, that failure to comply with the instructions can really shorten the life of the system and/or individual components. In the worst case it can lead to irreparable damage, which is not covered by the warranty or guarantee.

  • Page 55: Shutdown Behaviour Of The System

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Shutdown behaviour of the system 4.3.1 Shutdown behaviour during permanent and alarm recordings The device distinguishes between two sources for a shutdown requirement (trigger for controlled shut- down): Shutdown requirement through ignition (shut down signal) and also shutdown requirement from another source (HD lock or detector e.g.

  • Page 56: Shutdown Behaviour During Data Research

    DResearch – User Manual TeleObserver MR3180 2011-02-03 4.3.2 Shutdown behaviour during data research During a data research at the device (through connection via Ethernet and/or WLAN) the system only shuts down when all connections between device and analysing software have been finished.

  • Page 57: Overheat Protection: Temperature Shutdown Level Of The System

    – so that the system afterwards can be achieved without reconfiguring the service PC. Please note that the fallback configuration can only be defined during an update with the DResearch update tool or by loading a specific configuration file. This can be made available by the manufacturer on request.

  • Page 58: Update & Reset, Maintenance, Problem Analysis And Technical Support

    A firmware update of the system can be made through the web interface of the device or with the DResearch update tool. With the update tool offered by DResearch a MR system can be provided easy and convenient with the latest firmware.

  • Page 59: Maintenance, Cleaning And Care Of The System

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Maintenance, cleaning and care of the system You have purchased a system which works largely without maintenance. Depending on the type and kind of installation it will still require external cleaning of the unit. When doing so please follow these instructions: Clean the external case with just a soft dry cloth.

  • Page 60: Problem Analysis And Resolution

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Problem analysis and resolution A detailed listing of frequently asked questions and associated answers you will find on our website www.dresearch.de in the FAQ area. Problem LED state Root/What to do Device cannot be switched...

  • Page 61: Technical Support By The Manufacturer

    You have purchased a top quality product which generally works without servicing. The units are tested several times by DResearch in the test laboratory in order to supply you with a perfect, flawless product. If your unit suddenly does not work perfectly please first ensure that other sources of error can be definitively ruled out.

  • Page 62: Technical Data Of The Mr3180

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Technical data of the MR3180 Dimensions Dimensions (H x B x D) 132 mm x 238 mm x 251 mm Weight 4.4 kg Environmental conditions Parameter minimum maximum Temperature 0 °C +55 °C Operation (Recording) -20 °C...
  • Page 63 DResearch – User Manual TeleObserver MR3180 2011-02-03 Audio interface Audio input Connectors: D-Sub-9 socket (female) Number: Signal level (max., peak-peak): 2,8 V (+2 dBu), 0,5 V (-13 dBu) with input amplifier Input impedance: >10 kOhm Frequency response (+/-3 dB): 100 Hz … 10 kHz...

  • Page 64: Technical Drawing

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Technical drawing...

  • Page 65: Abbreviations

    DResearch – User Manual TeleObserver MR3180 2011-02-03 Abbreviations AC/DC Alternating Current/Direct Current Controller Area Network Common Intermediate Format Central Monitoring Software Central Monitoring Unit Digital Subscriber Line Electromagnetic Compatibility General Purpose Input GPIO General Purpose Input/Output Global Positioning System Hard Disk...
  • Page 66 DResearch – User Manual TeleObserver MR3180 2011-02-03 Annotations: DResearch is member of ZVEI, BHE and VDS DResearch All brand names, product names and trade names are Otto-Schmirgal-Str. 3 E-Mail: contact@dresearch.de trademarks or registered trademarks of their respective Fahrzeugelektronik 10319 Berlin, Germany http://www.dresearch.de...
