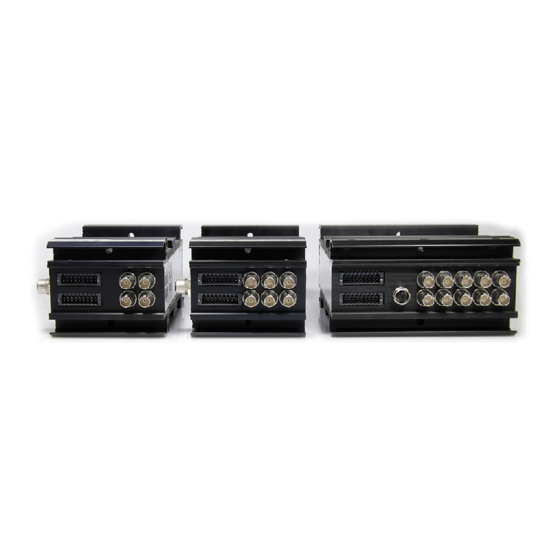

- Page 1 Video solutions Hydra MR Series Digital Video Systems MR3060-4 / MR3060-6 / MR3080-8 System Configuration Version 1.0.0...
-
Page 2: Table Of Contents
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 C O N T E N T General information........................4 Supported systems ........................ 4 Basic configuration methods ....................4 1.1.1 Offline configuration ......................5 1.1.2 Online configuration ......................5 Required accessories......................6 Internationalization –... - Page 3 DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Document Version History Version Date Information Person 1.0.0 2011-01-17 Creation Version 1.0 Peter Schüßler, PM © Copyright 2011 DResearch Fahrzeugelektronik GmbH. All rights reserved.
-
Page 4: General Information
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 General information This document describes the configuration of the HydraIP DVR. There is a brief description of the different configuration methods at the beginning, which are used to configure the systems. -
Page 5: Offline Configuration
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 1.1.1 Offline configuration NOTE: Currently, the configuration of the system is possible with a USB flash drive (offline configuration). The configuration of one or more systems through a direct network connection (online configuration) is expected to be available in April 2011. -
Page 6: Required Accessories
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Required accessories The following conditions are necessary, to configure one or more HydraIP systems: For Offline Configuration: HydraIP System(s) PC with XP, Vista or Windows 7 and a USB-Port Web browser (Mozilla Firefox Ver. 3.0 or higher, Microsoft Internet Explorer Ver. 7.0 or higher) -
Page 7: System Configuration
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 System configuration The configuration’s graphical user interface is identical for both online and offline methods, they merely differ in procedure. While there is direct access to the system through the online method, the offline method uses a USB flash drive to transfer data to the configuration PC. -
Page 8: System Configuration Through Offline Method
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 System configuration through offline method 2.1.1 Offline configuration flowchart NOTE: You will need a USB flash drive prepared as a configuration flash drive. Please make sure that the flash drive has sufficient storage capacity – minimum 2 GB. Use a USB flash drive with LED display –... -
Page 9: Down And Upload Of The Configuration Set To/From The System
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 2.1.3 Down and upload of the configuration set to/from the system Download the configuration set from the system After successfully downloading the configuration set, the process can begin on the configuration PC. -
Page 10: Launching The Configuration Application And Editing The Configuration Set
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 2.1.4 Launching the configuration application and editing the configuration set After you have downloaded the configuration set from the system, you can begin to edit it. Insert the configuration flash drive into the configuration PC and launch the configuration application on the flash... - Page 11 DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Group Description Tabs for „DVR Overview“and interface for the selected configuration set. All DVRs that have already been configured with the USB-configuration flash drive are listed in the overview (Download or Upload of a configuration set to or from the DVR). After selection of a DVR...
-
Page 12: System Configuration Through Online Method
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 System configuration through online method NOTE: Please note that the online configuration function will not be available until April 2011. Until then, all systems will have to be configured with the offline configuration method. -
Page 13: Creating A Configuration For Multiple Systems (Fleet Configuration)
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Creating a configuration for multiple systems (fleet configuration) NOTE: It is possible to configure multiple systems with the same configuration parameters through the fleet configuration option. Be aware that a uniform configuration can only be applied to systems of the same device type. - Page 14 DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Open and edit parameters. A file set will be generated automatically. The set Editing has now been created. It is ready to be uploaded to the DVR, after completion of editing.
-
Page 15: Setting The Configuration Parameters
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Setting the configuration parameters After selecting a system from the overview (offline method), followed by selection of a configuration set with the button, the configuration set (every set of a configuration can be selected for edit) is [EDIT] opened. -
Page 16: General
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 General General parameters can be set in this section. Furthermore, relevant information concerning the system will be shown at a later date. Parameter Description Any label can be chosen for the system - you can enter a logical vehicle number or DVR Label vehicle registration number. -
Page 17: Video/Audio Input
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Video/Audio input Note : Please note that there aren’t any separate profiles for alarm and ring recordings (available March 2011). Configurable cameras at the video inputs. In this illustration, the configuration of a Master/Slave system MR306-6 is opened. - Page 18 DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Parameter Recording profiles Define here a label for the profile (e.g. standard profile, high quality, etc.) Label Here you can set what frame rate is used to capture with. Frame rate Attention: The GUI allows entry of meaningless numerical values –...
-
Page 19: Recording
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Recording Archive configuration and disposal of recorded data. There is an entry for every source. Configurable digital inputs GPI for controlling the recordings. In this illustration, the configuration of a Master/Slave system MR306-6 is opened. - Page 20 DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Parameter Recordings – Definition of records The recordings are deleted after lapse of time (real time 24h = 1 day). This setting is Delete ring archives especially important for the implementation of information privacy. The data is deleted after accordingly, should the value be lower than the previous one.
-
Page 21: Video Output
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Video output Basic video output controls. The settings vary Control definition through digital depending on the selected standard output and inputs (Trigger). assigned the activation of the relaying options. priority is of utmost importance for system behaviour. - Page 22 DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Parameter Video output – Output control to monitor Here you specify the digital input, which will be used for the manual shift. Make sure to Trigger for manual set the required priority, otherwise the system will not react as expected.
-
Page 23: Gpio Settings
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 GPIO Settings Definition of digital inputs (GPI, Trigger). Slave also available for Master/Slave systems Definition of digital outputs (switch relay GPO). Slave GPO is currently not configurable. Parameter GPIO-Settings – GPI Trigger The general purpose inputs (GPI) are configurable as opener and closer. -
Page 24: Communications
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Communications Parameter Communication – Configuration IBIS vehicle bus Currently, only the communication over the IBIS vehicle bus is configurable at this point. At a later time, the configuration for data transfer and GPS-data recording will be provided in this part. -
Page 25: Error Management
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Error management Parameter Error management Output possibilities for system errors and events are the LED-Block (not freely configurable), a digital output (GPO) that can be configured as group alarm signal, the video output with monitor, as well as the IBIS-vehicle bus, providing the system is connected to the IBIS-system of the vehicle. -
Page 26: Possible Problems And How To Troubleshoot Them
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Possible problems and how to troubleshoot them Possible problems with the down and upload of the Problem Possible reasons Troubleshooting System is off/disconnected Turn off the system and retry download... -
Page 27: Possible Problems Connecting To The System
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Possible problems connecting to the system Problem Possible reasons Troubleshooting The system is turned off Turn off the system and re-establish a Connection to system connection System is currently not accessible... -
Page 28: Possible Problems While Editing A Configuration Set
DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Possible problems while editing a configuration set Problem Possible reasons Troubleshooting System is turned off Turn off the system and retry download Configuration download System indicates fatal error Try to reboot, if the system indicates an... - Page 29 DResearch GmbH – Configuration of the Hydra analogue DVR 2011-02-02 Comments: DResearch is a member of ZVEI, BHE and VDS All brand names, product names and trade names are DResearch Otto-Schmirgal-Str. 3 E-Mail: contact@dresearch.de trademarks or registered trademarks of their respective...
